DS3800HUMA1B1C

About the DS3800HUMA1B1C

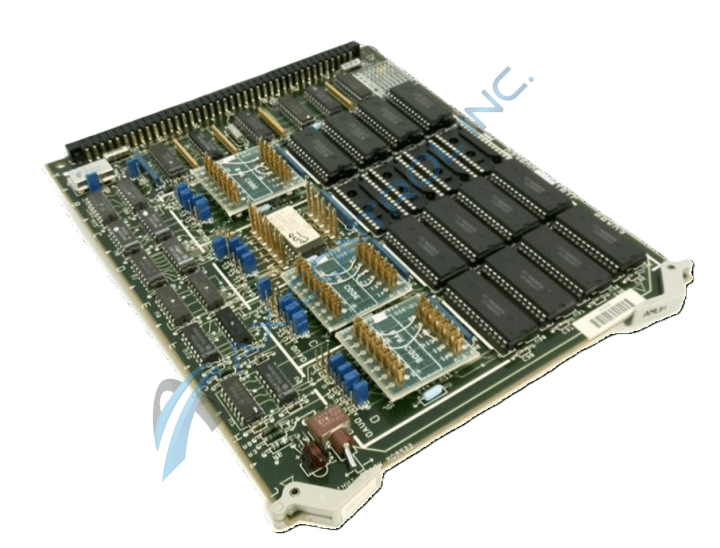

The GE Universal Memory Board DS3800HUMA1B1C is designed for quick installation in the drive. The board features a modular connector on 1 end and retention levers on the other end. The GE Universal Memory Board DS3800HUMA1B1C also is populated with 1 reset toggle switch and 1 red indicator LED. The board is also populated with multiple erasable programmable read-only memory (EPROM) modules and 10 jumpers.

4 jumpers are associated with Quad A and 4 jumpers are associated with Quad C. The quads are logical divisions on the board. 4 modules are associated with each quad. Together the board can support a maximum of 16 modules.

The red indicator LED is on if an error has occurred. Before using the testing device, it is best practice to attempt to resolve the condition by using the reset switch. The reset switch stops processing and signal transmitting and receiving on the board without turning off power. If the error is caused by signals being out of sequence, the restart might resolve the issue. Because the board is powered on, only qualified technicians should use the reset button to restart the board. This to avoid shock and burns.

Quad A and Quad C also are populated with test points. If a problem occurs with the board, the components can be tested using a full-function testing device. The testing device must be in good working condition and calibrated to perform the testing. If a problem is pinpointed, the board might be a candidate for repair.
