About the DS3800NBIC1J1G
DS3800NBIC1J1G is a bridge interface circuit board that was manufactured by General Electric. The DS3800HBIC1J1G was made to be part of the Speedtronic Mark IV turbine control series. The Mark IV Turbine Control System Series that this DS3800NBIC1J1G PCB product in specific belongs to has to be considered a now-obsolete legacy General Electric Mark product series typically, given the fact that its original manufacture was actually discontinued by the retailer due to a series-wide functional series obsolescence that was identified by the original manufacture in one of the many years beyond its initial rollout. With this being the case, this DS3800NBIC1J1G product's greater Mark IV Turbine Control System Series is still able to attract some concerted niche demand on its greater automated industrial marketplace, given the fact that it is one of General Electric's final-developed Mark product series to make use of the patented Speedtronic control system technology fist seen with the release of the Mark I Series in the mid to later 1960s. This DS3800NBIC1J1G device's greater Mark IV Series has a self-evident series of potential functional applications in the management and control systems of GE-compatible gas and steam turbine automated assemblies.
Hardware Tips and Specifications

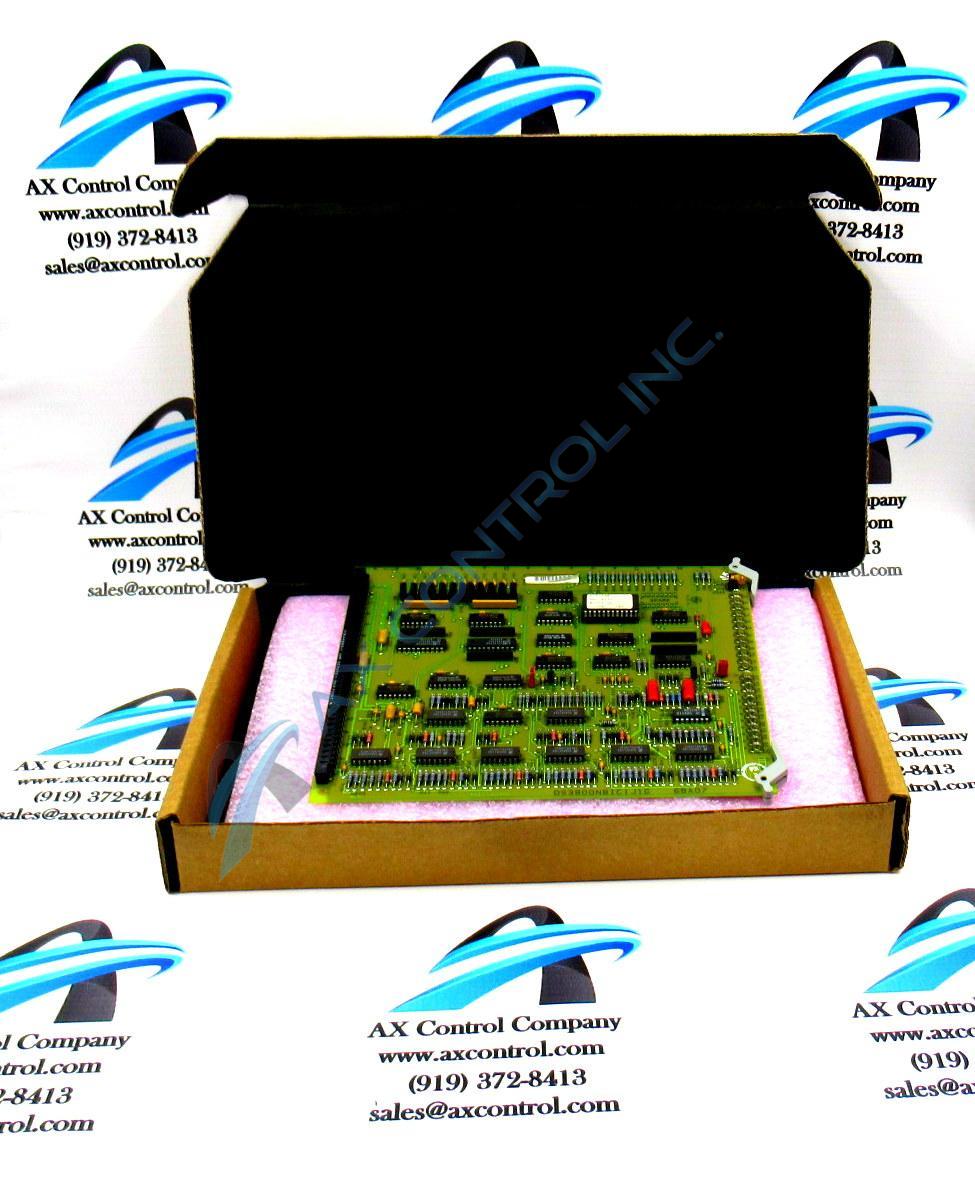

DS3800NBIC1J1G has twenty-six (26) integrated circuits spread out around the surface of the board. Twelve (12) transistors are lined up near the top of the board labeled as Q4 through Q15. Three (3) more transistors are located throughout the board labeled as Q1 through Q3, for a total of fifteen (15) transistors. The DS3800NBIC1J1G has a long connector port on the left edge of the board, allowing other components or other boards to be connected to the bridge interface board. Many blue capacitors, as well as silver and yellow capacitors, are found all over the board. There are seven (7) resistance networks located on the DS3800NBIC1J1G. Each of these resistance networks houses a series of resistors. The total resistance of all of these resistors makes up the resistance of the resistance network. In addition to the resistance networks, there are many other resistors which are covered in various colors of bands. These bands represent the resistance ability of each resistor. Diodes are also found on the board which are blue and black. Located on the DS3800NBIC1J1C is a series of jumper pins with blue jumpers which can be used to connect two pins together. This creates changes to the board and lets the user control its functions. Twenty-four (24) test points are located on the right border of the DS3800NBIC1J1G which enable the operator to test the board to ensure that it is working properly. Also found on the DS3800NBIC1J1G is a light-emitting diode, or LED, which is orange in color.
This DS3800NBIC1J1G printed circuit board product offering from General Electric or PCB for short was in fact designed and manufactured specifically with the Mark IV Turbine Control System Series in mind, as stated above. With the Mark IV Series' legacy product series status in mind, the DS3800NBIC1J1G functional product number itself can be determined to exist as a decently-strong supplementary source of DS3800NBIC1J1G Board hardware component and component specification information, as it codes for these various details through a series of functional naming segments. Just to demonstrate here, the DS3800NBIC1J1G functional product number actually begins with a dually-functioning initial naming component in its standard DS3800 series tag indirectly responsible for describing both this DS3800NBIC1J1G PCB's domestic location of original General Electric manufacture as well as its normal style of Mark IV Series printed circuit board assembly. This is immediately followed in the DS3800NBIC1J1G functional product number by an instance of the NBIC functional product abbreviation, a shorthand promotional representation of the lengthy DS3800NBIC1J1G product number developed by General Electric. The final hardware quality revealed through use of this DS3800NBIC1J1G Bridge Interface Card's DS3800NBIC1J1G functional product number would have to be defined as its group one Mark IV Series product grouping. At this time, it is unknown whether or not this DS3800NBIC1J1G device is the originally-developed product of its specific Mark IV Series functional role.
