DS3800NFCD1O1H

About the DS3800NFCD1O1H

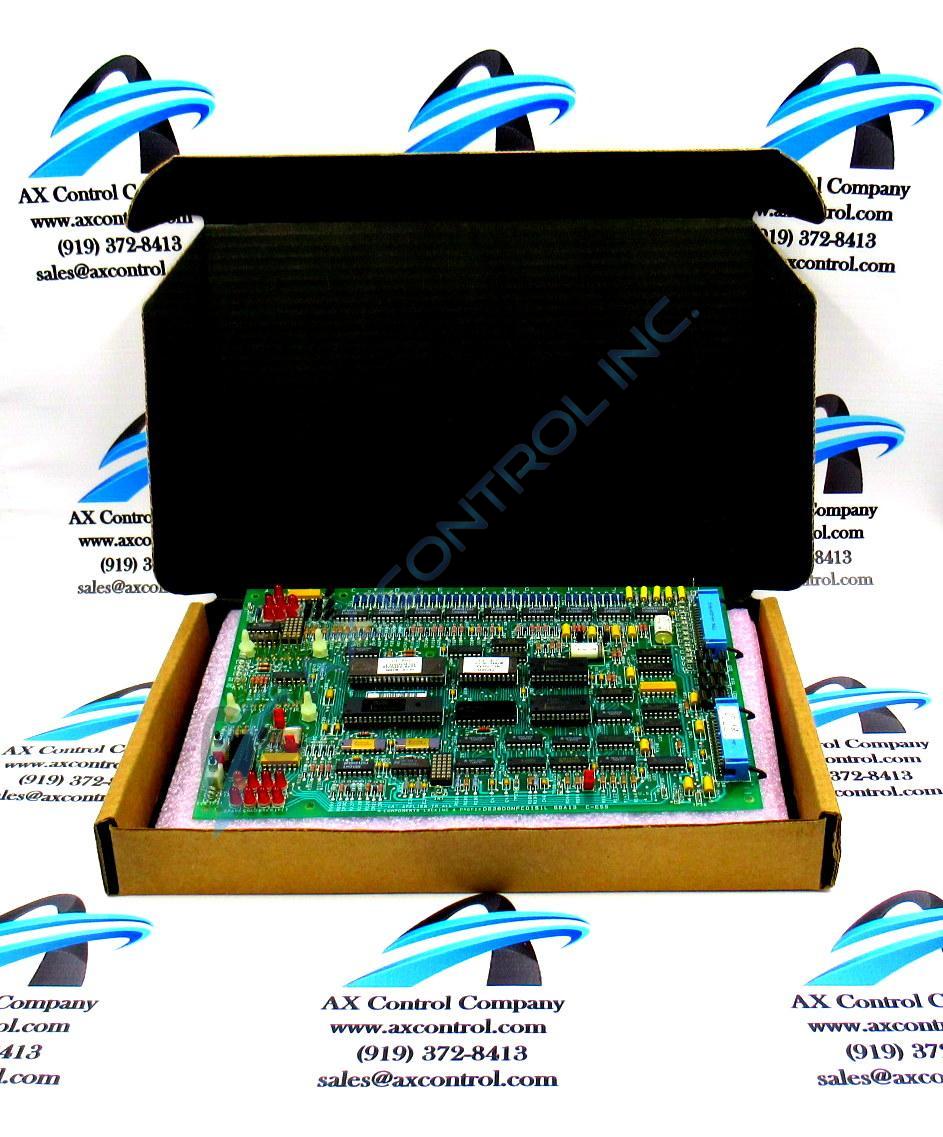

The GE Firing Circuit Board DS3800NFCD1O1H features 1 hole in each corner for attaching with screws the board to the drive interior. The board is populated with 4 standoffs for attaching a daughter card. The daughter card provides additional processing, connectors, and features. The board is populated with multiple transistor-transistor logic devices. The GE Firing Circuit Board DS3800NFCD1O1H is also populated with 13 red indicator LEDs and 1 amber indicator LED. The board also has 1 socket for electrically erasable programmable read-only memory (EEPROM) modules. The board is also populated with multiple jumpers and 2 34-pin connectors.

The GE Firing Circuit Board DS3800NFCD1O1H is installed in a drive that can be sensitive to high temperatures. When you plan the installation select a site that has room temperature air. Often the drive is installed adjacent to other drives and heavy equipment. A room of equipment can generate heat that can cause the drive to overheat. If the drive becomes overheated, the drive might automatically shutdown. Any period of shutdown will cause a downturn in productivity and rising expense. An automatic shutdown is called a trip condition. Other conditions that can shutdown the drive are overvoltage conditions and overload conditions. Both of them are caused by too much voltage being present in the drive. If any trip conditions occur, pinpoint the cause of the problem before you restart the drive.

Overheat conditions can cause intermittent processing errors. It can also cause the components to need premature replacement. A warning is also issued to alert the operator to the condition.
