About the DS200ADCIG1ADB

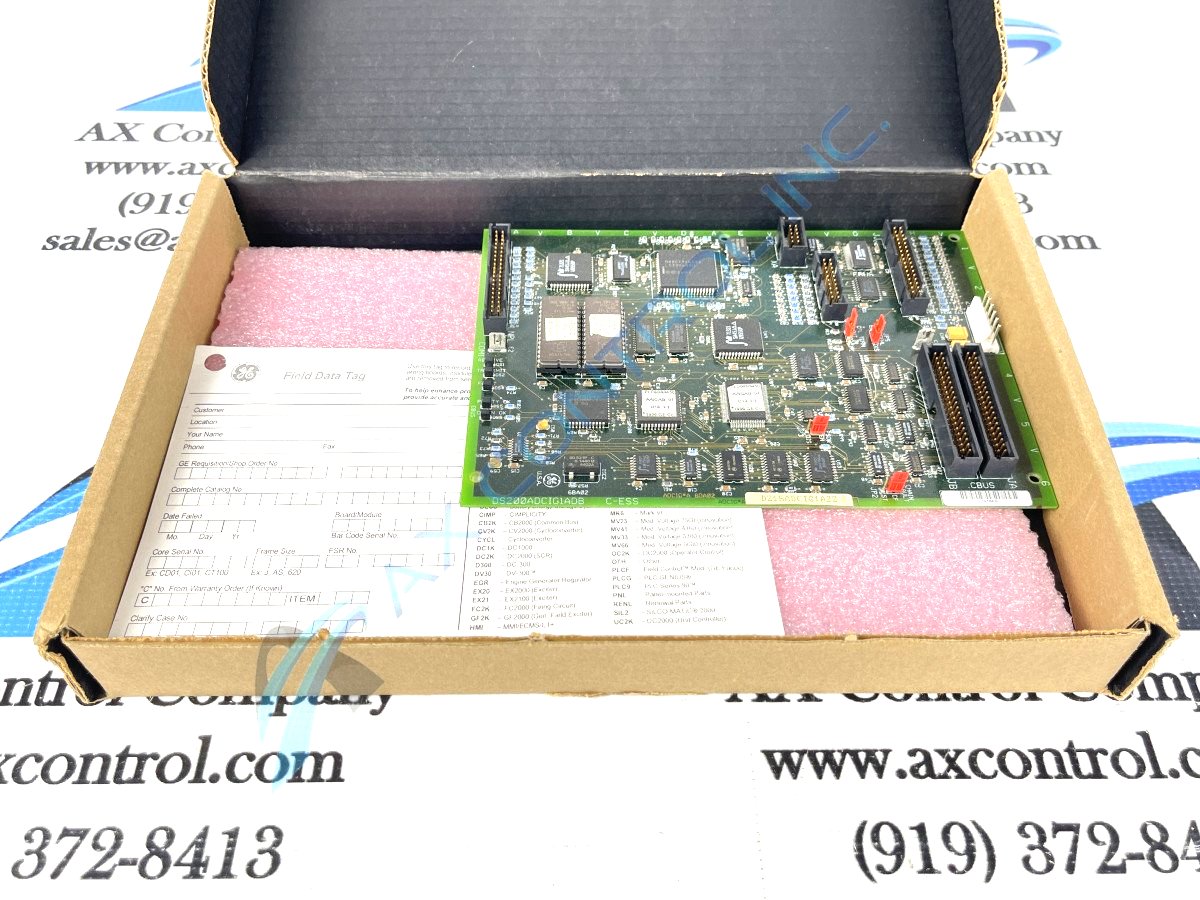

The DS200ADCIG1ADB Genius Adapter board from General Electric is used within the company’s Mark V turbine control system. The Mark V was one of the more complex of the company’s Speedtronic turbine control systems, which ranged from the Mark I (originally released in the late 1960s) to the Mark VIe. Speedtronic systems have been used for their reliability and flexibility for decades for the management and control of industrial gas and steam turbine systems. This particular DS200ADCIG1ADB printed circuit board is not the original Genius Adapter Board product offering manufactured for the Mark V Turbine Control System Series. The original Mark V Series Genius Adapter Board is the DS200ADCIG1 parent printed circuit board missing this DS200ADCIG1ADB Genius Adapter Board's three significant product revisions.
Hardware Tips and Specifications
As with any General Electric printed circuit board, Mark V Series or otherwise, the internal assembly of this DS200ADCIG1ADB PCB makes use of its own specific series of hardware component inclusions and specifications to achieve a functional status within the Mark V Series. For starters, the DS200ADCIG1ADB is a rectangular-shaped board that has been factory drilled at corner points to allow for mounting. Each one of these factory-drilled installation holes should be insulated in observance of this DS200ADCIG1ADB PCB's potentially damaging surface voltages. In terms of original factory-printed diagnostic labels, the DS200ADCIG1ADB Genius Adapter board carries the board id, coding to help with positioning and wiring, and the General Electric logo, which ensures authenticity. This board has two programmable memory chips (PROMs) along with other integrated chips. PROMs can move from your old component to your new one, easing replacement. Please be aware the DS200ADCIG1ADB board and the PROM are both static sensitive. We suggest wearing a grounding strap during installation or any sort of maintenance; this is backed up in General Electric instructional manual materials.
The DS200ADCIG1ADB includes single-pin connectors, multi-pin connectors, and plug connectors, as well as several jumper switches that will allow you to configure the board as needed. As mentioned before, most components are marked with some sort of reference designator, although the true function of these jumpers is unknown due to a lack of pertinent instructional manual documentation on the internet. This DS200ADCIG1ADB printed circuit board's DS200ADCIG1ADB functional product number is an additional source of supplementary hardware information, given this previous lack. Some of the information attainable from the DS200ADCIG1ADB product number includes its normal Mark V Series assembly type, domestic location of original manufacture, ADCI functional product abbreviation, normal style of PCB protective coating, group one Mark V Series grouping, and its three differently-rated significant product revisions.
