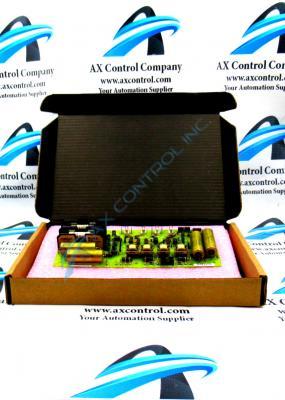

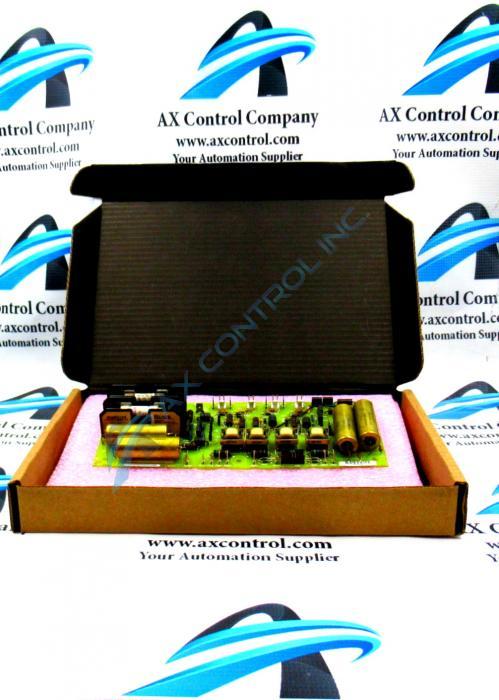

This DS200FSAAG1ABA PCB is a Field Supply Gate Amplifier Board manufactured for General Electric's Mark V Control Series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200FSAAG1ABA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FSAAG1ABA
  • SKU: DS200FSAAG1ABAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200FSAAG1ABA Technical Specifications

Original Manufacturer GE General Electric
Original Product Series Mark V
Alphanumeric Part Number DS200FSAAG1ABA
Functional Description Field Supply Amplifier
Functional Acronym FSAA
PCB Coating Style Normal Coating
1st Functional Revision A
2nd Functional Revision B
Artwork Revision A

Product Description

This DS200FSAAG1ABA Field Supply Gate Amplifier Board was originally manufactured for the Mark V Series of major automated drives retailer General Electric. The Mark V Series that this DS200FSAAG1ABA PCB is considered a member of is one of the more recent product line developed using General Electric's Speedtronic technology, and is centered around the production of printed circuit boards and other component products crucial for the functioning of turbine control systems specifically. This DS200FSAAG1ABA General Electric printed circuit board is not actually the original Field Supply Gate Amplifier Board that was designed and manufactured for the Mark V Series; that would be the DS200FSAAG1 printed circuit board missing this specific product's three signficant product revisions.

Hardware Tips and Specifications

The internal and external assembly of this DS200FSAAG1ABA Field Supply Gate Amplifier Board is unique due to its unique functionality within the greater Mark V Series. The GE Field Supply Amplifier Board DS200FSAAG1ABA features 5 jumpers, one 10-pin connector, and two fuses. It is also populated with multiple test points. The GE Field Supply Amplifier Board DS200FSAAG1ABA is subject to damage from static electricity that can build up on your body and on the board. There are several guidelines to follow once you receive the replacement board and during the replacement procedure, as revealed in original General Electric instructional manuals. The DS200FSAAG1ABA board is shipped in a sealed bag made of a plastic that is treated to prevent the flow of static through the bag and onto the board; the best practice is to keep the board in the sealed bag until you are ready to install it. During installation of this DS200FSAAG1ABA PCB, you must wear a wrist strap because it drains off any static that accumulates on the board or on your body while you wear it. When the strap is attached to an unpainted metal surface, the static seeks ground as provided by the metal, so clip the strap to a metal support on a workbench or other structure. Another installation consideration is to refrain from walking around with the board because walking causes static to build up, especially in cool and dry conditions.

This DS200FSAAG1ABA printed circuit board's DS200FSAAG1ABA functional product number is a strong source of original product-specific information, including this PCB's domestic manufacture location, normal style of Mark V Assembly, FSAA functional acronym, normal style of PCB coating, and three significant product revisions. The G1 series grouping tag that designates this product's normal style of PCB coating is also indicative of this DS200FSAAG1ABA Field Supply Gate Amplifier's Mark V Series Group 1 product grouping.

Frequently Asked Questions about DS200FSAAG1ABA

How many fuses does DS200FSAAG1ABA have?
DS200FSAAG1ABA has two fuses. The fuses on DS200FSAAG1ABA are Limitron fast-acting fuses. Each fuse on DS200FSAAG1ABA is 600 volts and 30 amps.
What are the main connectors on DS200FSAAG1ABA?
DS200FSAAG1ABA's main connectors are: P1PL, P2PL, N1PL, and N2PL. These connectors on DS200FSAAG1ABA are 2-pin and are located at the top of DS200FSAAG1ABA.

Reviews For DS200FSAAG1ABA

Internal Review
(5.0)

This DS200FSAAG1ABA printed circuit board from General Electric's Mark V Series is definable as a Field Exciter Gate Amplifier Board in original Mark V series instructional documentation, as explained above. This DS200FSAAG1ABA Field Exciter Gate Amplifier Board's three significant product revisions are not considered backwards-compatible, as this DS200FSAAG1ABA PCB features two different types of revision in its revision history; both functional and artwork product revisions. This DS200FSAAG1ABA PCB is available for repair or replacement from AX. - AX Control Lead Technician
