About the DS200IMCPG1A
The DS200IMCPG1A printed circuit board functions as part of General Electric’s Mark V Speedtronic turbine control system. The Mark V was designed for the management and control of industrial turbine systems. While these systems are no longer produced or supported by the OEM, you can source replacement parts for the Mark V and other Speedtronic systems from our extensive inventory of refurbished and never-used overstock. The Mark V Series that this DS200IMCPG1A printed circuit board belongs to has to be considered a legacy GE Series, as its manufacture was discontinued in one of the many years past its original release due to a manufacturer-identified functional series obsolescence. This DS200IMCPG1A device's greater Mark V Series, while obsolete as a whole, still attracts some interest on the greater figurative automated industrial marketplace, as it exists as one of the lastly-developed GE product series to make use of the patented Speedtronic control system technology first seen with the initial rollout of the previous Mark I Series in the later 1960s. Our inventory has been checked and tested before we put it into active (for sale) inventory.
Hardware Tips and Specification

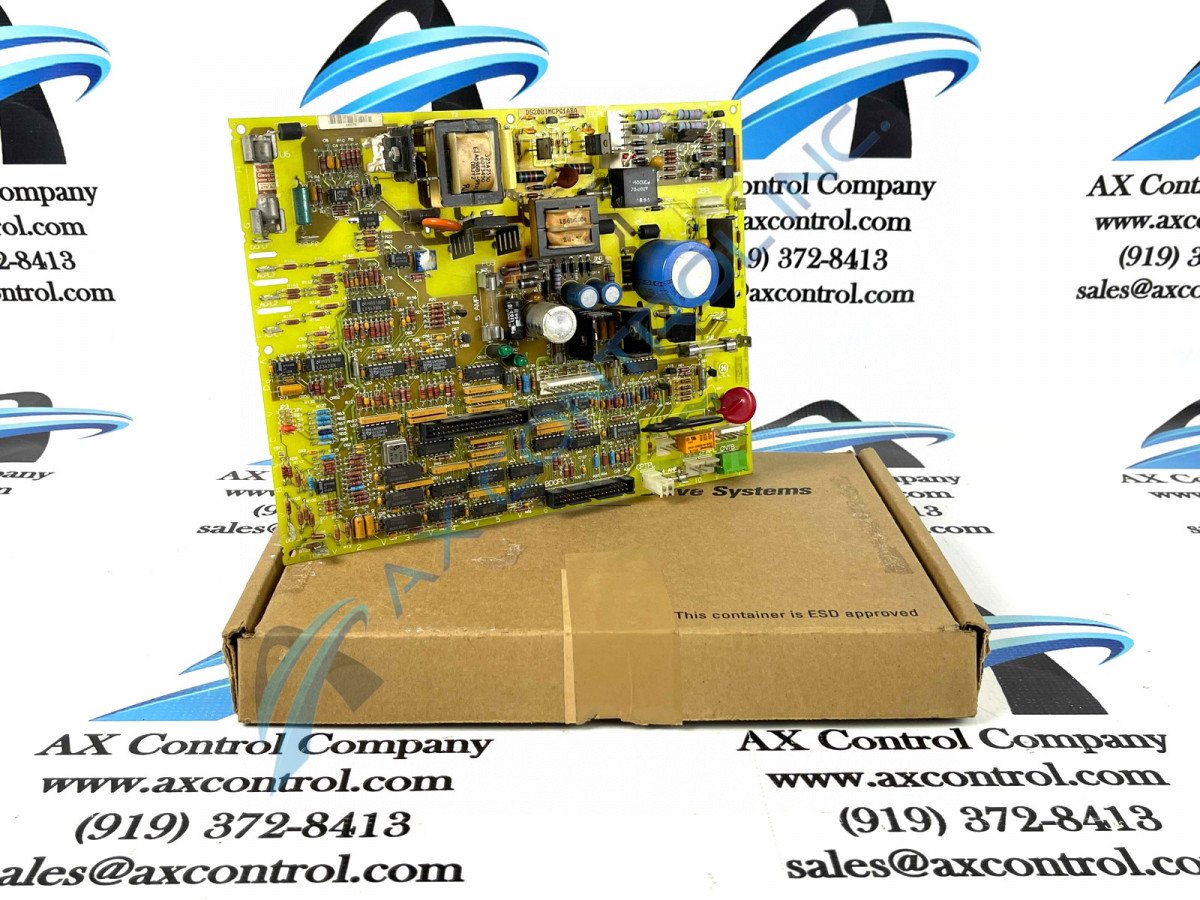

As with any General Electric printed circuit board product offering made available to our extensive new and reconditioned inventory here, this DS200IMCPG1A PCB's Mark V Series functionality is introduced with its normal Mark V Series assembly's acceptance of a specific series of functionality-inducing hardware components and component specifications. The DS200IMCPG1A board is designed with over twenty integrated circuits on its surface. It also has fourteen resistor network arrays, multiple types of capacitors, many transistors, a varistor, and several heat sinks. One visible style of hardware component in this DS200IMCPG1A PCB's normal assembly is its drum-style capacitor, which is recognizable due to its distinct blue color and shape. One transformer is located along its long top edge and another closer to the center of the board. Meanwhile, the DS200IMCPG1A board’s six fuses are scattered across its surface. Given this DS200IMCPG1A product offering's attribution to the now-obsolete Mark V Turbine Control System Legacy Series, it is not surrounded by any great collection of originally-printed instructional manual materials online for the purposes of this DS200IMCPG1A personalized product page. With this being true, the DS200IMCPG1A functional product number can act as a primary source of DS200IMCPG1A Board hardware information; coding for specific details in a selection of consecutive functional naming segments. For instance, the DS200IMCPG1A functional product number is started off with the dual-functional DS200 series tag delegating this DS200IMCPG1A device's normal Mark V Series assembly as well as its domestic original manufacture location. Some of the other relevant hardware information revealed through this DS200IMCPG1A PCB's functional product number includes its:
- IMCP functional abbreviation
- Normal PCB coating style
- Group one Mark V Series product grouping
- A-rated primary functional revision
Other board components include a varistor, LED indicators, several vertical connectors, relays, and a small terminal block located near the bottom corner of the board. Generally, this DS200IMCPG1A printed circuit board product offering's voltage suppression and protection strategy involves the incorporation of a series-standardized selection of hardware components such as various styles of rectifiers, capacitors, diodes, and integrated circuits. The board has been drilled at each corner for installation purposes, with each individual factory-drilled hole being ringed with an insulated material in observance of potentially-present damaging surface voltages. Most components are marked with some sort of reference designator and may also carry an individual part number. Component datasheets will provide in-depth information. For more information about how the DS200IMCPG1A board functions, or how it should be handled, configured or installed, please refer to original documentation from General Electric like manuals and user guides. This DS200IMCPG1A PCB's originally-developed user guides and instructional documentation may be hard to source online, given this DS200IMCPG1A PCB's Mark V Legacy Series attribution. If you need these documents, our company may be able to help. Let our team know you need replacements when you call with your purchase order.
