DS200LDCCH1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (14)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (14)
  • Click a star to rate this product

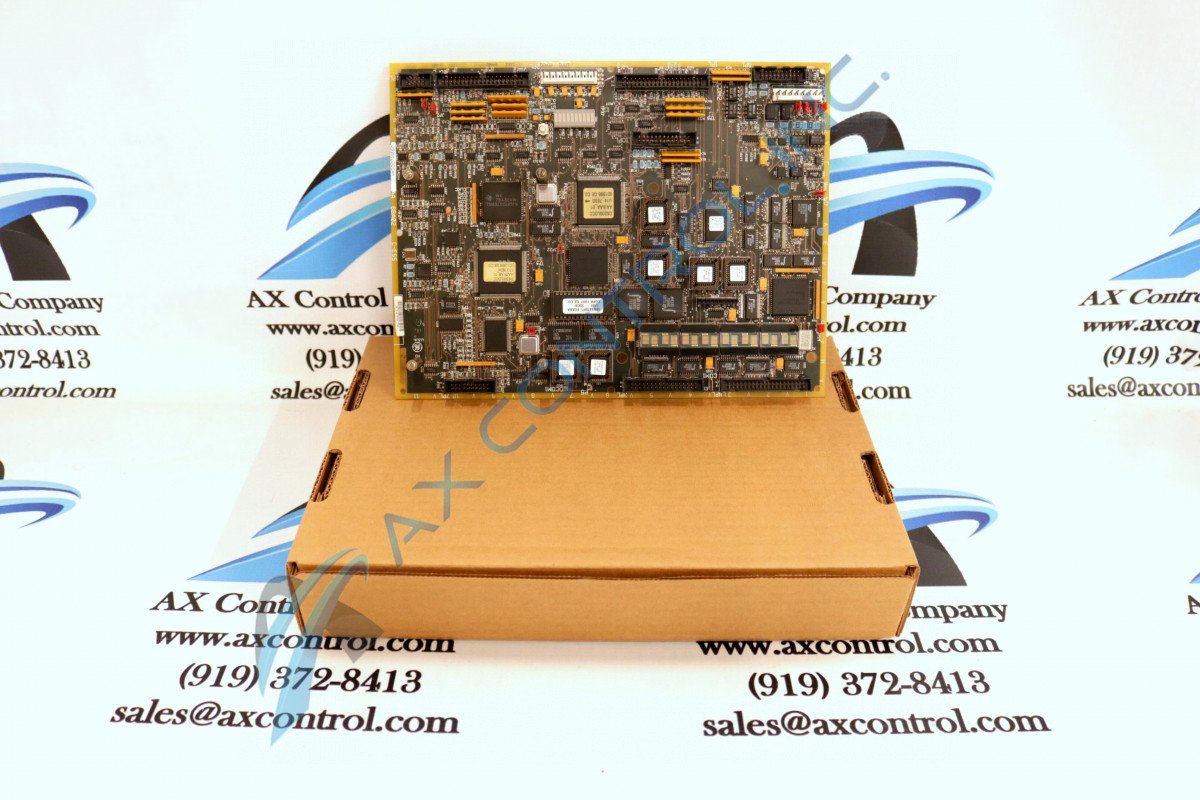

This DS200LDCCH1 LAN Control Card Drive Board was manufactured by General Electric for the Mark V Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200LDCCH1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200LDCCH1
  • SKU: DS200LDCCH1GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200LDCCH1 Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200LDCCH1
Product Type LAN/Control CD/CC Drive
Instruction Manual GEI-100216
PCB Coating Conformal Coating
Assembly Type Normal Assembly

About the DS200LDCCH1

When the DS200LDCCH1 card was manufactured, the unit was designed to operate as a drive control local area network (LAN) communications board. General Electric classified the card as a member of the Mark V series of drive boards. The card was developed to operate with exciters and drives from GE’s DIRECTO-MATIC 2000 series. Microprocessors on the board provide LAN communications, operator interface, motor and drive processing, and drive resets. The Mark V Series that this DS200LDCCH1 printed circuit board product offering belongs to is one of the final General Electric product series to make use of their patented Speedtronic control system technology, despite its additional classification as a now-obsolete legacy product series given its eventual manufacturing discontinuation in the many years post-release. This DS200LDCCH1 LAN Communications Board is the originally-developed product of its specific Mark V Series functionality, as evidenced by the absence of any trailing revision-indicating alphanumeric digits on the DS200LDCCH1 functional product number.

Hardware Tips and Specifications

Features of the DS200LDCCH1 board include four microprocessors to offer coverage of I/O and drive control settings. These four microprocessors include a drive control processor (DCP), motor control processor (MCP), co-motor processor (CMP), and a LAN control processor (LCP). The DCP offers control for integrated I/O peripherals, such as decoders and timers. Circuits for the motor control system as well as I/O communications are processed through the MCP. Should the MCP be incapable of finishing computations, the CMP will provide the extra processing power required to perform complex mathematical equations. The final processor, the LCP, accepts five bus systems for communications inputs. The board is completed with an alphanumeric keypad to provide access to system settings and diagnostics. In terms of its software, any onboard software accessed by the Mark V Turbine Control System Series' DS200LDCCH1 printed circuit board is stored in a series of memory chips attached to its main base circuit board. Much like the four microprocessors mentioned above, each of these memory chips is accompanied by its own factory-printed nomenclature label as designated in the DS200LDCCH1 Overview attached above in the manuals tab provided for your convenience. Some of this DS200LDCCH1 product's memory chips include:

  • The U6, U7, U11, U12, U22, and U23 Flash PROMs
  • The U9 EEPROM

While this DS200LDCCH1 device's series of Flash PROMs are configured at the factory, they contain configuration data and can be customized by the Mark V Series drive administrator as needed. Four total methods have been included in this DS200LDCCH1 product offering's normal Mark V Series assembly for the triggering of necessary product resets; all as outlined in the DS200LDCCH1 instructional manual made available in our manuals tab above for your viewing pleasure. This DS200LDCCH1 device's reset trigger methods include a reset induced by pressing the RESET pushbutton. applying +5 to +24 V dc voltage to pin 30 on connector 6PL, through use of the drive terminal board, through programmed software control or finally through use of the automatic internal hardware watchdog protection inherent in this devices' normal Mark V Series assembly. Some of the drive terminal boards that can trigger a reset for this DS200LDCCH1 product include the 531X305NTB and DS200STBA terminal boards, with the DSS200STBA Board being available here today as another member of our varied Mark V Turbine Control System Series.

This DS200LDCCH1 product offering's singular U9-located EEPROM is responsible for the containment of this DS200LDCCH1 device's field-programmable parameters, which exist as the primary customization strategy for this DS200LDCCH1 LAN Communications Board outside of its hardware reset button. When shipped, the card will be protected by a static-reducing protective plastic covering. Before removing the DS200LDCCH1 board from the protective wrappings, be sure to review any provided installation parameters. Refer to the device’s manual and datasheet for a complete guide to installing and wiring the board. General Electric originally provided technical support for the entire Mark V series of boards. Our trusted sales team at AX Control is always available to speak with you via phone or email about all of your automation needs. Pricing information for the DS200LDCCH1 card, as well as any other part or repair, can be obtained by contacting our staff.

Frequently Asked Questions about DS200LDCCH1

What microprocessor features does DS200LDCCH1 have?
DS200LDCCH1 has two microprocesor features. DS200LDCCH1 has microprocessor control and processing of drive, motor, and customer I/O functions. DS200LDCCH1 also has microprocessor control of LAN communications for drive I/O. DS200LDCCH1 has four total microprocessors: DCP, MCP, CMP, and LCP.
Can you initiate a soft reset on DS200LDCCH1?
Yes, a soft reset can be initiated on DS200LDCCH1 but only through correct software for DS200LDCCH1 or the programmer module's reset key.
What type of drives does DS200LDCCH1 work with?
DS200LDCCH1 provides primary drive and I/O control functions for GE's Directo-Mactic 2000 family of drives and exciters.
Where can I find the manual for DS200LDCCH1?
The manual for DS200LDCCH1 is Manual GEI-100216. This manual is the GE Motors and Industrial Systems Drive Control/LAN Communications Board Manual. Although the manual is specific to DS200LDCCG1A_ _ boards, this manual covers all LDCC information, identifying DS200LDCCH1.

Reviews For DS200LDCCH1

Internal Review
(5.0)

This DS200LDCCH1 product offering exists within its greater Mark V Turbine Control System Series as a LAN Communications Board, a crucial function that is most likely responsible for its disproportionate relative availability in Mark V Series instructional manual materials available online. This DS200LDCCH1 printed circuit board's normal Mark V Series assembly is well-protected by a conformal PCB coating; a thin layer of rudimentary chemically-applied PCB coating that exhaustively covers the base circuit board of this DS200LDCCH1 device. - AX Control Lead Technician

Repair Services For DS200LDCCH1

Type Lead Time Price Action
Repair Service 1-2 weeks $905

Our highly skilled technicians can repair your DS200LDCCH1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
