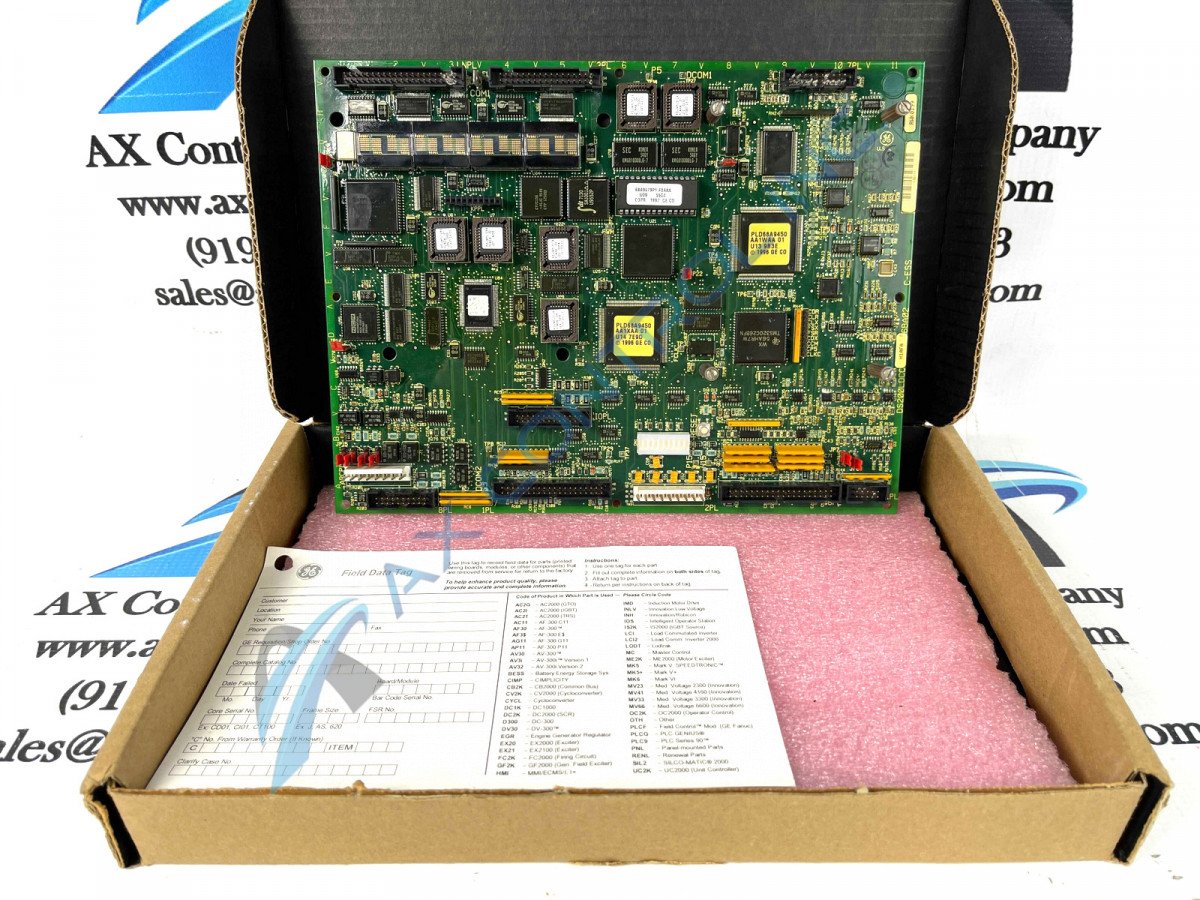

The DS200LDCCH1AFA LAN Communications Board was manufactured by General Electric for the Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200LDCCH1AFA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200LDCCH1AFA
  • SKU: DS200LDCCH1AFAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200LDCCH1AFA Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200LDCCH1AFA
Functional Description Drive Control/LAN Communications Board
Instruction Manual GEI-100216
Functional Acronym LDCC
PCB Coating Conformal Coating
1st Functional Revision A
2nd Functional Revision F
Artwork Revision A

About the DS200LDCCH1AFA

The DS200LDCCH1AFA card is a drive control local area network (LAN) communications board. General Electric developed this device as a member of the Mark V Turbine Control System drive board series. Cards from this series interface well with GE’s DIRECTO-MATIC 2000 exciters and drives. A number of board functions are provided to the host drive, including I/O, device, and motor control functions. As you have probably picked up based on its full extended series name, the Mark V Series that this DS200LDCCH1AFA printed circuit board or PCB for short is considered a member of has specific applications in both the management and control systems of compatible and popular steam, gas, and wind turbine automated drive assemblies. With the alternative energy focus of this DS200LDCCH1AFA device's greater Mark V Series in mind, it is something of a surprise that it exists as a Legacy General Electric product series that was discontinued due to obsolescence in one of the many years following its initial GE release. The Mark V Turbine Control System Series housing this DS200LDCCH1AFA product, while a generally-obsolete legacy series, does happen to exist as one of the final General Electric Mark product series to make use of the retailer's patented Speedtronic control system technology first seen alongside the release of the Mark I Series in the later 1960s. This DS200LDCCH1AFA printed circuit board is not the original product developed for its intended Mark V Series functional role; that would be the DS200LDCCH1 parent LAN Communications Board missing all three of this DS200LDCCH1AFA PCB's three significant product revisions.

Hardware Tips and Specifications

The specific LAN Communications Board functionality of this DS200LDCCH1AFA product offering is introduced with its normal Mark V Series assembly's acceptance of a specific series of functionally-necessary hardware components and hardware component specifications. For starters, it should be noted that this DS200LDCCH1AFA PCB is more accurately described as a printed circuit card and therefore a LAN Communciations Card; given its small general stature and basic dimensions. Onboard software necessary for the normative functioning of this DS200LDCCH1AFA product is stored through a series of six flash PROM modules containing configuration data, as well as an EEPROM component responsible for the storage of this DS200LDCCH1AFA Board's field-adjustable parameters. Four microprocessors are housed in the DS200LDCCH1AFA communications board. A drive control processor (DCP) is present to perform digital and analog I/O conversions as well as control peripheral I/O devices. A LAN control processor (LCP) is also available on the board. This component is used to accept five different bus LAN systems. The two remaining microprocessors are the motor control processor (MCP) and the co-motor processor (CMP). The MCP is used to process digital I/O communications. If any calculations are too strenuous for the MCP, the CMP will provide the additional processing speed needed to complete the request. A GE programmer keyboard is also found on the board for direct user access to system diagnostics and error codes.

Any part shipped by AX Control will be protected by a standard static cling plastic wrapping. Before removing the DS200LDCCH1AFA board, be sure to review all installation parameters provided by the manufacturer. Wiring instructions for the card is available in the series manual as well as the device datasheet. General Electric originally provided technical support to all members of the Mark V series. Our trained sales staff at AX Control is always available via phone or email to assist with all of your automation needs. Our team can provide pricing information for the DS200LDCCH1AFA as well as any other needed part or repair. This DS200LDCCH1AFA LAN Communications Card is a versatile Mark V Series product that can handle a range of different compatible voltages, signals, and even product types. For example, this DS200LDCCH1AFA printed circuit board is considered compatible with up to five different bus systems, including:

  • The DLAN+, GE’s ARCNET®-based drive LAN protocol Bus System
  • The DLAN, GE’s drive LAN used for smaller drives and earlier larger drives Bus System
  • The Genius® bus via an interface board, such as the DS200ADGI Bus System
  • The CPL (Control Party Line) serial link via an interface board, such as the DS200ADCI Bus System
  • The C-bus, a parallel differential bus, via an interface board, such as the DS200ADCI Bus System

Frequently Asked Questions about DS200LDCCH1AFA

What kind of display does DS200LDCCH1AFA have?
DS200LDCCH1AFA has a 16-character digital display and connector KPPL for adding an optional interface to DS200LDCCH1AFA.
How many PROMs does DS200LDCCH1AFA have?
DS200LDCCH1AFA has six PROMS. The PROMs on DS200LDCCH1AFA contain configuration data and can be identified by U6, U7, U11, U12, U22, and U23 on DS200LDCCH1AFA.
Does DS200LDCCH1AFA have reset functions?
Yes, DS200LDCCH1AFA has both hardware and software drive reset functions.
Where can I find the manual for DS200LDCCH1AFA?
We have a Drive Control/LAN Communications Board Manual that will be helpful with DS200LDCCH1AFA. This manual is Manual GEI-100216 and the manual will help you greatly with DS200LDCCH1AFA although this manual says the manual is specific to DS200LDCCG1A_ _ boards because DS200LDCCH1AFA is an LDCC and this manual provides info on LDCCs, which include DS200LDCCH1AFA.

Reviews For DS200LDCCH1AFA

Internal Review
(5.0)

This DS200LDCCH1AFA Mark V Turbine Control System Series product offering is a small printed circuit board better-classifiable as a LAN Communications Card. This DS200LDCCH1AFA PCB, while possessing a normal assembly version and A-rated primary functional revision, differentiates itself from the proverbial Mark V Series pack through accepting an F-rated secondary functional revision and a conformal PCB coating, which involves a thick, rudimentary layer of daily wear and tear protective coating over individual DS200LDCCH1AFA hardware elements. - AX Control Lead Technician
