About the DS200NATOG2ACB
The DS200NATOG2ACB is a component for the Mark V series from GE. The MKV is the third generation of triple-redundant microprocessor based management for gas/steam turbines released by General Electric. This series is designed to manage small, medium, and large turbines and turbine-generator monitoring systems. It has a very flexible, PC based operator interface with a color monitor and a logging printer with an alarm log, event log, and a historical trip log. The MKV offers distributed multiprocessor control in each controller for maximum processing capability. It also has synchronizing check protection built into the system. General Electric's Mark V Series is considered a legacy series, as it is no longer being actively manufactured by the retailer. This specific DS200NATOG2ACB PCB is classifiable as a Voltage Feedback Scaling Board, as it appears as in original Mark V Series instructional manual materials. While this DS200NATOG2ACB board is certainly a Voltage Feedback Scaling Board in its own right, it is not the original product of that functionality to feature in the Mark V Turbine Control System Series; that would be the DS200NATOG2 Voltage Feedback Scaling Board missing this DS200NATOG2ACB product's full suite of three significant product revisions.
Hardware Tips and Specifications

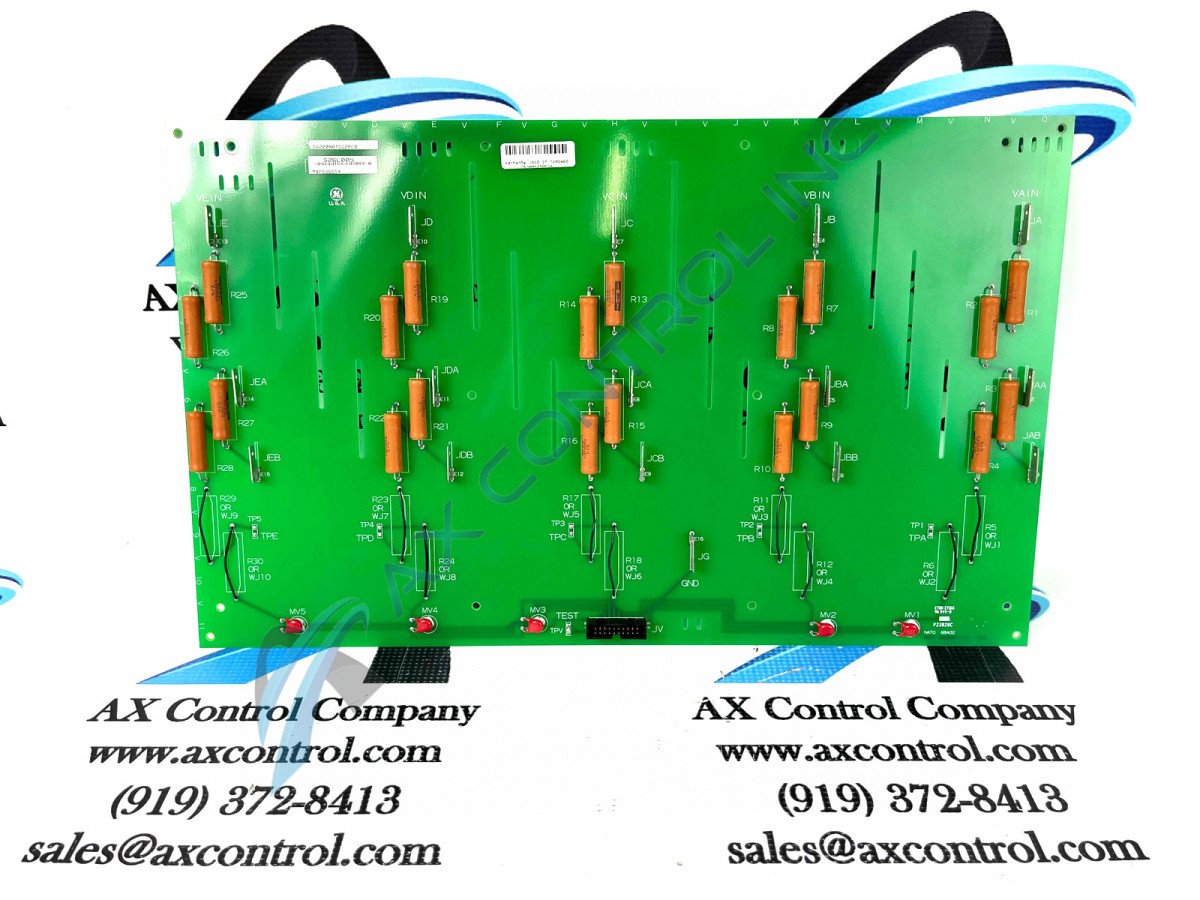

This DS200NATOG2ACB printed circuit board or PCB for short is a Mark V Series product that contains an elevated amount of product-specific hardware components and component specifications, encouraged by this device's three total significant product revisions. The DS200NATOG2ACB is marked on two edges with letters and numbers for easy alignment of the board within the frame. The board is drilled twice in each corner and has several other factory-drilled holes located in other locations along the surface of the board; all of these factory-drilled holes have been included for installation purposes and have been insulated in observance of potentially-present dangerous board surface voltages. The bottom edge of the DS200NATOG2ACB contains a single male vertical pin connector with eighteen pins. This is marked “JV.” Next to this is a single test point marked “TPV” and “TEST.” The board has five other test points which are marked TP1 through TP5. These test points are also marked TPA through TPE. The bottom edge includes five high-voltage ceramic capacitors. These components are marked “MV1” through “MV5.”
The center of the DS200NATOG2ACB has four lines of resistors. These components are marked in groups of four, R1-R4, R7-R10, R13-R16, R19-R22, and R25-R28. The two resistors between each of these groups are labeled and located below each of these groups. However, these ‘resistors’ consist of empty through-hole wires and are alternately labeled as WJ1-WJ10. The last components on the DS200NATOG2ACB board are silver metal jack connectors; there are three lines of these connectors located on the board, labeled JA-JE, JAA-JEA, and JAB-JEB. All of the various hardware components in the assembly of this DS200NATOG2ACB Voltage Feedback Scaling Board should be generally well-protected by this DS200NATOG2ACB PCB's thick, rudimentary normal style of printed circuit board coating. Our warehouse will carefully pack the DS200NATOG2ACB and ship it in a protective, static reducing covering, given its status as a static-sensitive Mark V Series printed circuit board. Please review manuals and data sheets from original manufacturer before unboxing your new part, and be sure to understand that this DS200NATOG2ACB PCB's originally-introduced performance specifications and dimensions are almost certainly altered through this NATO-abbreviated printed circuit board's three total significant product revisions, which include two functional product revisions and a singular artwork configuration revision.
