About the DS200RTBAG1ABB
The DS200RTBAG1ABB printed circuit board from General Electric is part of the company’s Mark V Turbine Control System series. The MKV is a Speedtronic turbine control system, used to manage and protect industrial turbine systems (gas and steam.), as you may have been able to guess based off of its previously-included full extended series name. The Speedtronic portion of this DS200RTBAG1ABB PCB's greater product series is a reference to the fact that it exists as one of the lastly-developed General Electric product series to make use of the patented Speedtronic control system technology first seen with the release of the Mark I Series in the mid to later 1960s. While this DS200RTBAG1ABB PCB's Mark V Series does feature Speedtronic technology, it must be considered an obsolete product series as a whole, as its manufacture was discontinued by the General Electric retailer in the years past its initial GE series rollout. This DS200RTBAG1ABB printed circuit board, while definable as a basic Relay Terminal Board, is not the first-produced product of this specific Mark V Series functional role; that would be the DS200RTBAG1 parent printed circuit board missing this DS200RTBAG1ABB device's three significant revisions.
Hardware Tips and Specifications

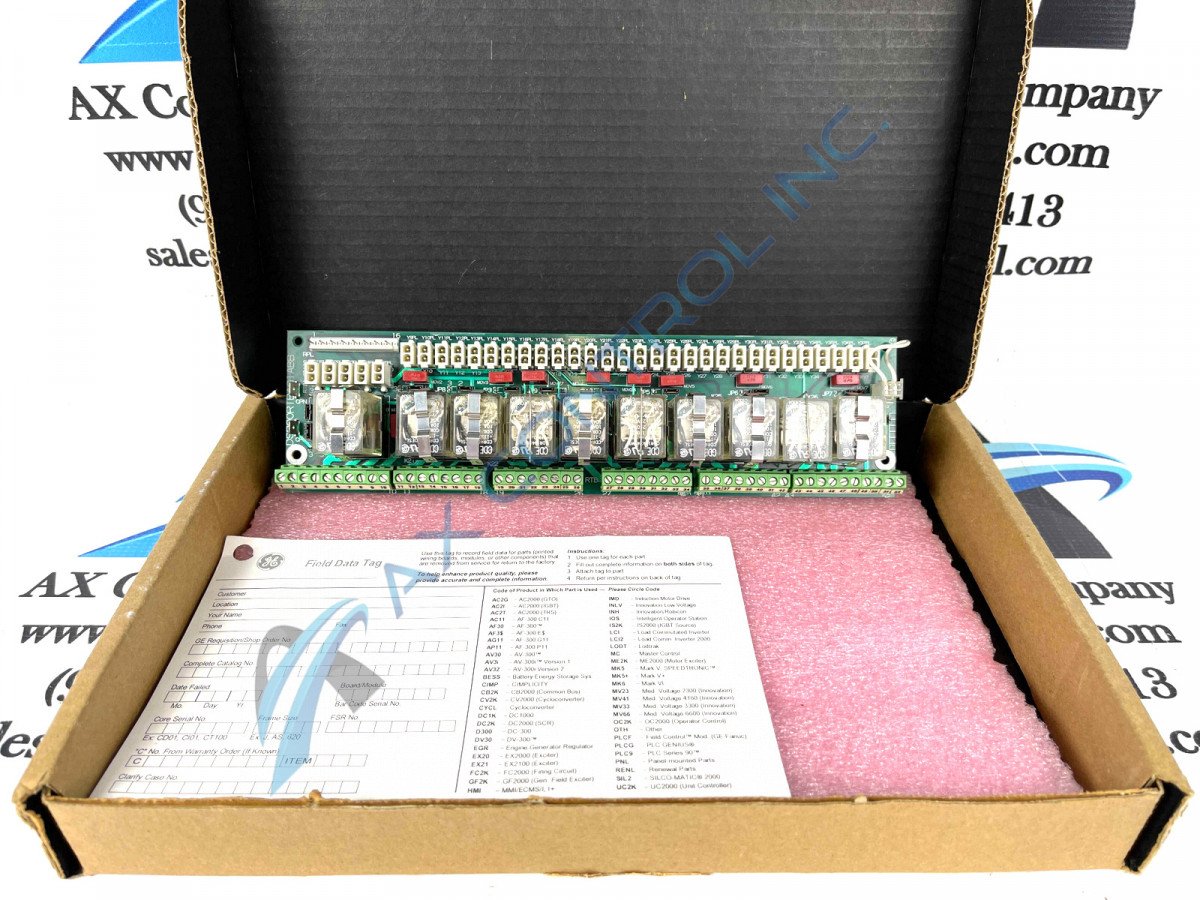

The DS200RTBAG1ABB is an optional board that can be installed in GE exciter and drive cabinets. It provides an additional ten relays to that drive or exciter. The DS200RTBAG1ABB is a 110 VDC board. If you need a 24 VDC board, look at RTBAG2 boards in our inventory. If you need 115 VAC, see RTBAG3 boards in our inventory. The DS200RTBAG1ABB is built with ten relays on its surface. Each relay has an LED indicator paired to it that will show when the relay is energized. The relay I/Os are protected by 130 VAC MOVs (metal oxide varistors.) These are located to the side of each relay.The DS200RTBAG1ABB connects to other components via a 16-pint RPL connector and 2-pin OPTPL connectors. Additionally, the board has two stab-on connectors that are jumper-selectable. The board also has several terminal blocks. Components are marked with reference designations to help the user identify each component. The DS200RTBAG1ABB board is drilled at or near each corner. It is marked with the board id and with the GE logo. Surface wiring is used to connect some components.
Refer to GE manuals for more information about the board, including detailed information about installation. Power should be removed and the board tested for remaining power before beginning any sort of removal procedure. Fifteen total jumpers have been added to the normal Mark V Series assembly of this DS200RTBAG1ABB printed circuit board product offering, for various board customization purposes. Generally, any other voltage suppression or regulation in the normal Mark V Series assembly of this DS200RTBAG1ABB product offering would be handled by its set of Mark V Series-standardized voltage-limiting hardware components such as capacitors, transistors, diodes, and integrated circuits. Given this DS200RTBAG1ABB Relay Terminal Board's obsolete Mark V Series product status and its concurrent lack of online-available instructional documentation, the DS200RTBAG1ABB functional product number can be analyzed as a primary source of DS200RTBAG1ABB Board information, desiplaying various hardware details in a series of consecutive functional naming chunks. For instance, the DS200RTBAG1ABB product number begins with the dual-functional DS200 series tag delegating this DS200RTBAG1ABB PCB's normal Mark V Series assembly and its domestic original manufacture location. Some of the other details revealed in the DS200RTBAG1ABB functional product number include this DS200RTBAG1ABB PCB's RTBA functional product acronym, its normal PCB coating style, and its group one Mark V Series product grouping. This DS200RTBAG1ABB PCB's group one grouping is relevant as it codes for a number of DS200RTBAG1ABB hardware details specifically, such as this DS200RTBAG1ABB product's:
- K20 − K26 and K27 − K29 relay designations
- 68A9663PDC110X and 336A5101PDC110 respective relay part numbers
- 110 V dc coil with 10 A DPDT contacts and 110 V dc coil with 1 A 4PDT contacts respective relay descriptions
