The DS200RTBAG2AFB model is a Relay Terminal Board designed by General Electric to be used in the Mark V DS200 series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200RTBAG2AFB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200RTBAG2AFB
  • SKU: DS200RTBAG2AFBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200RTBAG2AFB Technical Specifications

Part Number DS200RTBAG2AFB
Series Mark V DS200
Manufacturer General Electric Boards and Turbine Control
Functional Acronym/Abbreviation RTBA
Functional Description Relay Terminal Board
Group Variation G2
Power Supply 24 VDC
Relay Designation K20-K26 and K27-K29

Product Description

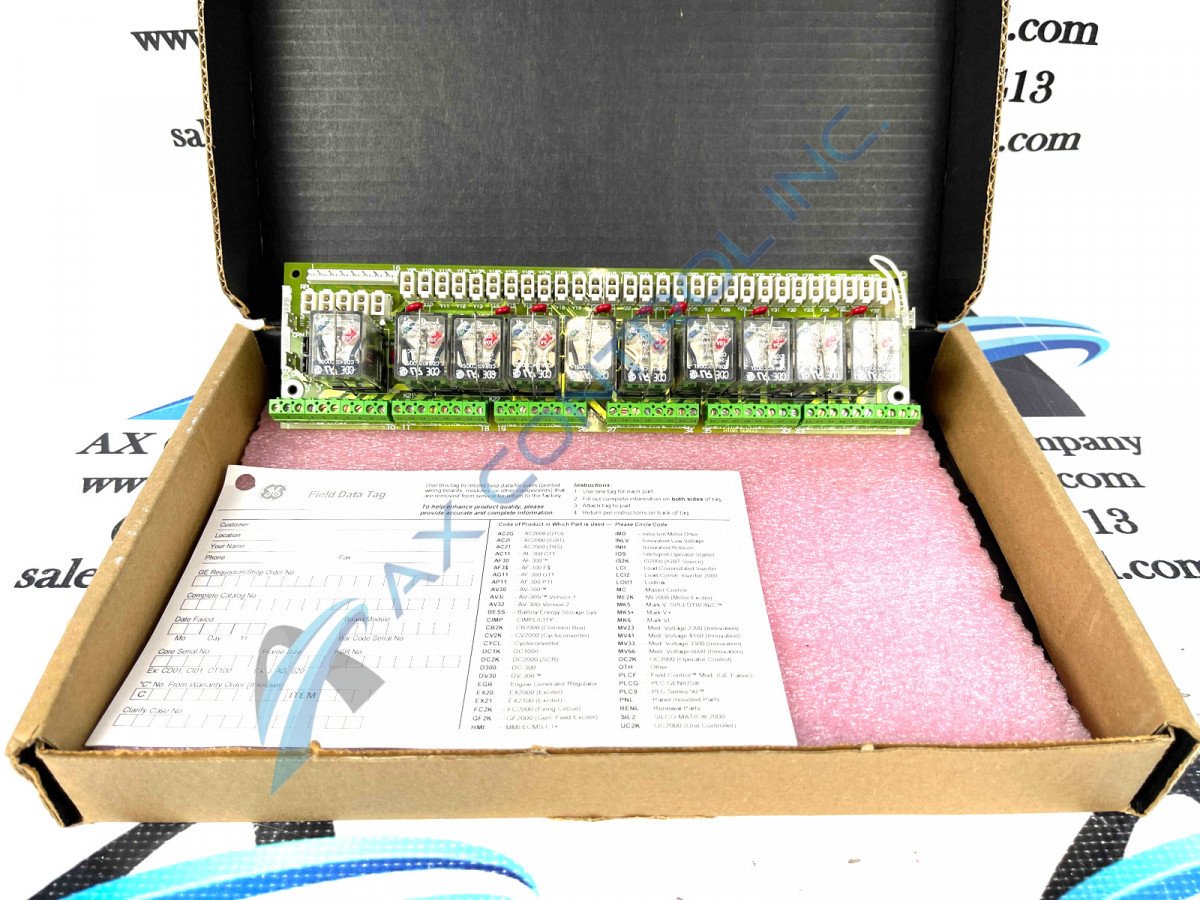

DS200RTBAG2AFB is a relay terminal board (RTBA) designed for General Electric’s Mark V board series. This board can be used in applications across several GE brand drives and exciters. By installing this board into a drive cabinet, an additional ten relays are provided to the user. Both the LAN I/O terminal and a remote user can drive the relays found on this board. This DS200RTBAG2AFB Relay Terminal Board or Relay Terminal Board Assembly is not the original product that was manufactured for General Electric's Mark V Series of turbine control systems; that would be the original DS200RTBAG2 Relay Terminal Board missing this PCB's three significant product revisions.

Hardware Tips and Specifications

This DS200RTBAG2AFB Relay Terminal Board assembly, as a Mark V Series product offering, necessitates the inclusion of a specific series of hardware components and hardware component specifications. Locations K20 through K29 are the board positions for all onboard relays. DS200RTBAG2AFB includes two types of relays, featuring both DPDT and 4PDT style of Mark V Series relay. The DPDT type comprises seven of the relays found on the card, including K20 through K26. These types feature two Form C contacts, with each contact rating 10A. K27 through K29 are the relays present on this printed circuit board classified as the second relay type, 4PDT. Rather than two contacts, 4PDT relays include four Form C contacts that each rate 1A. All ten of these points are protected by a 130 VAC metal oxide varistor (MOV). Each relay contains an internal 110 VDC coil that ensures they are operating properly. Should any relay stop functioning or break, the user can easily remove and replace all ten spots.

There are two connectors used with the DS200RTBAG2AFB model; one is a sixteen-pin connector, with the other is a two-pin connector. The sixteen-pin connector is labeled as RPL and the two-pin connector is labeled as OPTPL. The OPTPL connector has two additional diagnostic nomenclatures; X2 and CFX1. The X2 nomenclature will send signals back to the NTB/3TB board of the CFX1 nomenclature 120 VAC loads. This nomenclature is identical to the RPL X2 nomenclature. For all nomenclatures available with the two connectors refer to Tables 3 and 4 in the GEI-10016B manual, which has been included above in the manuals tab.

Frequently Asked Questions about DS200RTBAG2AFB

Is every pin in the sixteen-pin (RPL) connector connected when used on the DS200RTBAG2AFB model?

No. The pins that are consistently connected on the RPL connector are pins 1, 3, 5, 7, 9, 11, 13, and 15. Each of the pins has an individual nomenclature as well as an individual description. For example, pin 13 is known as the RX6 nomenclature. The RX6 nomenclature is described as the pilot input from the LTB for relay K25 on the RTBA model. For other nomenclatures and descriptions refer to Table 3 in the GEI-100167B Manual on page five.

How many terminal points are available on the DS200RTBAG2AFB model?

There are fifty-two terminal points available on the DS200RTBAG2AFB model. Each of the terminal points has its own nomenclature and description. One example of nomenclature and description is terminal point twenty-seven. The nomenclature on terminal twenty-seven is K232CM, with a description relaying K23 Form C contact number two. For more information on all of the nomenclatures, terminal points, and descriptions, refer to the GEI-100167 manual.

Reviews For DS200RTBAG2AFB

Internal Review
(5.0)

This RTBA board has two stab connectors on its surface. This includes the CPH stab connector used for the pluggable circuit control power, the positive side, as well as the CPN stab connector is used for the circuit control power negative side. This is also a pluggable circuit, featuring some of the bold customization strategies of its greater Mark V Series of turbine control systems. This DS200RTBAG2AFB Relay Terminal Board Assembly is repairable here at AX Control, with a standard lead repair time of one to two weeks based on availability. - AX Control Lead Technician
