About the DS200RTBAG3
General Electric designed the DS200RTBAG3 as a relay terminal board for the Mark V Turbine Control System Series of drive boards. The Mark V Series that this DS200RTBAG3 printed circuit board belongs to, as you have surely been able to gather based off of its full extended series name, has specific applications in the management and control systems of popular and compatible wind, gas, and steam turbine automated drive assemblies. While this DS200RTBAG3 printed circuit board's greater Mark V Series has specific applications in more recently-developed alternative energy applications, it is also definable as an obsolete General Electric product series; existing as a legacy product series whose production was discontinued in one of the many years past its initial product series release. This isn't to say that the DS200RTBAG3 Relay Terminal Board and its greater Mark V Turbine Control System Series are not well-desired General Electric products; they are both lauded as the Mark V Series exists as one of the finally-developed General Electric product series to feature the Speedtronic control system technology first introduced alongside the rollout of the Mark I Series in the mid to later 1960s. This DS200RTBAG3 printed circuit board or PCB for short is the original Relay Terminal Board manufactured for the Mark V Series, as evidenced by the lack of any trailing, revision-indicating digits in the DS200RTBAG3 functional product number.
Hardware Tips and Specifications
Installing this board provides the greater Mark V Turbine Control System Series automated drive with an additional ten relay spots. A wide range of GE brand exciters and drives can utilize the technology found on this card. Remote operation as well as the LAN I/O terminal can be used to drive the relays found on the board. DS200RTBAG3 features two types of relays, 4PDT and DPDT. Locations K27, K28, and K29 on the board all feature 4PDT type relays. Internally, these feature four 1A Form C contacts. The remaining relays, found in positions K20 through K26, are DPDT type. Each of these types include two 10A Form C contacts. Within all ten relays is a 110 VAC coil, allowing each spot to function properly. Every relay on the board is protected by a 130 VAC MOV (metal oxide varistor). Users can easily remove and replace all relays found on the board. Each of the individual relays in the assembly of this DS200RTBAG3 printed circuit board product offering contains their own LED diagnostic indicator. Each of these LED indicators corresponds to one relay alone, and they glow when their correspondent relay is supplied with energy. Each of these relays should also be populated with their own hardware configuration jumper, which select through use of the RPL connection cable as described in the above-attached DS200RTBAG3 instructional manual materials.

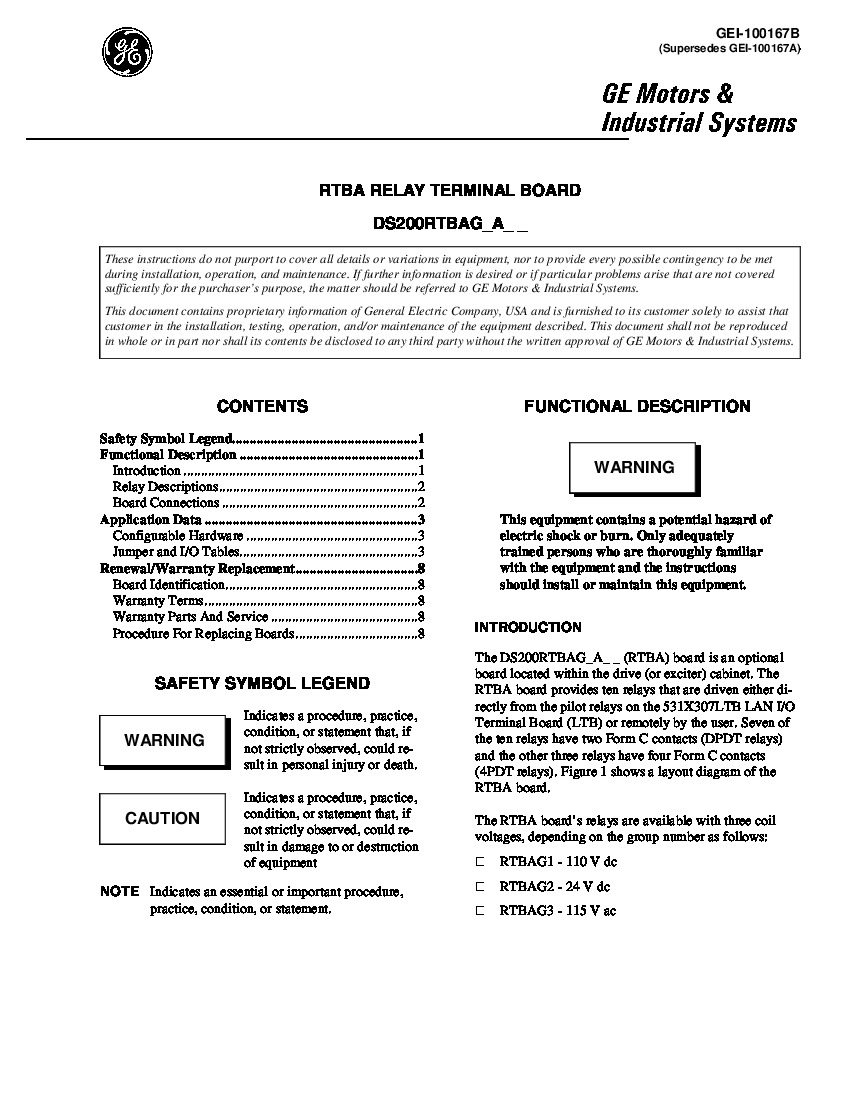

Any manufacturer-provided installation parameters should be met to ensure that both the board and drive operate as expected. A wiring guide for DS200RTBAG3 is available in both the series manual as well as the device datasheet. Technical support for all members of the Mark V series was originally provided by General Electric. AX Control’s trusted and knowledgeable sales team is ready to assist with all of your DS200RTBAG3 needs. Pricing and availability on all parts and repairs can be received by contacting our staff by phone or email. This DS200RTBAG3 Relay Terminal Board or Relay Terminal Board Assembly has a specific series of connectors that correspond to their own individual factory-printed nomenclature labels, just like the manually-moveable hardware jumpers mentioned before. Two specific stab-style connectors have been included in the normal Mark V Series assembly of this DS200RTBAG3 product offering, in order to supply crucial control powering to certain pluggable styles of DS200RTBAG3 Board integrated circuits. According to the DS200RTBAG3 instructional manual attached above, the usage of these two stab connectors can itself be selected by this DS200RTBAG3 PCB's robust selection of manually-moveable hardware jumpers. This DS200RTBAG3 Relay Terminal Board's stab connectors include:
- The CPH RTBA Board Positive Side Control Power Pluggable Circuit Stab Connector
- The CPN RTBA Board Negative Side Control Power Pluggable Circuit Stab Connector
Each of the two previously-listed stab connectors in the assembly of this DS200RTBAG3 Mark V Series printed circuit board product offering have been named through a combination of their specific factory-printed nomenclature labels, their Mark V Series compatible products, and finally the style of voltage and DS200RTBAG3 Board locations that they individually correspond to. Given this DS200RTBAG3 device's attribution to the Mark V Series, its group three Mark V Turbine Control System Series product grouping is pertinent to a number of basic specifications, including this DS200RTBAG3 device's K20-K29 relay designation, its acceptance of the 68A9663PAC115X and 336A5101PAC115 relays specifically, and finally its compatibility with a 115 V ac coil with 10 A DPDT contacts as well as a 115 V ac coil with 4PDT contacts voltage-rated at 1 A. Before making a final purchase decision on this DS200RTBAG3 product offering, it should come of something of a relief to realize that this DS200RTBAG3 printed circuit board exists as the firstly-developed product of its specific Mark V Series functional role; unedited by any significant artwork configuration or functional product revisions. Ships with guaranteed warrantied protection today.
