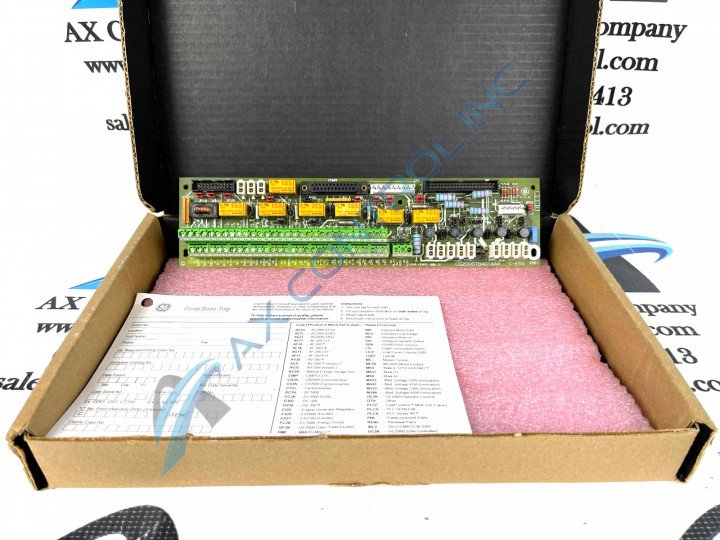

About the DS200STBAG1AAA
The DS200STBAG1AAA circuit board is just one version within AX Control’s stock of a basic drive terminal board. This terminal board is typically used in conjunction with Mark V Turbine Control systems. The Mark V Speedtronic system Series was designed for the management and control of industrial gas and steam turbines, as indicated by the previously-included full extended series name. Also as referenced in this DS200STBAG1AAA PCB's above series name is its Speedtronic status, which is a reference to the Speedtronic control system technology that appears in the internal assemblies of many of its products. The Speedtronic control system technology featured in this DS200STBAG1AAA Basic Drive Terminal Board's greater Mark V Series was originally seen with the rollout of the previous Mark I Series in the mid to later 1960s, and is the reason why this DS200STBAG1AAA Board still attracts something of a niche interest on the greater figurative automated industrial marketplace. While this DS200STBAG1AAA PCB's greater Mark V Series may have the coveted Speedtronic technology in a number of its offerings, it still must be considered obsolete as a whole, as it exists as a now General Electric-discontinued legacy product series whose manufacture was halted due to a retailer-recognized functional series obsolescence in one of the many years past its initial release.
. Hardware Tips and Specifications

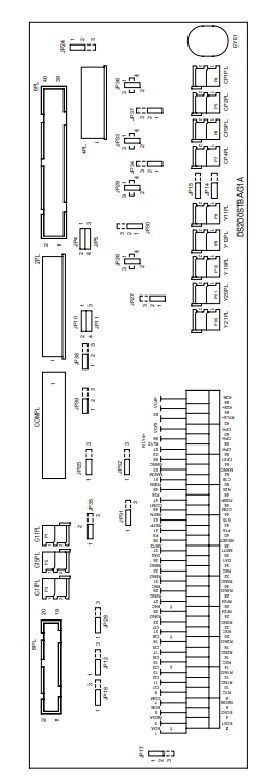

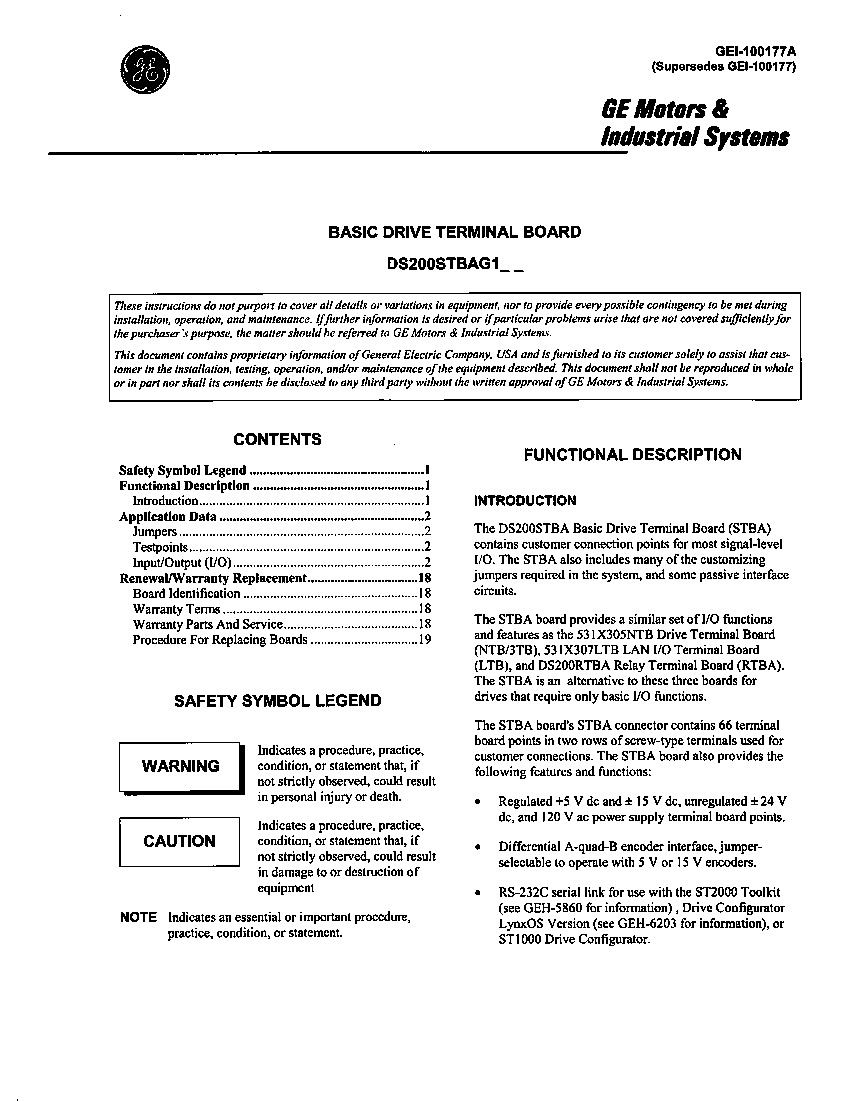

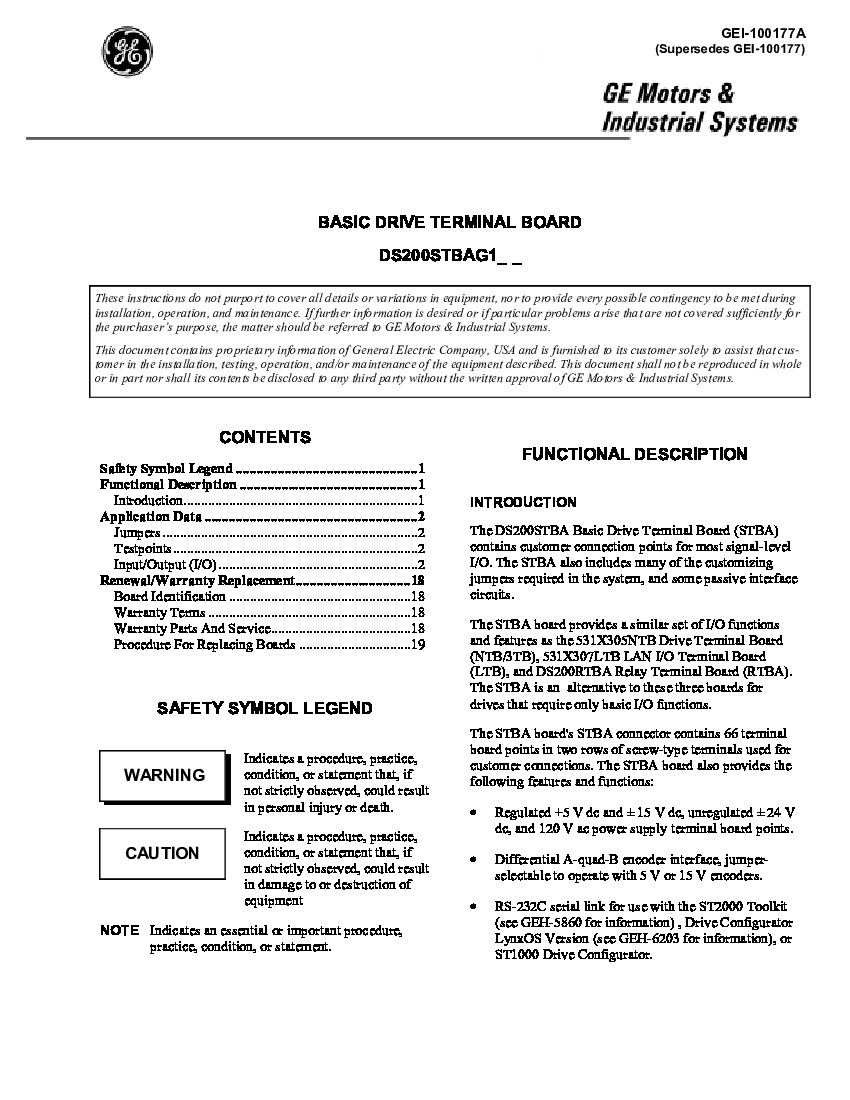

The DS200STBAG1AAA board provides similar customer connection points and signal-level I/Os as the 531X307LTB LAN or the DS200RTBA boards. This board is considered an alternative for those boards. This board is designed with sixty-six terminal points. These are positioned as two rows of screw-type terminals. The connections are regulated +5 VDC, regulated +/-15 VDC, and unregulated +/- 24 VDC. They may also be used as 120 VAC power supply points. The board has an A-quad-B encoder interface that is jumper-selectable for use with 5 V or 15 V encoders. Several unique test points have been included in this DS200STBAG1AAA Basic Drive Terminal Board's normal Mark V Series assembly for various voltage suppression purposes; each one of which should be accompanied by their own factory-printed nomenclature label. Some of this DS200STBAG1AAA PCB's individual testpoints include its:
- DA1 ±10 V dc analog output from drive control board Converter Test Point
- DA2 ±10 V dc analog output from drive control board Converter Test Point
- MET1 ±10 V dc analog output from drive control board Converter Test Point
- MET2 ±10 V dc analog output from drive control board Converter Test Point
- COM 0 volt common reference point for test signals Test Point

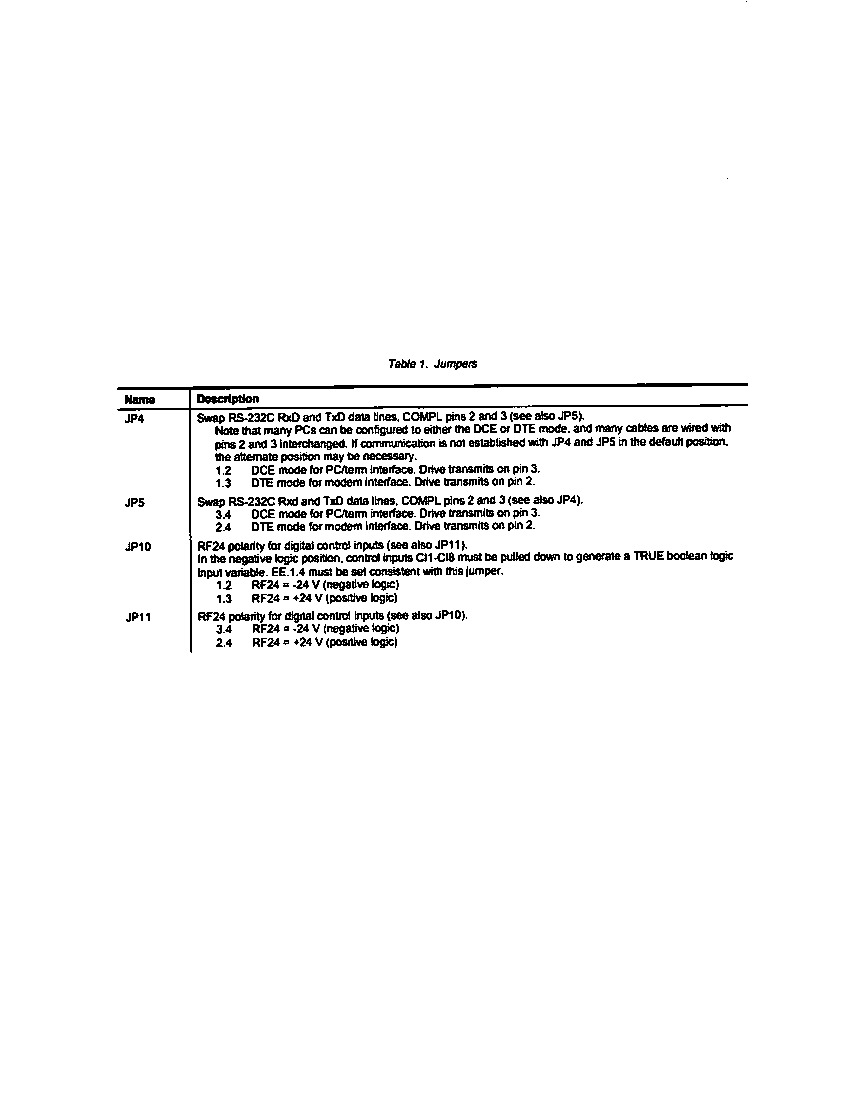

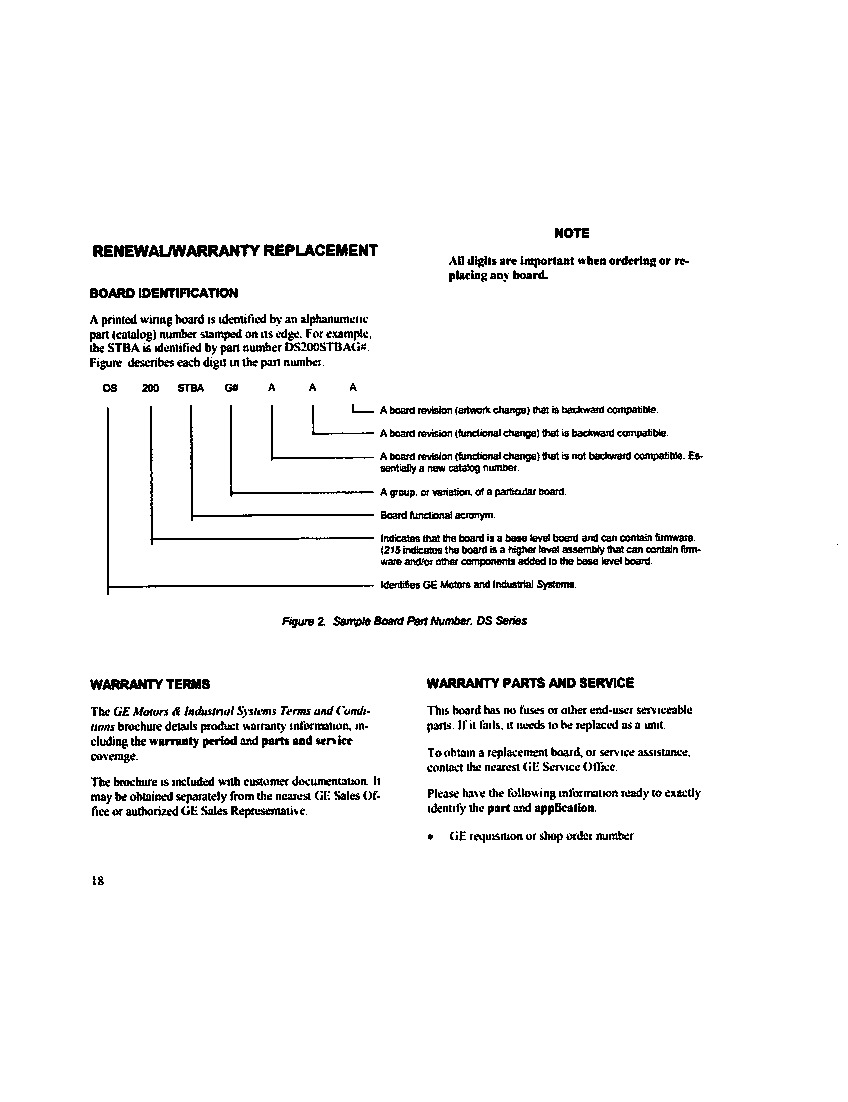

Additionally, the DS200STBAG1AAA has seven relays on its surface. Each of these relays has a contact rating of 120 V, 0.5 Amps. The relays are controlled by various inputs including software-controlled and jumper set inputs. Other board components include plugs, connectors, diodes, resistors, and capacitors. Refer to GE manuals and user guides for additional information about each individual connector, including direction, description, and nomenclature. This will assist you with the proper wiring of the board. Before making any ultimate purchase decision on this DS200STBAG1AAA product offering, it is important to note that it has been edited from its base-revised performance specifications and general dimensions through its attachment of two functional product revisions and an artwork configuration revision all rated at grades of "A". AX Control maintains on-hand stock of many GE Speedtronic parts so we can ship your orders as we receive your purchase orders. If you need expedited shipping for even faster service, please let our team know when you place your order.
