About the DS200TBSAG1

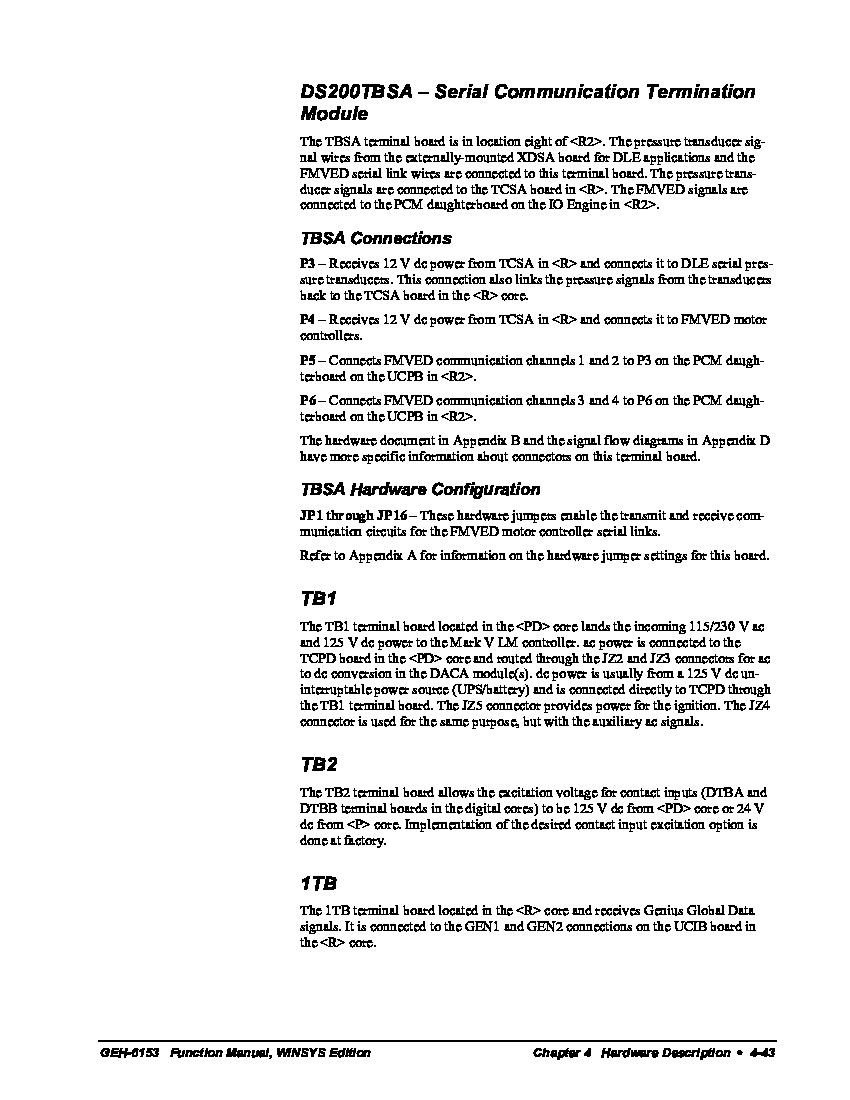

This module is one of the several internal components for the Speedtronic set of turbine regulation modules, the Mark V units. This printed circuit board is listed under the alphanumeric designation of DS200TBSAG1. The Mark V Series that this DS200TBSAG1 printed circuit board or PCB for short belongs to is a General Electric legacy series, as it has been discontinued in the years following its original release. While a legacy series, this DS200TBSAG1 product's Mark V Turbine Control System Series is one of the final General Electric product series to make use of their patented Speedtronic control system technology that was first introduced alongside the rollout of the Mark I in the later 1960s. The Mark V Series that this DS200TBSAG1 PCB belongs to has specific applications in the management and control systems of steam, gas, and wind turbine automated drive assemblies. This DS200TBSAG1 printed circuit board is truly better-definable as a Serial Communication Termination Module, based on this functional description's appearance in original Mark V Series instructional manual materials.
Hardware Tips and Specifications
This printed circuit board is outfitted as an LM Transducer Terminal Board, although it does have an official functional product description as a Serial Communication Termination Module. It is primarily built to be outfitted into Mark V units that are equipped for aeroderivative gas powered power generation turbines. The DS200TBSAG1 is outfitted to be able to convert energy from the input into the output energy. In order for the transduction to occur, the energy needs to be converted into a new form as well.
Given the specific intended dual functionality of the DS200TBSAG1 device, it should come as no real surprise that this DS200TBSAG1 PCB makes use of its own series of specific hardware component inclusions and specifications. Visually, this module is able to be identified by its particular dimensions and appearance. This circuit board is thin, yet with several integrated nodes to process the energy transduction. This DS200TBSAG1 product, given its modular status within the Mark V Series, is considered to accept three separate terminal boards as daughterboards in its internal assembly; these terminal boards exist with the factory-printed nomenclature labels TB1, TB2, and 1TB, with each terminal board handing different styles of signal and voltage for this DS200TBSAG1 device. This DS200TBSAG1 Serial Communication Termination Module offers a series of customizable hardware options that manifest themselves in its collection of manually-moveable hardware jumpers; each of which is accompanied by their own factory-printed nomenclature label ranging from JP1 to JP16. Generally, these hardware jumpers select for the reception and transmittal of various communication circuits for the FMVED motor controller serial links within the greater Mark V Series drive assembly, although their specific applications are discoverable through the DS200TBSAG1 instructional manual available above. This DS200TBSAG1 product's base circuit board and attached terminal boards should be well-protected through use of the thick rudimentary normal style of PCB coating that has been chemically-applied.
This transducer printed circuit board is available from us here at AX Control Inc, although it is important to realize that this specific DS200TBSAG1 product offering is the base-revised version of the Mark V Series' Serial Communication Termination Module, and doesn't make use of any singular product revision in its assembly, functional or otherwise. The DS200TBSAG1 is available for purchase as both a brand new, totally unused piece of surplus material from GE, or as a secondhand, re-optimized part of our used industrial automation hardware.The Speedtronic series of Mark V units are able to be purchased as well from our inventory. These General Electric products are covered with an unparalleled, comprehensive warranty, as GE’s original coverage no longer applies.
