About the DS200UCIAG3AAA

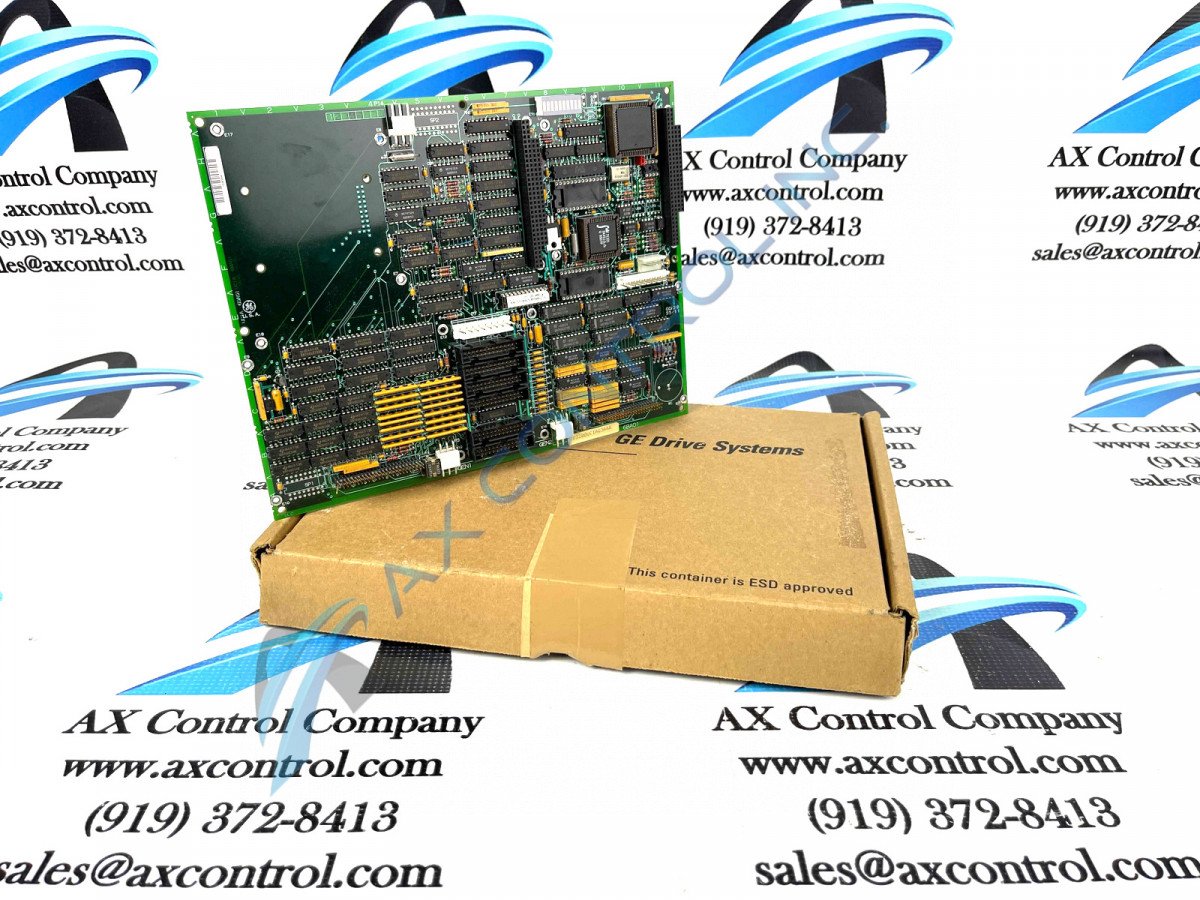

The DS200UCIAG3AAA is part of the Mark V Speedtronic system. This system is one of the later systems from General Electric designed for control of industrial gas and steam turbine systems, and also one of the final General Electric Mark Series to make use of the retailer's patented Speedtronic control system technology. While this is true of the Mark V Series, it is also considered to exist as a now-obsolete legacy series due to its eventual manufacturing discontinuation in the many years following its initial release. This DS200UCIAG3AAA PCB has a normal assembly style, although its Mark V Series assembly is edited by the inclusion of three significant product revisions; two functional revisions and an artwork configuration revision all standing at manufacturer ratings of A. As indicated by this DS200UCIAG3AAA product offering's official functional description as a UC2000 Motherboard, it is safe to assume that this DS200UCIAG3AAA device was created more specifically for General Electric's now-obsolete UC2000 Mark V Subseries.
Hardware Tips and Specifications
The DS200UCIAG3AAA functions as a UC2000 mother board within its greater Mark V Series. This board lives within the <R> core and offers multiple connection points to help interconnect multiple other components within the system. This includes a hard drive, an ARCNET no-LAN driver board (designated PANA), a UCPB CPU daughterboard, and up to two GENI boards. Signals from these components transmit between the DS200UCIAG3AAA, including fuel skid pressure transducer signals from the TCSA board that are transmitted via two jumper bus connectors to the control sequence program. Other board connectors on the DS200UCIAG3AAA are responsible for other jobs. The GEN1 (P3) is a serial port connector to a terminal board responsible for Genius inputs. The GEN2 (P4) serial port connector has similar responsibilities. Other connectors are used for power or communications. The J1 jumper allows for clock enable.
Additional information about this board can be sourced through General Electric's original documentation. While this would have been sent out to you with your original purchase from the OEM, we understand that sometimes paperwork can be lost or misplaced; especially in the case of this DS200UCIAG3AAA product, whose mentioned attribution to the now-obsolete Mark V legacy product series buries most of its original instructional manual-available hardware information. With all of this in mind, the DS200UCIAG3AAA functional product number itself can be considered a strong primary source of DS200UCIAG3AAA board-pertinent hardware component and component specification information, beginning with the dual-functional DS200 series tag. This tag describes the DS200UCIAG3AAA board's domestic location of original manufacture as well as its normal style of Mark V Series printed circuit board assembly. Some of the other relevant hardware details revealed through this DS200UCIAG3AAA functional product number include the DS200UCIAG3AAA board's:
- UCIA functional product abbreviation
- Group 3 Mark V Series grouping
- Normal PCB Coating Style
- A-rated primary functional revision
- A-rated secondary functional revision
- A-rated artwork configuration revision
