About the DS200UCPBG5ADA

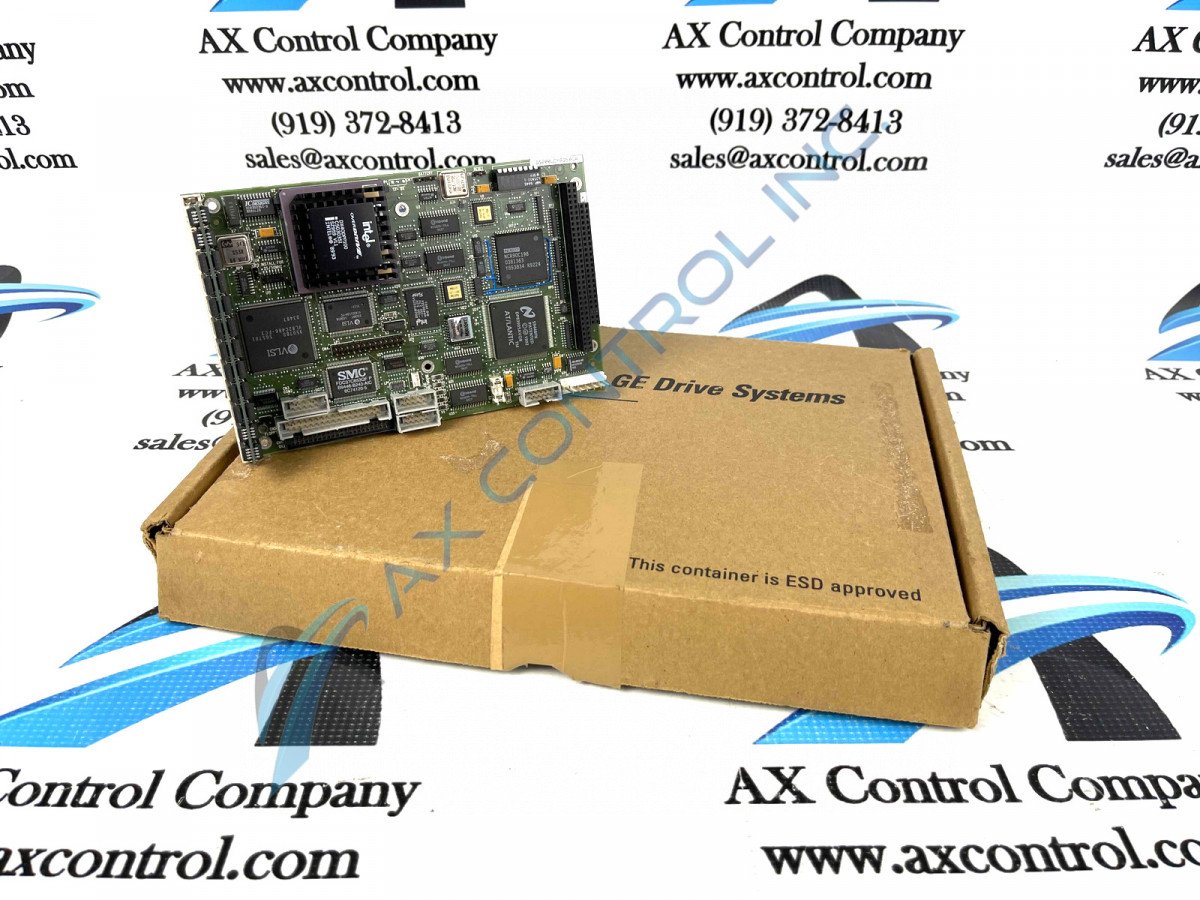

The DS200UCPBG5ADA functions within the GE Mark V turbine control system as an IO Engine CPU Board. The Mark V was created by GE as one of their Speedtronic turbine control systems used for the management of industrial steam and gas turbine systems. This is one available version of this board within AX Control’s inventory; the original IO Engine CPU Board manufactured for placement in the Mark V Turbine Control System Series is the DS200UCPBG5 parent IO Engine CPU Board missing all three of this DS200UCPBG5ADA product offering's three significant product revisions. If this version doesn’t meet your exact requirements please look through our inventory for other available versions. The Mark V Series that this specific DS200UCPBG5ADA printed circuit board or PCB for short was originally manufactured for is not in production today, as it exists as a now-obsolete legacy product series discontinued due to obsolescence in one of the many years following its initial release. With this being true, this DS200UCPBG5ADA PCB's greater Mark V Series is still something of a desirable General Electric product series, as it exists as one of the final GE Mark product series to make use of the patented Speedtronic control system technology first seen alongside the release of the Mark I Series in the late 1960s.

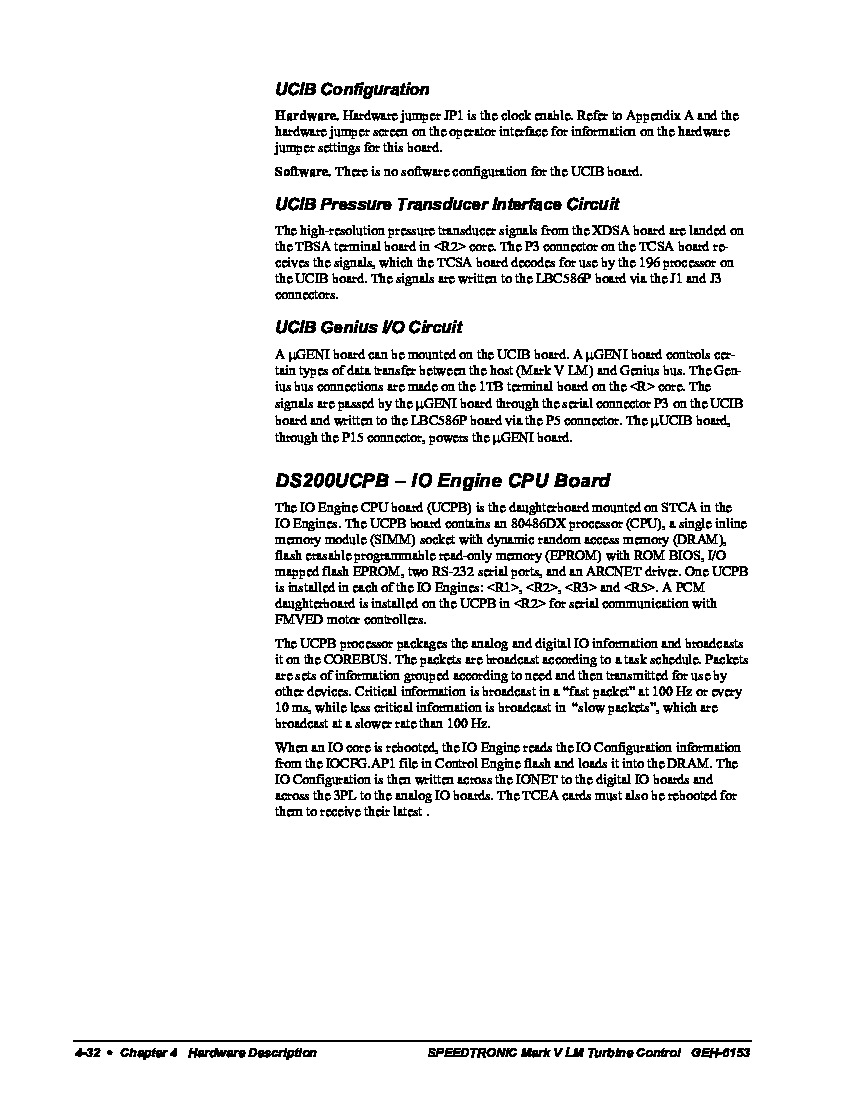

Hardware Tips and Specifications
The DS200UCPBG5ADA is built using a SIMM (single inline memory module) socket that has DRAM (dynamic random access memory) and EPROM (flash erasable programmable read-only memory). The board also has two RS-232 serial ports and an ARCNET driver. This board is used within the <R5> I/O engine; however, a UCPB board is used in the <R1>, <R2>, and <R3> IOs. The IO engine of the Mark V system is designed to read I/O configuration if the IO core is rebooted. I/O configuration information is written across IONET to all the digital I/O boards to any connected analog I/O boards. Since the UCPB processor packages both analog and digital I/O information so it can be broadcast to the COREBUS, this configuration update will affect the DS200UCPBG5ADA board. While this DS200UCPBG5ADA IO Engine CPU Board is a member of the now-obsolete Mark V Turbine Control System Series, it is still surprisingly offered alongside some originally-printed instructional manual materials online. With this being the case, many of this DS200UCPBG5ADA PCB's different connectors can be contextualized in terms of their factory-printed nomenclature labels and specific functionality. Some of this DS200UCPBG5ADA printed circuit board's various connectors include:
- The ARCNET STCA Board COREBUS Connector
- The COM1 STCA Board Terminal Interface Monitor Connector
- The COM2 Connector
- The J1 STCA Board Bus Connector
- The J2 STCA Board Bus Connector
- The IDE Connector
Each of the above-listed connectors in the normal assembly of this DS200UCPBG5ADA Mark V Series device have been named through a combination of their individual factory-printed nomenclature labels, their Mark V Series external and compatible products, and finally the specific type of signal that they are meant to transmit. The above-listed COM2 and IDE Connectors have not been listed as such, as they only exist as obsolete, vestigial structures not meant to be accessed by the DS200UCPBG5ADA Board and Mark V Series drive administrator during normative functioning. The DS200UCPBG5ADA is both hardware and software configurable. The board has three hardware jumpers on its surface. These include one used for factory test and one used to select 486 local bus speed. The board also has DIP switches that can be used to set the COREBUS address for any given I/O Engine. In terms of this DS200UCPBG5ADA device's software configuration, any configuration done in the assembly of this DS200UCPBG5ADA IO Engine would be handled by its TMIA software product. This device is important as it stores and contains this DS200UCPBG5ADA PCB's IO configuration data for its critical FMVED serial download software, its WATT and VAR input data and a total of three pulse rate inputs. Before making any final purchase decision on this DS200UCPBG5ADA Mark V Turbine Control Systems Series printed circuit board product offering, it is crucial to understand that its originally-introduced performance specifications and dimensions have almost certainly been altered as a function of its normal Mark V Series assembly's addition of three significant product revisions rated at grades of A, D, and A respectively. Use GE manuals for additional information.
