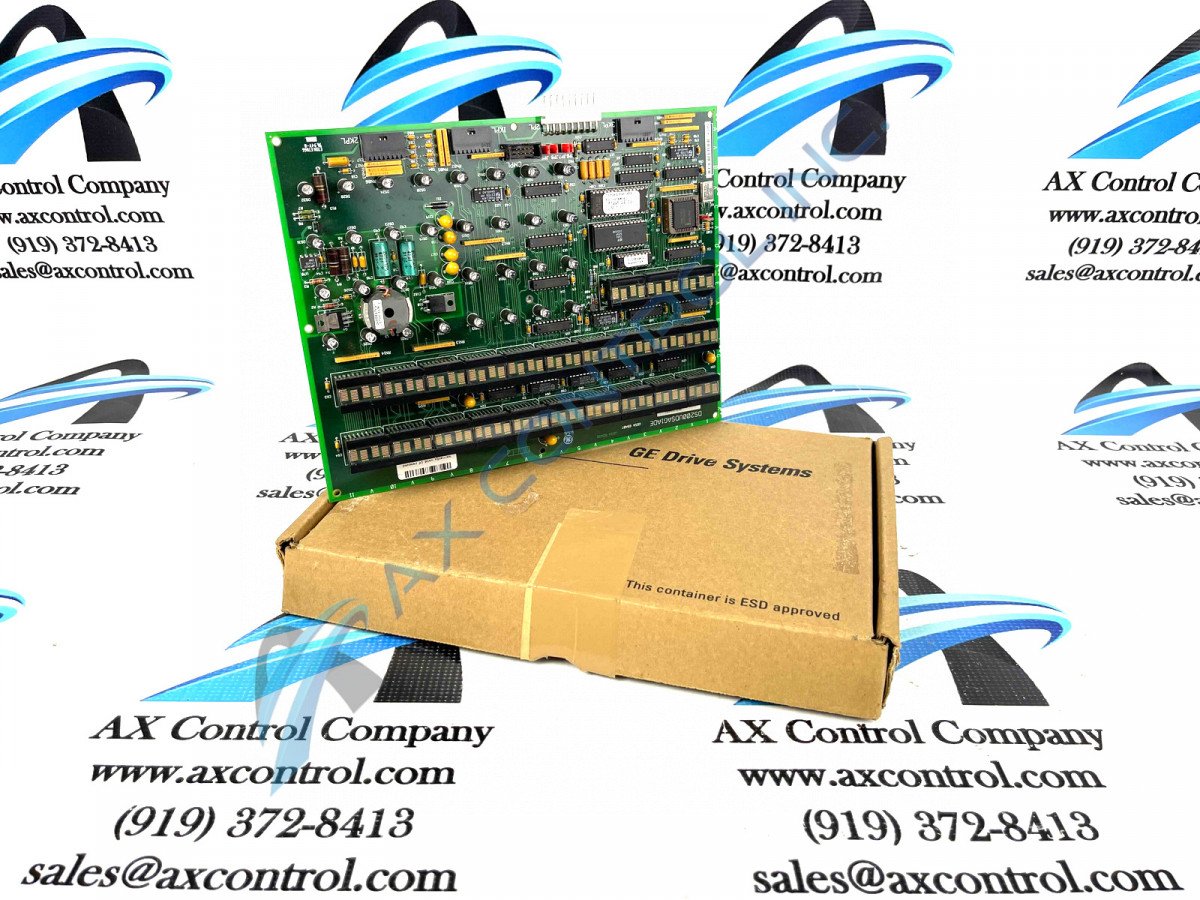

This DS200UDSAG1A PCB is an Excitation Board originally manufactured for General Electric's Mark V Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200UDSAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200UDSAG1A
  • SKU: DS200UDSAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200UDSAG1A Technical Specifications

Manufacturer GE General Electric
Product Series Mark V
Part Number DS200UDSAG1A
Functional Description Excitation Board
Functional Abbreviation UDSA
PCB Coating Normal Coating
Functional Revision A

Product Description

The DS200UDSAG1A Excitation Board sends and receives signals from other boards and though a 40-pin connector that populates the board. Typically the DS200UDSAG1A board receives signals from other boards and devices in drive. The microprocessor on the DS200UDSAG1A board processes the signals and uses the other components on the board for processing also. Information is provided to the operator about the state of the board through the 4-character displays and the 32 LEDs that populate the board. When processing of the signals is complete, the resulting  new information is sent to other components and boards within the Mark V Series. It is critical that all the signals make the connection on the 40-pin connector. However, the ribbon cable is easily damaged due to the lack of support given to the plastic connect on the end of the ribbon cable. To keep the ribbon cable in tact, never tug the ribbon cable out of the connector on the board. Instead, firmly hold the plastic connector on the end of the ribbon cable and gently pull it out of the connector. Follow these guidelines to keep the 40-pin ribbon cable and the connector at the end of the cable connected.

While the 40-pin connector attached to this DS200UDSAG1A Excitation Board is certainly important, it is in no way the only relevant piece of hardware adopted into this Mark V Series product's assembly. In addition to its 40-pin connector and ribbon cable connectors, the GE Excitation Board DS200UDSAG1A features one 1 80196 microprocessor and several erasable programmable read-only memory (EPROM) modules. The GE Excitation Board DS200UDSAG1A also is populated with 21 4-character displays and 32 LEDs, which have been included for various diagnostic testing purposes.

Before making a purchase decision on this DS200UDSAG1A Excitation Board, it is crucial to identify the fact that this DS200UDSAG1A Mark V Series circuit board is a modified version of the original DS200UDSAG1A parent product; possessing a singular functional revision rated at an A grade.

Frequently Asked Questions about DS200UDSAG1A

What Mark V Series group is this DS200UDSAG1A Excitation Board a member of?

This DS200UDSAG1A Excitation Board is a member of the 1st group of Mark V Series products, as represented by the G1 series grouping tag in the DS200UDSAG1A functional product number.

Does this DS200UDSAG1A Excitation Board feature any insulated drill holes in its assembly?

Yes. This DS200UDSAG1A Excitation Board makes use of several factory-drilled insualted holes in its asssembly for installation purposes.
