About the DS2020FEANRP050A
The DS2020FEANRP050A is a GE Speedtronic Mark V 50 Amp Power supply. It was made as a part of GE’s turbine control systems. It is now a legacy series and may be difficult to find. AX Control does attempt to keep this part in stock as a refurbished or new surplus stock part. The Mark V Series that this DS2020FEANRP050A Modular Assembly belongs to has specific applications in the management and control systems of popular and compatible wind, steam, and gas turbine automated drive assemblies. This DS2020FEANRP050A Module's greater Mark V Series, while pertaining to some newly-developed alternative energy applications, has to be considered a legacy series as it was discontinued for manufacture due to a retailer-identified obsolescence in the many years following its initial release by GE. With this being true, this DS2020FEANRP050A Field Exciter Module's Mark V Series is still considered quite the desirable option generally on the automated industrial marketplace, given the fact that it exists as one of the final-developed GE product series to make use of the patented Speedtronic control system technology first adopted in various offerings of the initial Mark I Series in the 1960s. This DS2020FEANRP050A PCB is not the original product of its intended Mark V Series functionality; that would be the DS2020FEANRP050 parent Field Exciter Module missing this DS2020FEANRP050A PCB's A-rated functional product revision.
Hardware Tips and Specifications

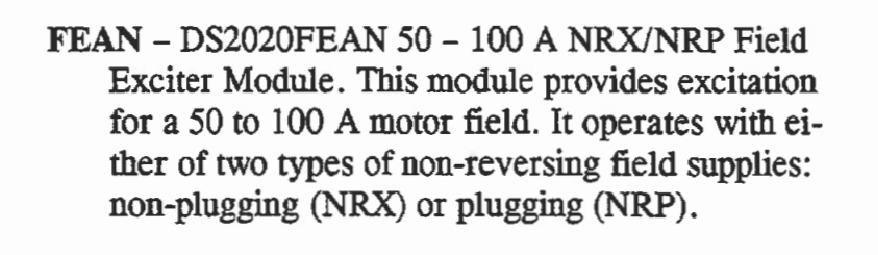

As with any printed circuit board modular assembly available in our new and reconditioned inventory of General Electric products here, this DS2020FEANRP050A PCB's specific functionality as a Field Exciter Module is developed by its normal Mark V Series assembly's acceptance of a specialized selection of hardware components and hardware component specifications. The DS2020FEANRP050A is also called a Field Exciter. It is 600 volts, 50/60 Hz, and is single-phase. It has a DC output of 500 volts and 50 amps. It weighs roughly 56 lbs. The DS2020FEANRP050A is in a long rectangular metallic chassis. There are two open sides that can allow the user access to the internal circuitry of the power supply. On the back of the chassis are four factory drilled mounting holes in each of the four corners. On the closed sides of the chassis are also factory drilled holes. On the bottom of the unit are two large cables that connect and screwed on to connectors. They are kept in place using two nuts. As indicated in the DS2020FEANRP050A instructional manual attached above for your convenience, this DS2020FEANRP050A Field Exciter Module operates with two distinct types of non-reversing field supplies; both NRX non-plugging supplies and NRP plugging supplies. Generally, this DS2020FEANRP050A product offering's voltage suppression and protection strategy involves its internal assembly's adoption of a series-standardized group of voltage-limiting hardware components including various styles of rectifiers, capacitors, diodes, and integrated circuits.
There are many components that make up the actual circuit board of the DS2020FEANRP050A. There are four large electrolytic capacitors that are rated 660 VAC. They are identical. Next to the set on the left are fourteen black resistors, four blue resistors, twelve yellow capacitors, and thirteen grey diodes. There is a 10-pin male connector on the top left side of the card that is just above four white transformers. For more information about this power supply unit, please consult the datasheets, application manuals, and information guides provided by General Electric. If your manual has been misplaced, please let one of our staff members know as you are purchasing the DS2020FEANRP050A and we will attempt to locate a new one for you if possible. Given the fact that this DS2020FEANRP050A printed circuit board's greater Mark V Series exists as a now-obsolete legacy product series, this DS2020FEANRP050A PCB's originally-produced instructional manual materials are largely unavailable online. With this being true, the DS2020FEANRP050A functional product number becomes a primary source of this DS2020FEANRP050A personalized product page's information as it codes for a series of general details in consecutive functional naming elements. For instance, the DS2020FEANRP050A functional product number begins with the dual-functional DS200 series tag dictating this DS2020FEANRP050A PCB's normal Mark V Series assembly and its domestic original manufacture location. Some of the other relevant informational nuggets revealed through functional product number include this DS2020FEANRP050A Module's:
- FEAN functional product acronym
- RP05 Style of PCB coating
- Group 5 Mark V Series product grouping
- A-rated primary functional revision
