The IS200ATBAG1AAA model from General Electric is an Application I/O Terminal board as part of the Mark VI IS200 series to provide terminal block connections. This is one of the G1AA revisions which can be used with a solid-state relay drive on the return side and I24RTN connections.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200ATBAG1AAA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200ATBAG1AAA
SKU: IS200ATBAG1AAAGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200ATBAG1AAA Technical Specifications

Part Number	IS200ATBAG1AAA
Manufacturer	General Electric Company USA, GE Industrial Systems
Series	Mark VI IS200

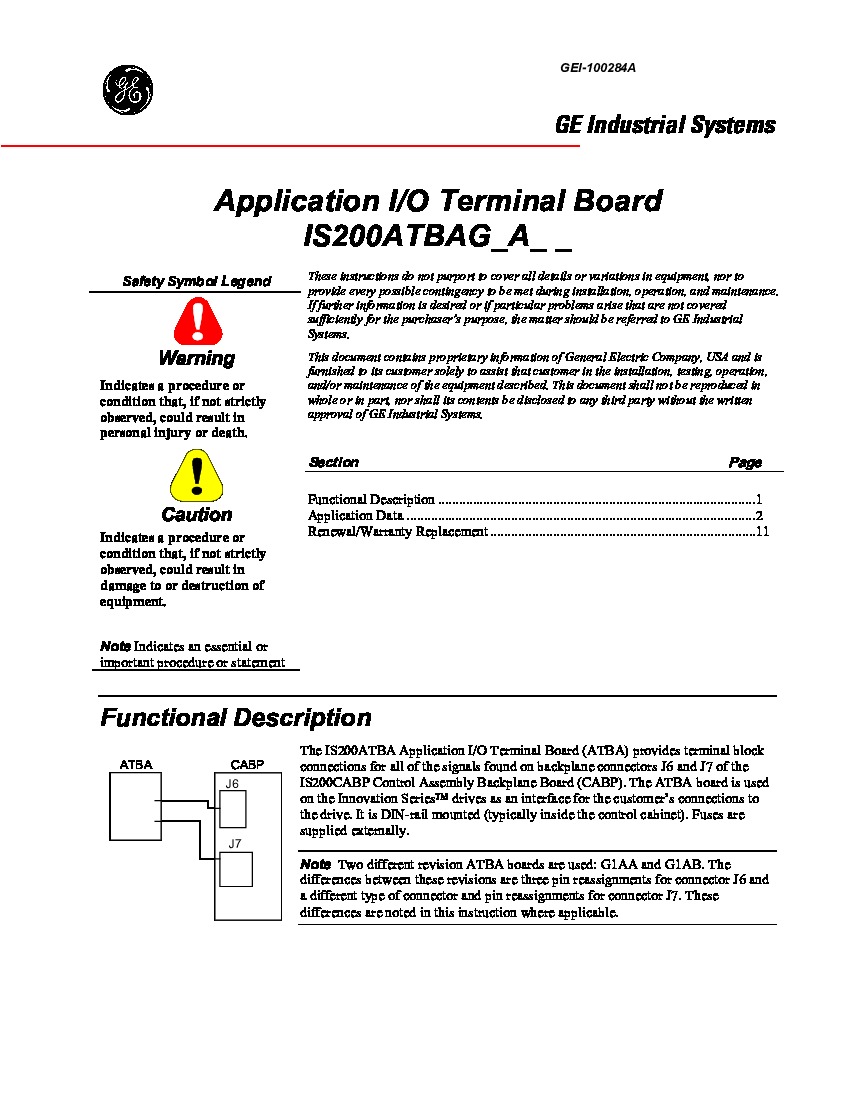

Instruction Manual	GEI-100284A
Functional Acronym/Abbreviation	ATBA
Product Type	Application I/O Terminal Board
Connection Rating for J7 Connector	50 V
SSRN Description	Solid State Relay Driver Return Side and I24_RTN for G1AA Boards

Frequently Asked Questions about IS200ATBAG1AAA

How are the fuses on the IS200ATBAG1AAA model supplied to the board itself?

When fuses are used with the IS200ATBAG1AAA model, they will be supplied externally, meaning an outside connection is needed to ensure that the ATBA model receives all of the fuses needed to properly operate the model. In conjunction with the fuses needed on the model, there is no adjustable hardware meaning that you can not adjust the way that the ATBA board will operate.

It has been mentioned that there are different revision groups concerning the ATBA models; what are the differences in the revision groups, and how does it affect the IS200ATBAG1AAA board?

The two revisions of the ATBA models are G1AA and G1AB; the IS200ATBAG1AAA model falls under the G1AA revision umbrella. The differences between the two groups are the pin reassignment for connector J6 and different connection and pin reassignments for the J7 connector. The main pin reassignment for the J6 connector is the SSRN, which is only available on the G1AA models, such as this unit. A full list of the ATBA G1AA revision board connectors can be found on page six of the GEI-100284A Application I/O Terminal Board Instruction Manual.

Product Description

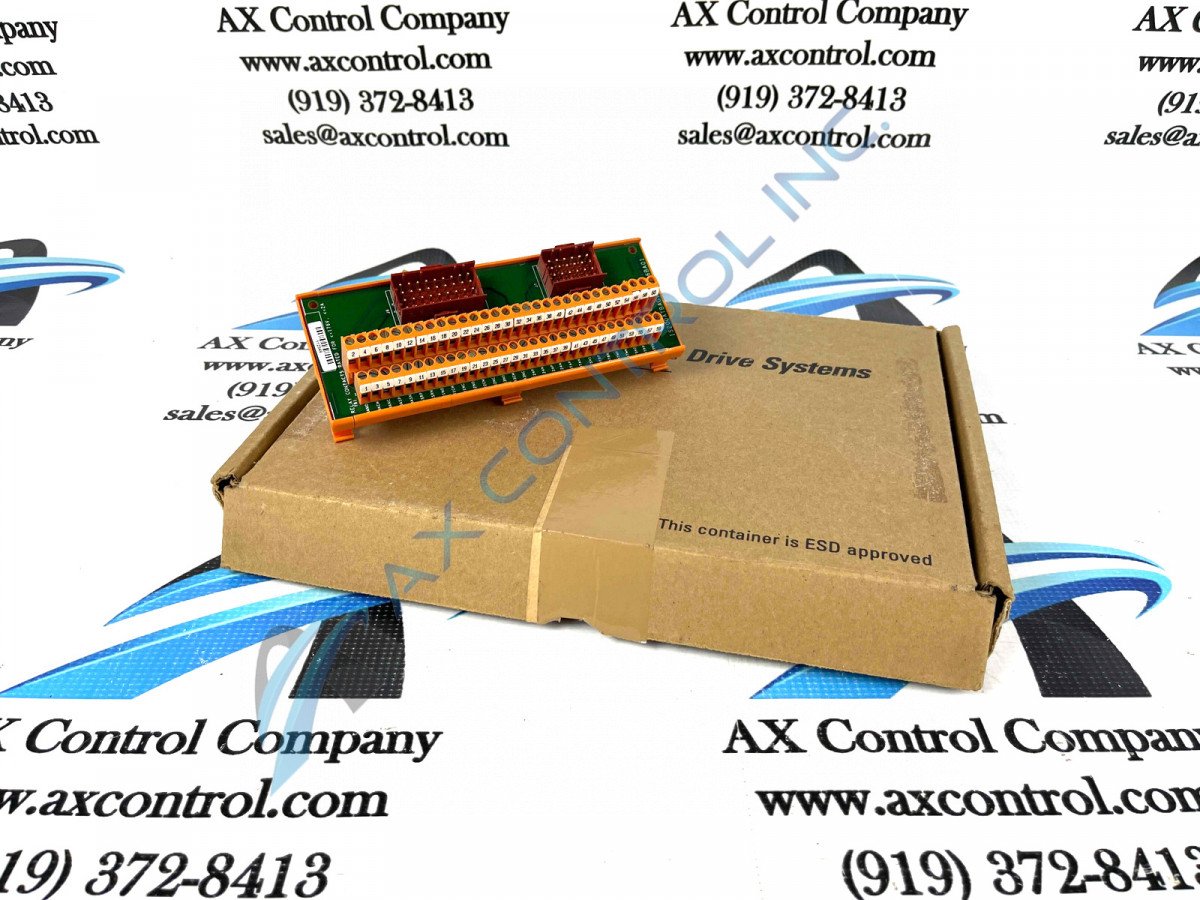

The IS200ATBAG1AAA is an Application I/O Terminal Board designed for the Mark VI series. The IS200ATBAG1AAA provides terminal block connections for the signals found on backplane connectors J6/J7 of the Control Assembly Backplane Board (CABP.) This board is used on Innovation Series drives. These boards are DIN-rail mounted inside the control cabinet, with fuses externally supplied. This model is part of the G1AA revisions, which has three pin reassignments, one of these reassignments is I24N which has an isolated 24-volt return.

The IS200ATBAG1AAA has one terminal block with sixty positions to connect to the J6/J7 connectors on the CABP board. This terminal block has two lines of thirty connectors. The connectors are labeled in blocks, as follows: system fault string, local fault string, digital input, analog inputs, pot, analog outputs, MA pilot, MA Fdbk, SSR, relay contacts, isolate power, and tachometer. These are bordered on one edge by a cable shield and on the other by the IS200ATBAG1AAA two connectors, which are labeled J6 and J7. J6 is a 36-pin vertical male pin connector (4 x 9.) J7 is a 25-pin vertical male pin connector.

The IS200ATBAG1AAA installs nine metal screws and washers into standoffs. When the board is installed, the screws must be fully tightened to secure the board in place. Full installation instructions can be found in GE publication GEI-100284. As well as installation instructions, there are also instructions on what is needed when replacing the board as well as to replace the board within the chosen drive.

Reviews For IS200ATBAG1AAA

Internal Review

(5.0)

This Mark VI IS200 Application I/O Terminal (ATBA) board allows users to connect external components to the Innovation Series drive. This board works with the Control Assembly Backplane Board (CABP) to provide terminal block connections for any of the signals found on the CABP backplane connectors. When the model is used with the Innovation Series, it will interface the customer's connections to the drive. - AX Control Tech
