About the IS200BICLH1B
The IS200BICLH1B is a printed circuit board designed as a component for the Mark VI series. This series is part of the Speedtronic line from General Electric, which has been managing steam or gas turbine systems since the 1960s. The Mark VI is built with a Windows-based operator interface. It has DCS and Ethernet communications. The Mark VI Turbine Control System Series that this IS200BICLH1B product belongs to is actually quite the significant functional upgrade upon the Mark V Turbine Control System Series of the same name that immediately preceded it, as the Mark V Series' specific possible applications are limited to the control systems and management systems of General Electric accepting gas and steam turbines alone, shirking the Mark VI Series' additional alternative energy-based wind turbine functional applications. This IS200BICLH1B printed circuit board's Mark VI Turbine Control System Series is additionally desirable as is is actually one of the final-developed GE Mark product series utilizing the above-described Speedtronic technology.
Hardware Tips and Specifications

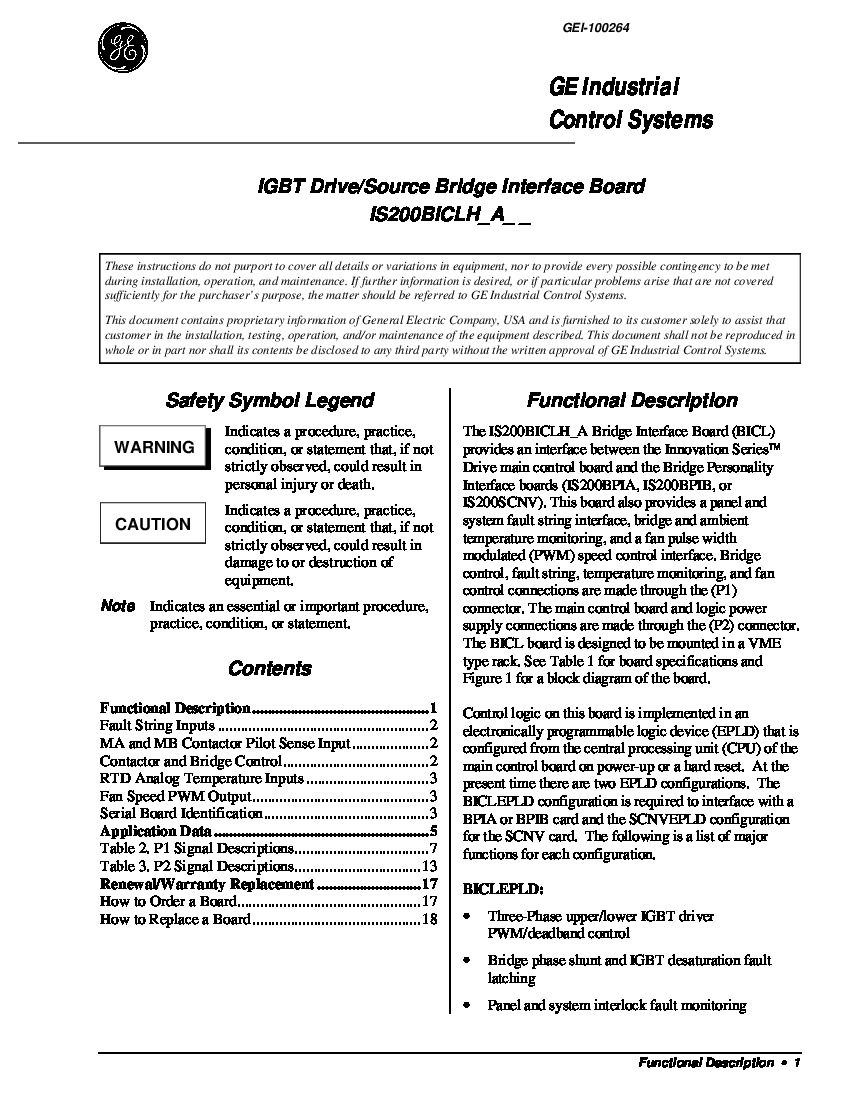

The IS200BICLH1B is a Bridge Interface Board. This provides an interface between Bridge Personality Interface boards like BPIA/BPIB and the main control board of the Innovation Series Drive. This board has an MA Sense Input with a voltage of 24-115 V ac/dc and loading of 4-10 milliamps. The IS200BICLH1B is built with a faceplate. This narrow black colored panel is inscribed with the board id number, the manufacturer logo, and has one opening. The board is marked “Install in slot 5 only” on its bottom third. The board is built with four relays. Each relay is printed with a relay diagram on its upper surface. The board also has a serial 1024-bit memory device. The board does not include any fuses, test points, LEDs, or adjustable hardware. The IS200BICLH1B may be damaged if connections to the board are adjusted, removed, or inserted while power is still applied to the board. Handling precautions and replacement procedures are published in GEI-100264. The IS200BICLH1B will be protected by anti-static material during shipment to protect from static discharge. Your sales representative will help you choose your best shipping option from our various carriers. AX Control can ship many in-stock parts as quickly as next day. We ship everywhere around the globe not currently affected by US embargo.
This IS200BICLH1B printed circuit board product offering from General Electric is commonly known as a PCB for short, for conversational convenience's sake. The totality of its hardware component specifications and details sourced above have been made available from a diligent service technician-guided visual inspection of the IS200BICLH1B printed circuit board itself, which was only deemed as necessary for the purposes of this IS200BICLH1B personalized product page here due to the Mark VI Series' only sparsely-available instructional documentation existing online. This IS200BICLH1B PCB's Mark VI Series attribution benefits it greatly in this case, as its functional IS200BICLH1B product number itself can be retrieved as a decent primary source of IS200BICLH1B Board hardware information in this instance. The IS200BICLH1B functional product number codes for a series of pertienent IS200BICLH1B Board hardware details in a series of consecutive naming elements. For starters, this IS200BICLH1B product number begins with an iteration of the dual-functional IS200 series tag indirectly asserting this IS200BICLH1B product's normal Mark VI Series assembly on top of its obvious domestic original manufacture location. Some of the other relevant IS200BICLH1B Board details described in this manner include this IS200BICLH1B product's:
- BICL functional product acronym
- Group one Mark VI Series grouping
- Conformal PCB coating style
- B-rated functional revision
