About the IS200DSCBH1AAA
The IS200DSCBH1AAA is a device known as a din rail terminal serial board. This is a type of printed circuit board or PCB. This circuit card was produced for the Mark VI series by General Electric or GE. The Mark VI is the latest of several series created in the Mark line of gas and steam turbine controls. The Mark VI Turbine Control System Series that this IS200DSCBH1AAA PCB belongs to, as it is known at length, must be considered quite the noticeable functionality-minded upgrade upon the Mark V Turbine Control System Series of just about the same full extended series title that immediately preceded it, as the Mark VI Series added the alternative energy-based wind turbine possible functional application onto the gas and steam-based turbine environments already established with the rollout of the Mark V Series. This IS200DSCBH1AAA product's Mark VI Series is also generally desirable as it is one of the final-released GE Speedtronic Mark Series iterations.
Hardware Tips and Specifications

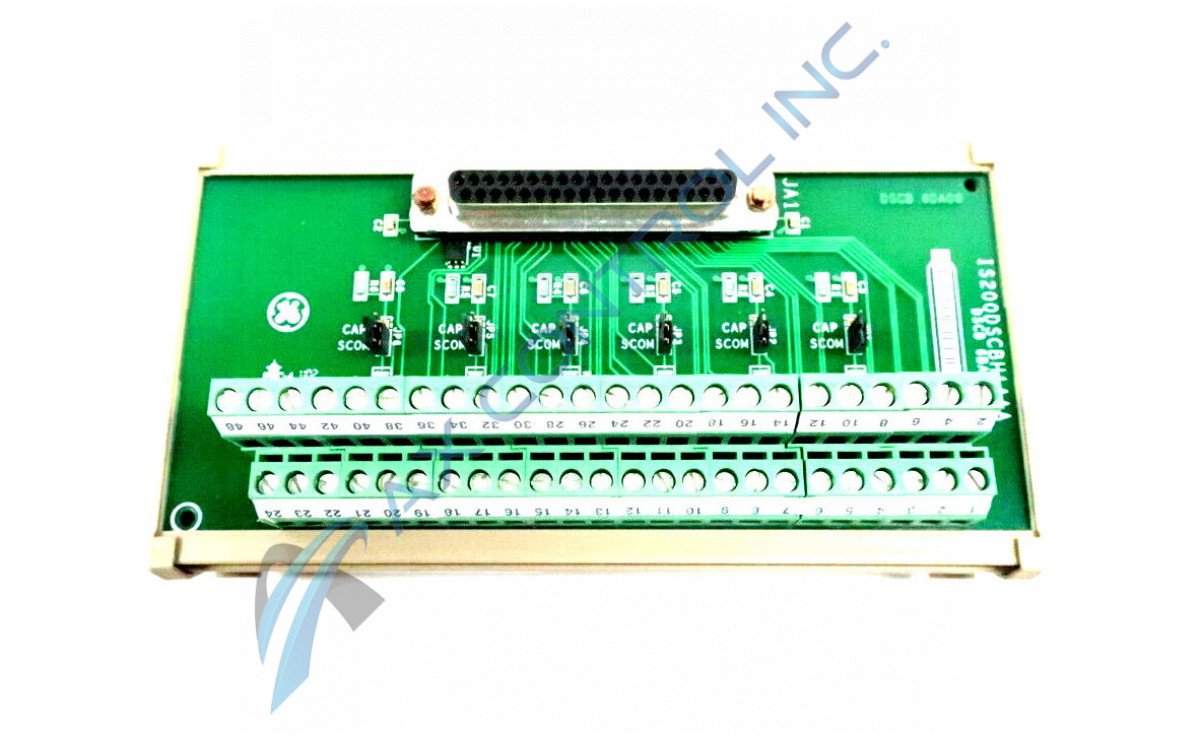

The IS200DSCBH1AAA is a small printed circuit card with several different electronic components. This card has been mounted onto a plastic mount which is grey in color. Several metal jumper pins which are gold in color have been lined up in the center of the IS200DSCBH1AAA. Many of these pins are connected together using a series of six (6) red jumpers which are made of plastic. Using these jumpers to connect pins alters the functions of the circuit board. Six (6) very small connector ports which features female connectors are aligned directly to the right of these jumpers. On the opposing side of the jumpers, there is a line of very small components which are yellow. A long connector port which is black with silver on the sides has been placed on the left edge of the IS200DSCBH1AAA. Around thirty-six (36) female connectors are contained within this connector port. Additional components may be attached to this connector port to expand the functions of the IS200DSCBH1AAA. A pair of large green terminal blocks may be seen on the IS200DSCBH1AAA. Both of the terminal blocks may contain up to twenty-four (24) terminals each. The terminals featured within the terminal block are typically silver and made of metal.
The above-included information on this IS200DSCBH1AAA personalized product page here so far has been chiefly telling of a diligent and service technician-led visual inspection of the IS200DSCBH1AAA printed circuit board product itself, as necessitated by this IS200DSCBH1AAA device's lack of online-available and original instructional manual materials. Given this notable lack, the IS200DSCBH1AAA functional product number alone can additionally be rolled out as a decent-functioning original source of IS200DSCBH1AAA Board hardware component and component specification, as it was specifically designed by the trusted automated industrial manufacturer to display a number of relevant IS200DSCBH1AAA Board hardware traits through a series of consecutive functional naming chunks. For example, the IS200DSCBH1AAA functional product number in this case starts off with an inclusion of the dual-functional IS200 series tag indirectly delegating this IS200DSCBH1AAA PCB's normal Mark VI Series assembly as well as its domestic original GE manufacture location. Some of the other important IS200DSCBH1AAA qualities indicated in this fashion include its:
- DSCB functional product acronym
- Group one Mark VI Series product grouping
- Conformal PCB coating style
- Three-fold significant revision table
