About the IS200EACFG3BAA
The IS200EACFG3BAA was is a printed circuit board or PCB devised and manufactured originally by General Electric. This device was designed as a part of the Speedtronic Mark VI Turbine Control System series by GE. The Mark VI is one of the series that make up the Mark line of gas turbine controls. Mark series control all aspects of the operations of gas turbines including basic functions like startup, shutdown, and cooldown as well as water and fuel injection, and troubleshooting. Mark systems also ensure the safety of turbine equipment and the technicians who operate it. The Mark VI Series that this IS200EACFG3BAA device belongs to is something of a self-explanatory product series based on its full extended series name at least, as it has specific applications in the management and control systems of popular and compatible steam, gas, and even wind turbine automated drive assemblies; a marked improvement upon similar GE Mark product series as it possesses potentially alternative energy-focused applications while earlier product series only had steam and gas possible settings. This IS200EACFG3BAA device is an edited version of its original Mark VI Series product.
Hardware Tips and Specifications

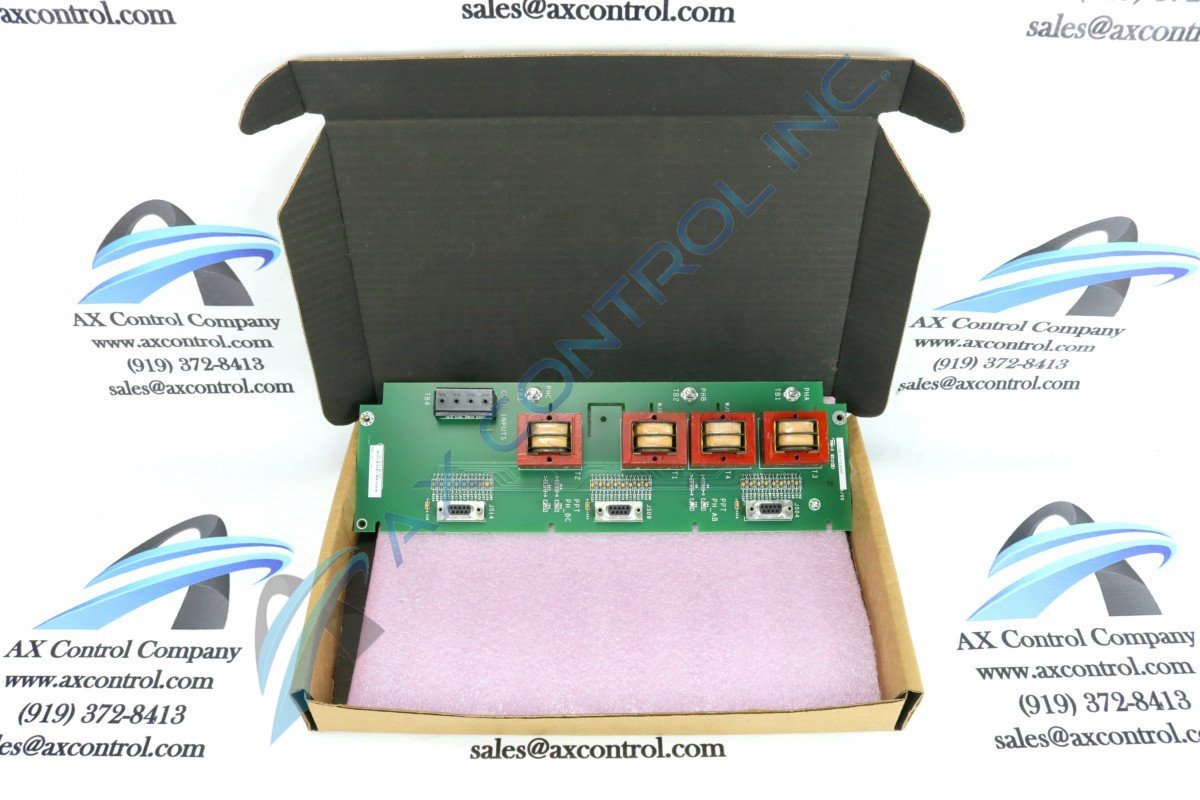

The IS200EACFG3BAA is a small printed circuit board which is generally shaped like a rectangle. A line of components is situated on each vertical half of the IS200EACFG3BAA. On the right half of the IS200EACFG3BAA there is a line of devices called transformers which have square of black and yellow but are mainly red. The transformers have been created in a square shape. The transformers are placed within white square shaped spaces which are marked as T1 through T4. Located near the top of the right half is one (1) all-black capacitor that is large in size. Sitting on the left of the IS200EACFG3BAA, there is a line of three (3) small jack connector ports. The connector ports are black and contain silver metal. Paired together with each of these small connector ports is a white component which is shaped like a small rectangle. In the center of the IS200EACFG3BAA, at least four (4) very small devices known as resistors have been placed in a vertical row. Before making any ultimate purchase decision on this IS200EACFG3BAA product, it is absolutely crucial to realize that its originally-introduced performance specifications and dimensions have almost certainly been altered through its acceptance of a unique series of product revisions including a B-rated primary functional revision, an A-rated secondary functional revision, and finally an A-rated artwork configuration product revision.
Unfortunately, this particular IS200EACFG3BAA Mark VI product offering is actually not surrounded by a grand amount of originally-developed General Electric Mark Series instructional manual materials, which is likely a symptom of this IS200EACFG3BAA device's Mark VI Series' legacy product series attribution. With all this being true, the IS200EACFG3BAA functional product number itself can serve to exist as a decently-strong source of IS200EACFG3BAA Board hardware component and component specification information, as it codes for these details in a set selection of General Electric-formulated functional naming segments. For example, this IS200EACFG3BAA device's functional product number is started off through a dual-functional naming component in the IS200 series tag delegating this IS200EACFG3BAA PCB's normal Mark VI Series assembly as well as the domestic location that it was originally manufactured by GE at. Some of the other relevant hardware details embedded in this IS200EACFG3BAA functional product number's above-mentioned functional naming segments include this EACF-abbreviated device's:
- EACF functional abbreviation
- Normal PCB coating style
- Group three Mark VI Series grouping
- Three-fold revision history
