About the IS200EDCFG1ACB
This IS200EDCFG1ACB printed circuit board product offering from General Electric was originally designed and produced specifically for placement in the Mark VI Turbine Control System Series, The GE Mark product series iteration that was released just after the final issues of Mark V Turbine Control System Series products of virtually the exact same full extended series title. While this may be the case, the Mark VI Turbine Control System Series that this IS200EDCFG1ACB printed circuit board or PCB for short is considered a member of has to represent a massive functional improvement upon the Mark V Series released earlier, as the Mark VI Series adds the alternative energy-based wind turbine possible functional application onto the gas and steam-based settings seen in later GE product series. The Mark VI Turbine Control System Series containing this IS200EDCFG1ACB product is additionally lauded for its status as one of the final-developed Mark product series to exhibit the patented Speedtronic control system technology across a swathe of different product offerings.
Hardware Tips and Specifications

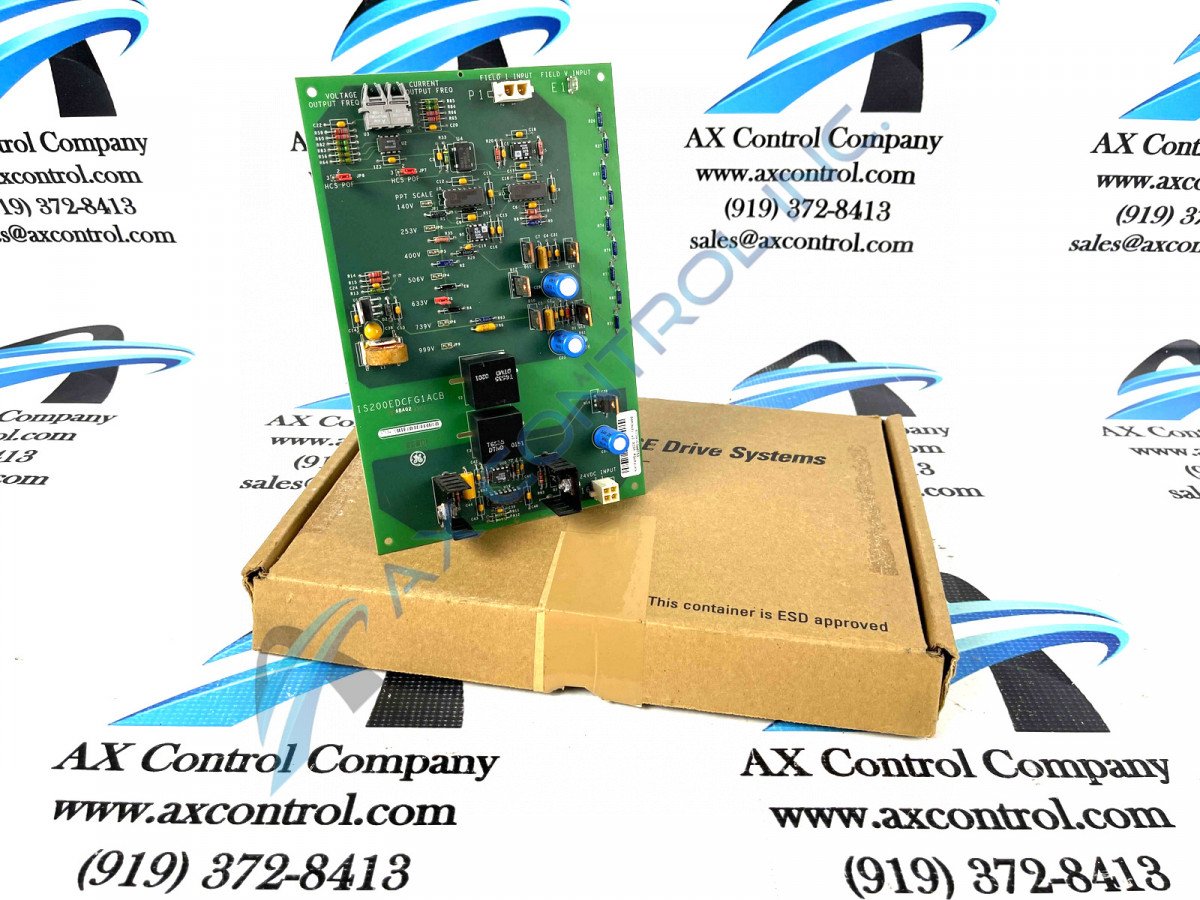

The GE IS200EDCFG1A Exciter DC Feedback Board (EDCF) is a critical component in the EX2100 Excitation Control system, designed to measure field current and field voltage at the SCR bridge. These measurements are crucial in controlling the excitation levels, which directly impact the performance of generators and synchronous machines. The following key features, functionalities, and advantages of the IS200EDCFG1A board, highlight its significance in ensuring the efficient and reliable operation of excitation control systems.
- The EDCF board is engineered to precisely measure both field current and field voltage at the SCR bridge, providing valuable feedback for controlling and regulating excitation levels.
- It seamlessly integrates with the EX2100 Excitation Control system, enabling smooth and efficient communication with other components.
- The board is constructed to withstand challenging environmental conditions and high electrical demands, ensuring reliable operation over extended periods.
The board acts as an interface between the SCR bridge and the EISB (Exciter Interface Signal Board) in the control panel. By establishing a high-speed fiber-optic link between these components, the board ensures voltage isolation and high noise immunity. This fiber-optic link is essential for preventing noise interference and maintaining signal integrity in the excitation control system, ensuring smooth and reliable data transmission. The IS200EDCFG1A board's role in the EX2100 Excitation Control system is paramount. As a feedback board, it provides real-time measurements of field current and voltage, enabling precise control and regulation of excitation levels to maintain generator stability, even under varying load conditions. The excitation control system, in turn, ensures optimal generator performance and stability during various operational conditions, leading to increased energy efficiency and reduced losses. Moreover, the high-speed fiber-optic link employed by the board enhances system reliability and safety. The voltage isolation prevents potential ground loops and ensures the safety of personnel and equipment, especially in high-voltage environments.
