About the IS200EGPAG1ABD
The IS200EGPAG1ABD is a Mark VI Speedtronic board component from General Electric. The Mark VI is used for the management of industrial steam and gas turbines. This system is designed with the capability of setup in either Simplex or TMR (triple modular redundant) form in order to meet the needs of the turbine. The Mark VI Turbine Control System Series that this IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board belongs to, as it is known in full title, exists with a specific set of GE-specified possible functional applications in the management and control systems of General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This must be detailed as quite the significant functionality-minded upgrade from the previously-considered industry-standard Mark V Turbine Control System Series of more or less the same full extended series title, as the Mark V Series' established rudimentary gas and steam-based application range was expanded to include the Mark VI Series' coming alternative energy-based wind turbine possible functional application. This IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board device is a thrice-revised PCB.
Hardware Tips and Specifications

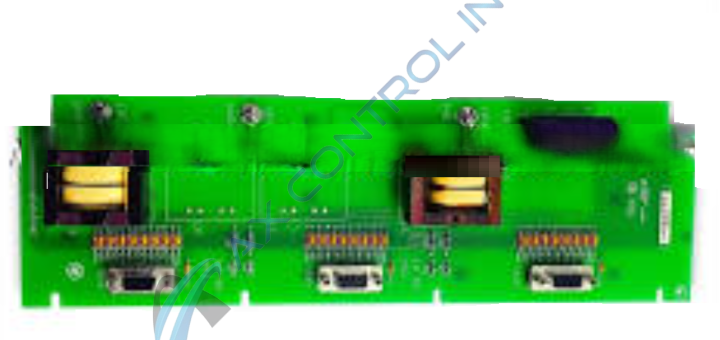

The board is typically used in EX2100 excitation systems. The IS200EGPAG1ABD functions as an Exciter Gate Pulse Amplifier circuit board. It is used to interface with controls to the system’s power bridge. The IS200EGPAG1ABD also can control the gate firing of SCRs on the bridge (up to six SCRs.) The IS200EGPAG1ABD has a line of LED indicators along its front edge. These LEDs are used for the indication of various things, including cooling fan rotation, alarm and fault condition, bridge currents and temperature, and output firing. Other board components include 5 jumper switches, 8 transformers, 13 high-voltage electrolytic capacitors, a coil inductor, and a number of integrated circuits, capacitors, and resistors. The board also has 13 plugs on its surface including 7 two-position plugs, 3 four-position plugs, a twelve-position plug, and a six-position plug. More information about the proper handling, installation, or maintenance of the IS200EGPAG1ABD may be found through documentation originally provided by General Electric. This includes user guides and manuals. If your copies of these publications are no longer available we may be able to provide replacements with your order.
AX Control ships products every day, Monday through Friday. Most in-stock products will ship the same day you place your order. If you are local to our North Carolina facility, call ahead and we can have your order ready for local pick-up. We are also happy to work with your courier. This IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board printed circuit board product offering is actually not the originally-developed device of its specific GE Mark Series functional role, as that would be the IS200EGPAG1 parent Exciter Gate Pulse Amplifier Board product notably not taking advantage of this IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board device's three-fold significant revision table. This IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board product's revision history was revealed upon a diligent analysis of the IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board functional product number itself, which was created to assert a number of pertinent IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board hardware details through its series of consecutive functional naming elements. For example, the IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board product number begins with an inclusion of the dual-functioning IS200 series tag indirectly delegating this IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board products' normal Mark VI Series assembly as well as its domestic original manufacture location. Some of the other important IS200EGPAG1ABD Exciter Gate Pulse Amplifier Board information revealed through this medium includes its normal Mark VI Series assembly version, its group one Mark VI Series product grouping, and its full three-fold product revision table.
