About the IS200EMIOH1ACA
The IS200EMIOH1ACA is a board component made by General Electric as part of its Speedtronic MKVI system. The Mark VI is designed with a Control Module for monitoring and control processes. The system has a Windows-based HMI (human-machine interface) that allows operators to access data from one point. This HMI is a non-essential component that can be reinitialized or replaced with zero impact on the actual control of the system. This IS200EMIOH1ACA Printed Circuit Board device's greater Mark VI Turbine Control System Series, as is inlcuded here with its full extended product series titile, has to be deemed as quite the significant functional upgrade upon the previous industry-standard Mark V Turbine Control System Series of just about the same full extended series title, as the Mark VI Series added the alternative energy-based wind turbine possible functional application onto the more simple steam and gas-based turbine applications introduced with the previously-mentioned Mark V.
Hardware Tips and Specifications

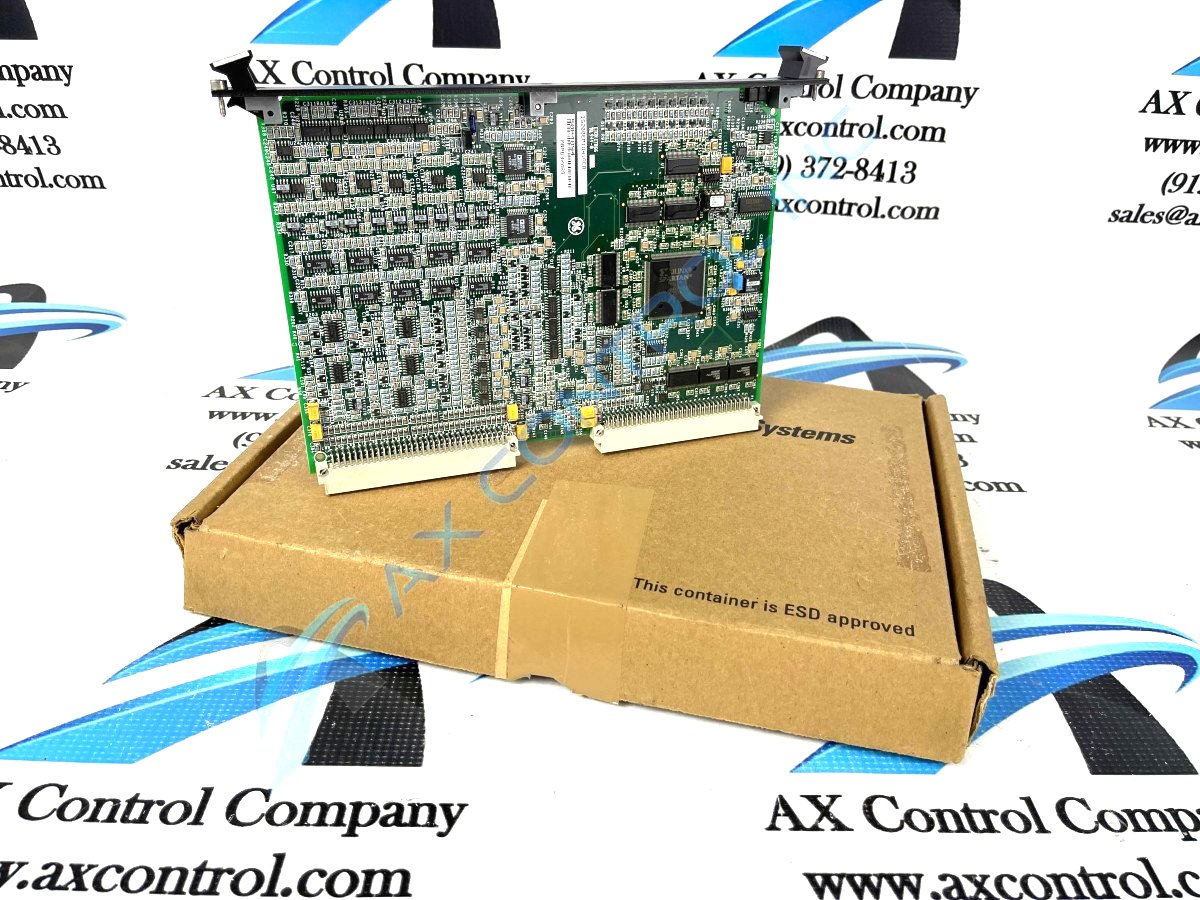

The IS200EMIOH1ACA is a double-height single-slot VME style board. It manages the input and output signals from several other boards, including the EXTB, EACF, ECTB, and EPCT boards. These signals include PT and CT signals or Poterntial Current and C Cureent signals, output relay drivers, contact inputs, and pilot trip relay drivers. The IS200EMIOH1ACA has two LED indicators mounted into the front faceplate mounted to the front of the circuit board. The LEDs are used as Power and Status indicators. The faceplate has clips to keep the board secure within the rack once it is installed, and is marked with the board id number and the manufacturer’s logo. One the back edge of the IS200EMIOH1ACA, there are two backplane connectors. These are labeled P1 and P2. The surface of the board is heavily populated with over 400 resistors, 400 capacitors, and many diodes, along with close to 80 integrated circuits. Circuits on the board include FPGAs (field-programmable gate arrays.) There are also transistors and test points on the board. The board is marked with several codes and with reference designators to allow for easy identification of components.
This IS200EMIOH1ACA Printed Circuit Board device's above-mentioned collection of diodes, resistors, capacitors, and integrated circuits should all have been included in this IS200EMIOH1ACA Printed Circuit Board product's normal Mark VI Series assembly version as part of a broader voltage regulation strategy that has been standardized to the rest of this IS200EMIOH1ACA Printed Circuit Board product's greater Mark VI Turbine Control System Series. This IS200EMIOH1ACA Printed Circuit Board device's Mark VI Series, as it is known for short, is not surrounded by very many originally-printed pieces of instructional documentation on the internet, as the Mark VI Series is one of the final-developed GE Mark Series iterations to incorporate the patented Speedtronic control system technology into a number of relevant product options. Given the lack of Mark VI Series materials online, this IS200EMIOH1ACA Printed Circuit Board product's IS200EMIOH1ACA Printed Circuit Board functional product number can be treated as a decent research option for hardware details, as it actually codes for a number of significant IS200EMIOH1ACA Printed Circuit Board hardware qualities through its series of consecutive functional naming elements. For example, this IS200EMIOH1ACA Printed Circuit Board product number in specific begins with an iteration of the dual-functional IS200 series tag delegating this EMIO PCB's normal Mark VI Series assembly and its domestic original manufacture location. Some of the other relevant IS200EMIOH1ACA Printed Circuit Board qualities indicated this way include its:
- EMIO functional product acronym
- Group 1 Mark VI Series grouping
- Conformal PCB coating style
- Three-fold revision history
