This EX2100 series model of General Electric Circuit board is an EXTB board with three contact inputs, complete "A" revision versions, M1 and M2 power supplies, normal coating, and a close Relay 41 used for redundant control.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200EXTBG1AAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EXTBG1AAA
  • SKU: IS200EXTBG1AAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200EXTBG1AAA Technical Specifications

Instruction Manual GEH-6632
Manufacturer GE Industrial Systems
Part Number IS200EXTBG1AAA

Product Description

The IS200EXTBG1AAA board has been manufactured by trusted industrial supplier General Electric as part of its EX2100 Excitation Control series. General Electric has been a supplier of industrial automated drive parts for decades, and this series only allegorizes their industry success. So far-reaching is the competency of GE printed circuit boards such as the IS200EXTBG1AA , that many models have come have been called by a shortened acronym of their full product name, usually indexed by a four-digit moniker describing the part's functionality. This part goes by the function acronym EXTB, short for extension board.

Hardware Tips and Specifications

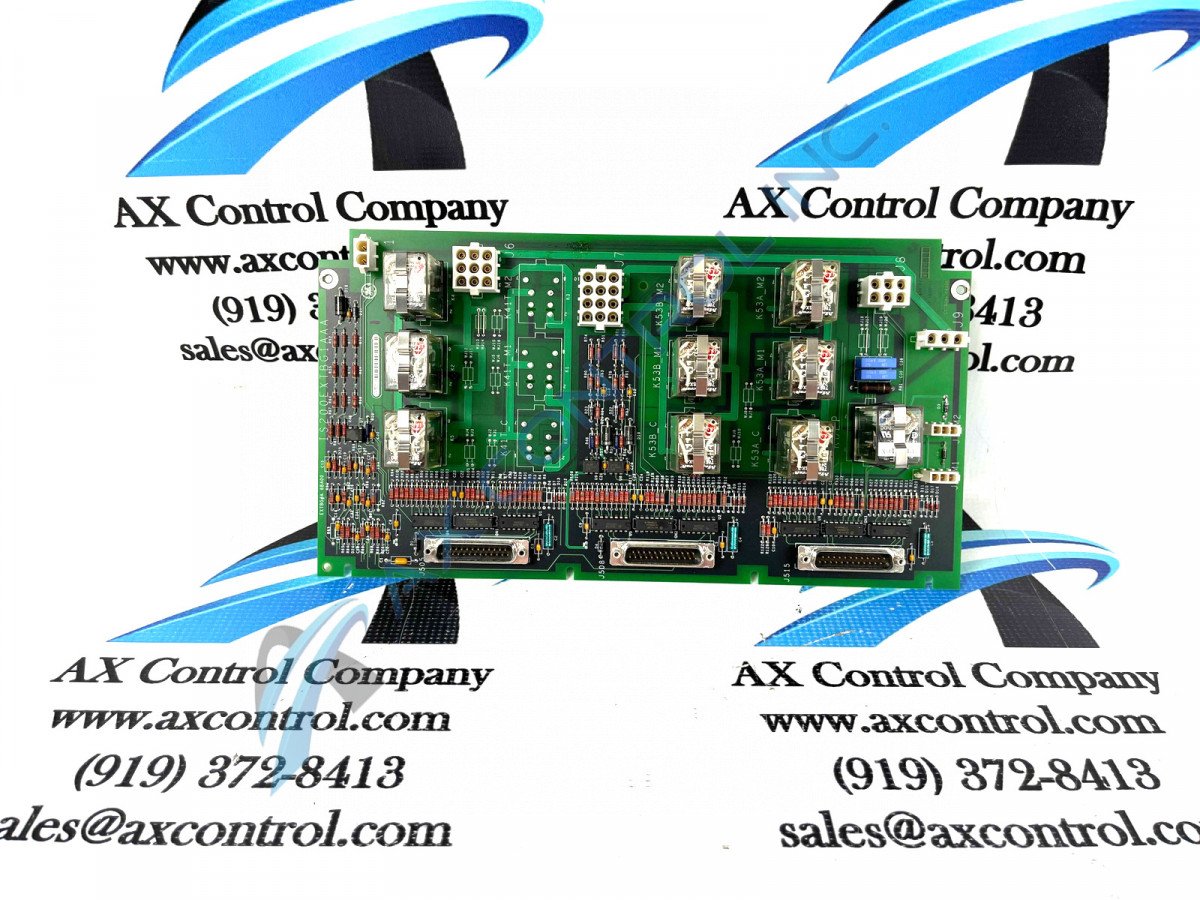

This IS200EXTBG1AAA board is unique in a number of specifications pertinent to circuit board function and compatibility. Generally, this extension board is supportive of various contact outputs, signal conditioning circuits, and cable mounting through use of the EXTB board's backplane. This model is equippable with thirteen relays in total, although for best functionality, this version comes standard with nine of those relays, missing relays at positions K1, K3, and K6. The type of relay compatible with the IS200EXTBG1AAA board can be defined as the Magnecraft 78ERNCSX-3 relay; which comes with a contact amperage rating of 120/240 VDC. For such a high-voltage model of printed circuit board, it should come as no real surprise to the board installer that this particular model is loaded with voltage current-controlling resistors. The IS200EXTBG1AAA model has over 130 resistors in total, making for a supremely surge-protected purchase option. Three obvious female ports are present on the baseplate of this extension board, labeled J505, J508, and J515 in order down the left-hand side of the PCB. While the IS200EXTBG1AAA has a supremely high number of resistors, it remains true that this GE product makes room too for a number of capacitors, around thirty in total, for energy storage and current monitoring options. A final mentionable component element is the various jumpers available on the base plate of this PCB. Labeled J1 through J12M2, these jumpers act ass optional closing points for the board's electrical circuit.

Before making a purchase off this EXTB printed circuit board, it is important to consider the full dimensions of the PCB. This is extremely relevant to the IS200EXTBG1AAA model, as it is a generally large model of printed circuit board. This particular extension board measures around eight inches wide by fourteen inches lengthwise, and is considered a relatively thick model of printed circuit board as a function of its ten jutting Magnecraft relays. The presence of these relays increases the overall thickness of the printed circuit board from around one inch in thickness to about three inches. This model features functional revision ratings of A, with a congruent artwork revision rated at A as well.

More information about the IS200EXTGB1AAA board is available online here with General Electric's manual GEH-6632; created for the greater EX2100 Excitation Control Series.

Reviews For IS200EXTBG1AAA

Internal Review
(5.0)

A powerhouse of a component board option, once again from General Electrics' Mark VI Speedtronic series of drive component parts; the IS200EXTBG1AAA PCB is known for its unique set of revision versions, as it features Functional Revision 1, Functional Revision 2, and Artwork Revision versions all rated as "A." Beyond the customized version inhrent with the purchase of this board, this PCB is known for its solid voltage protection and voltage storage specifications; the EXTB has over 130 total resistors fused to the board's base plate. - AX Control Lead Technician
