About the IS200FOSAG1AAA

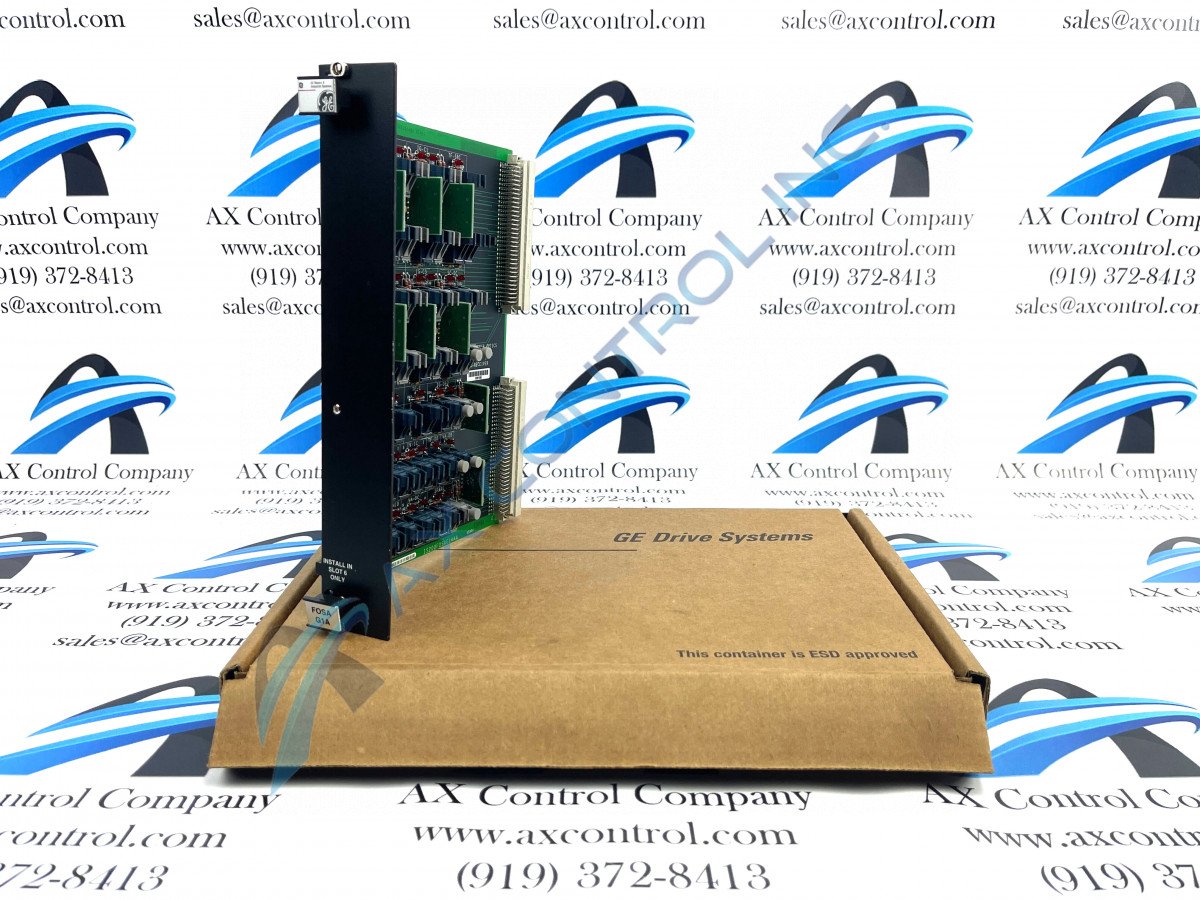

The IS200F0SAG1AAA is a board component (PCB) manufactured and created by GE. The IS200F0SAG1AAA installs within the GE MKVI Speedtronic turbine control system from General Electric. The Mark VI is designed to protect, control, and monitor turbines in mechanical and generator applications of gas and steam industrial turbine systems. The MKVI can be used for turbine systems of various sizes depending on how it is set up; it has the flexibility of design to offer Simplex or TMR (triple modular redundant) control. The Mark VI Series that this IS200FOSAG1AAA PCB can be considered a component member of has to be treated as a massive functional improvement upon the previous industry-standard Mark V Turbine Control System Series of essentially the same full extended product series title. as the Mark V Series' existing gas and steam-based functional product applications tacked on the alternative energy-minded wind turbine possible environment with the rollout of the Mark VI Series here.
Hardware Tips and Specifications
The IS200F0SAG1AAA is a Bridge Interface Board. This board is often used within Innovation Series AC Drives with low voltage. The IS200F0SAG1AAA is typically connected to an IS200CABP (CABP) Control Assembly Backplane. This is a wiring board that provides interconnections for wiring boards interfaced with external signals. The IS200F0SAG1AAA is installed in slot five and connected to the CABP’s J16 and J21 plugs via its P1 and P2 connectors. There are a few faults that may be tripped by the IS200F0SAG1AAA board. This includes the IGDM DB1 card fit trip fault. This fault may also be tripped by the CPFP or DSAT boards. For additional information about the IS200F0SAG1AAA, refer to datasheets, manuals, or user guides from General Electric. This includes GEK-105490 18-pulse Non-regenerative Drive User’s Manual from GE, which includes some ancillary information about the IS200F0SAG1AAA. AX Control ships products from our North Carolina facility every day. If we receive your order before 3 pm, we can typically get any in-stock product on its way to you that same day. Please let us know if you have special needs or instructions for your shipment.
While this IS200FOSAG1AAA product is definable as a Mark VI Turbine Control System Series Bridge Interface Board, it is unknown where this official product description was originally derived from, given the fact that this IS200FOSAG1AAA PCB in specific is not surrounded online by very many originally-produced instructional manual materials. With this being the case, alternative research avenues for IS200FOSAG1AAA Board hardware information can be exploited. One such avenue is the IS200FOSAG1AAA functional product number itself, which was actually specially designed by GE to display a number of relevant IS200FOSAG1AAA Board qualities through a series of consecutive functional naming chunks. For instance, the IS200FOSAG1AAA product number in this case begins through an inclusion of the dual-functional IS200 series tag dictating this IS200FOSAG1AAA device's normal Mark VI Series assembly version on top of its domestic original manufacture location. Some of the other relevant IS200FOSAG1AAA Board information disclosed through this popular medium include its:
- FOSA functional product acronym
- Group one Mark VI Series product grouping
- Normal PCB coating style
- Three-fold revision total
