About the IS200GFOIH1BBA
The IS200GFOIH1BBA is a board component manufactured by GE for the Mark VI system. As one of the last of the ‘Speedtronic’ systems, the Mark VI benefited from over three decades of development and research of creating control systems for heavy duty gas and steam turbines. The Mark VI is built around a Central Control Module with individual PCBs that each have high/low hardware limit checking as well as software limit checking. The system uses Ethernet communications for most internal and external needs. The Mark VI Turbine Control System Series actually exists as quite the significant functionality-minded upgrade upon the existing Mark V Turbine Control System Series of a similar full extended GE product series title, as the Mark VI Series added the alternative energy-focused wind turbine functional application to the gas and steam-based environments already established with the previous Mark V. This IS200GFOIH1BBA Auxiliary Board product's Mark VI Series is additionally seen as relevant in broader promotional markets given its quality as one of the last-developed GE Mark Series to incorporate the esteemed Speedtronic control system technology into many an offering.
Hardware Tips and Specifications

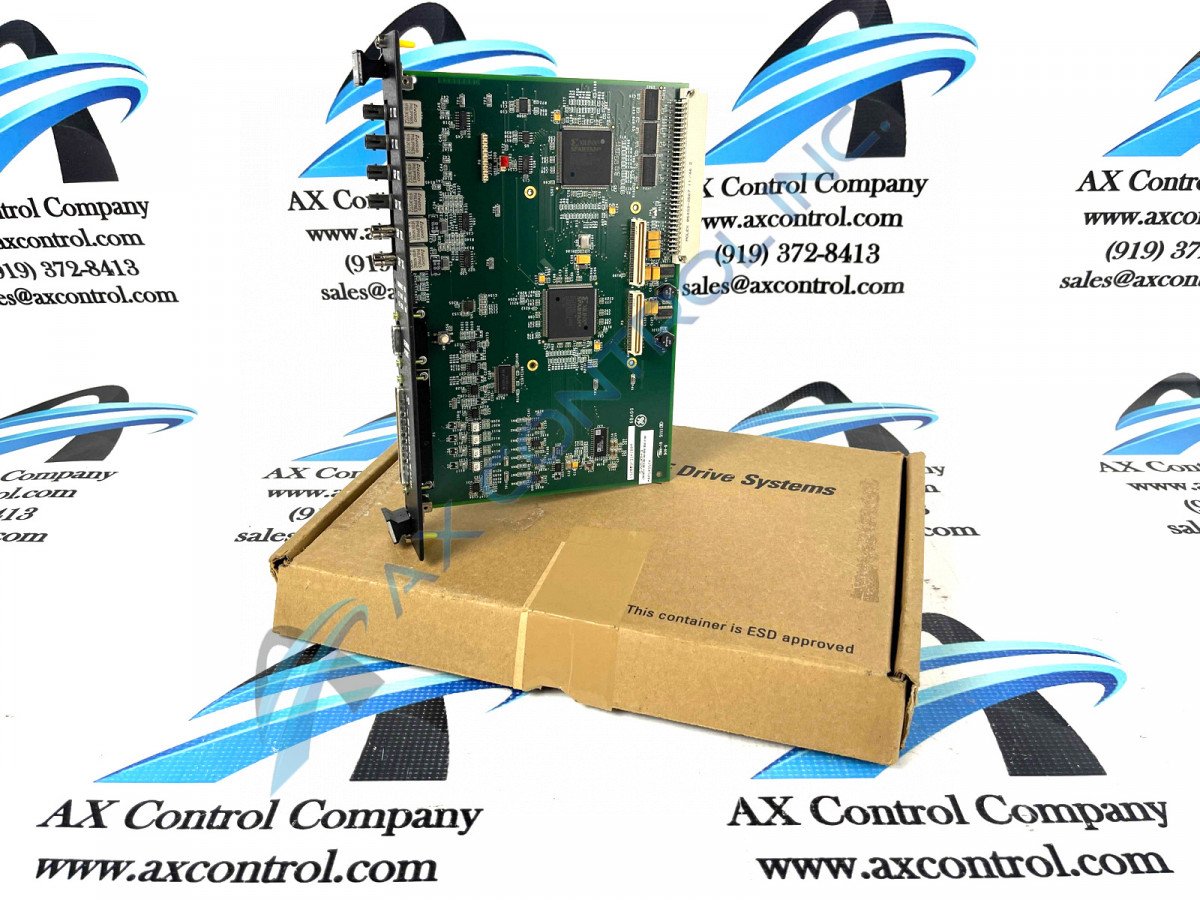

The IS200GFOIH1BBA is a component dense board that can accept an optional daughterboard. This auxiliary board mounts to the main board via four screw mounts threaded through standoffs, and when installed, adds additional connectors, capacitors, integrated circuits, resistors, transistors, and test points. The IS200GFOIH1BBA has a single backplane connector located in the upper left quadrant of the board. It has a connector to accept the previously mentioned auxiliary board, plus a vertical pin connector (P6.) The board is populated by ten TP test points, four transistors, and eight resistor network arrays. Other components include capacitors, diodes, and resistors. The board has multiple integrated circuits, including a FPGA (field programmable gate array.) This chip from Xilinx Spartan offers 32K of RAM. The board has a single switch component, located toward the center line of the front edge.
The IS200GFOIH1BBA is marked with codes like 94V-0 and 6BA00. Components are marked with reference designators for identification. More information about the board, its components, board function, installation procedures, and handling instructions may be found through manufacturer publications like manuals and user guides. Any of the above-stored information concerning the IS200GFOIH1BBA Auxiliary Board printed circuit board product specifically on this IS200GFOIH1BBA Auxiliary Board personalized product page here has so far been reminiscent of a diligent visual inspection of the IS200GFOIH1BBA Auxiliary Board itself, as necessitated by its low general amount of originally-pertinent General Electric instructional manual materials. With this being the case, the IS200GFOIH1BBA Auxiliary Board's IS200GFOIH1BBA functional product number itself can actually come in to question as a decent functional source of IS200GFOIH1BBA Auxiliary Board hardware component and component specification information, as it codes for varying relevant IS200GFOIH1BBA Auxiliary Board details through a set of consecutive functional naming elements. For example, in this instance, the IS200GFOIH1BBA product number begins with an iteration of the dual-functional IS200 series tag delegating this IS200GFOIH1BBA Auxiliary Board PCB's normal Mark VI Series assembly as well as its domestic original GE manufacture location. Some of the other relevant IS200GFOIH1BBA Auxiliary Board details revealed in this manner include its:
- GFOI functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series grouping
- Three-fold revision history
