IS200HFPAG2A

About the IS200HFPAG2A

The IS200HFPAG2A is a PCB component designed to be a part of the Mark VI series.  The Mark VI is one of the last gas and steam turbine control systems released by General Electric in their long-running Speedtronic line.  GE spent over three decades researching and developing the best operating systems and control processes for this line. The Mark VI is built around a central Control Module that acts as the heart for most control, protection, and monitoring functions in the Mark VI.  Some applications require backup protection. This can be done in Simplex or triple redundant form, depending on the needs of the system. The MKVI is the third Speedtronic system to be built with integrated triple redundancy protections.

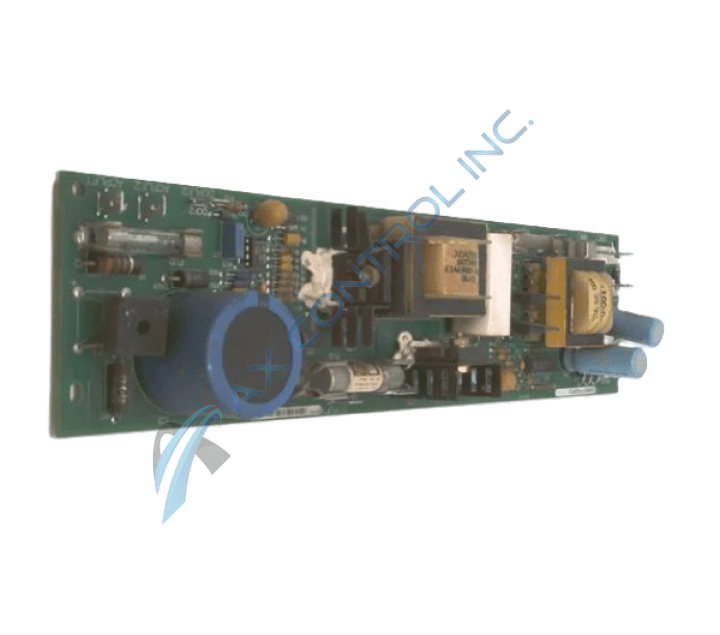

The IS200HFPAG2A is a long, narrow board that functions as an AC/Fan Power Supply board in High-frequency applications.  The board receives ac or dc input which is then converted into needed outputs. In the case of the IS200HFPAG2A, it converts inputs into square wave outputs.   The total output loading of the IS200HFPAG2A should not exceed 90 VA. Inputs enter the board via four stab-on connectors. They exit the board via eight plug connectors.   Two LEDs provide voltage output status. The board is built with four fuses to protect the board circuitry.

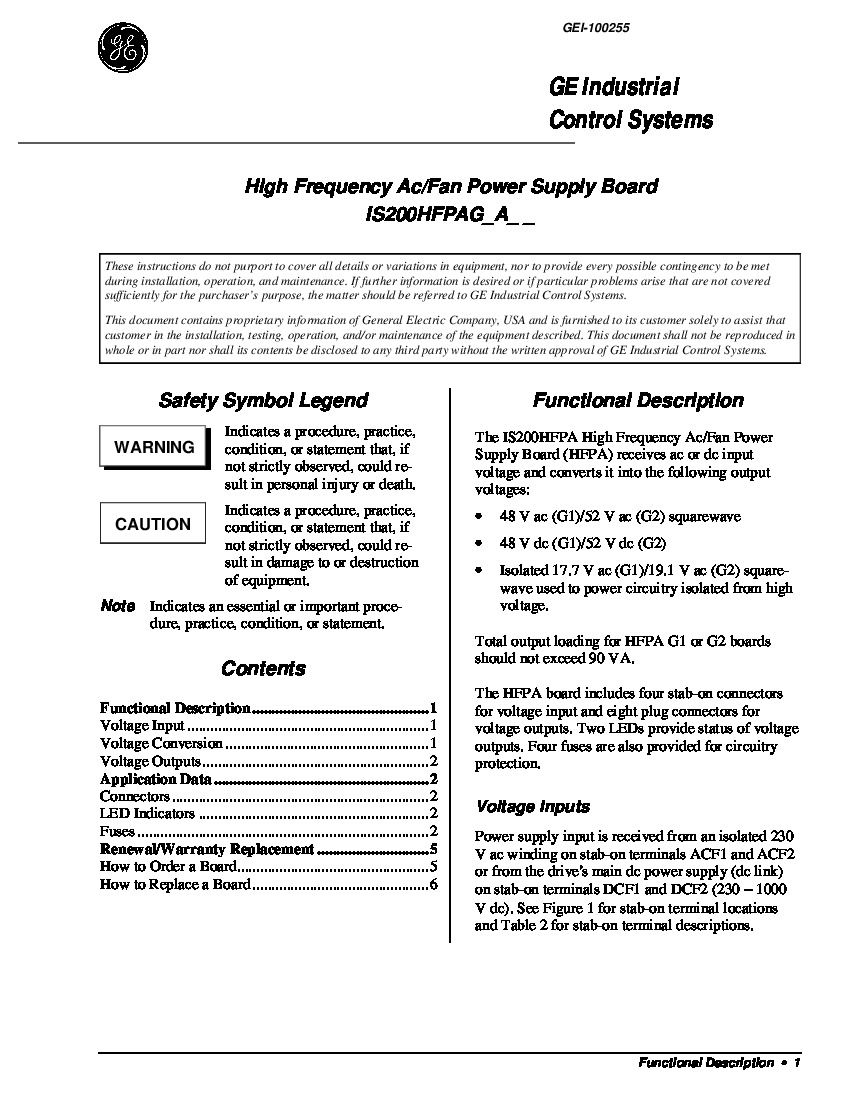

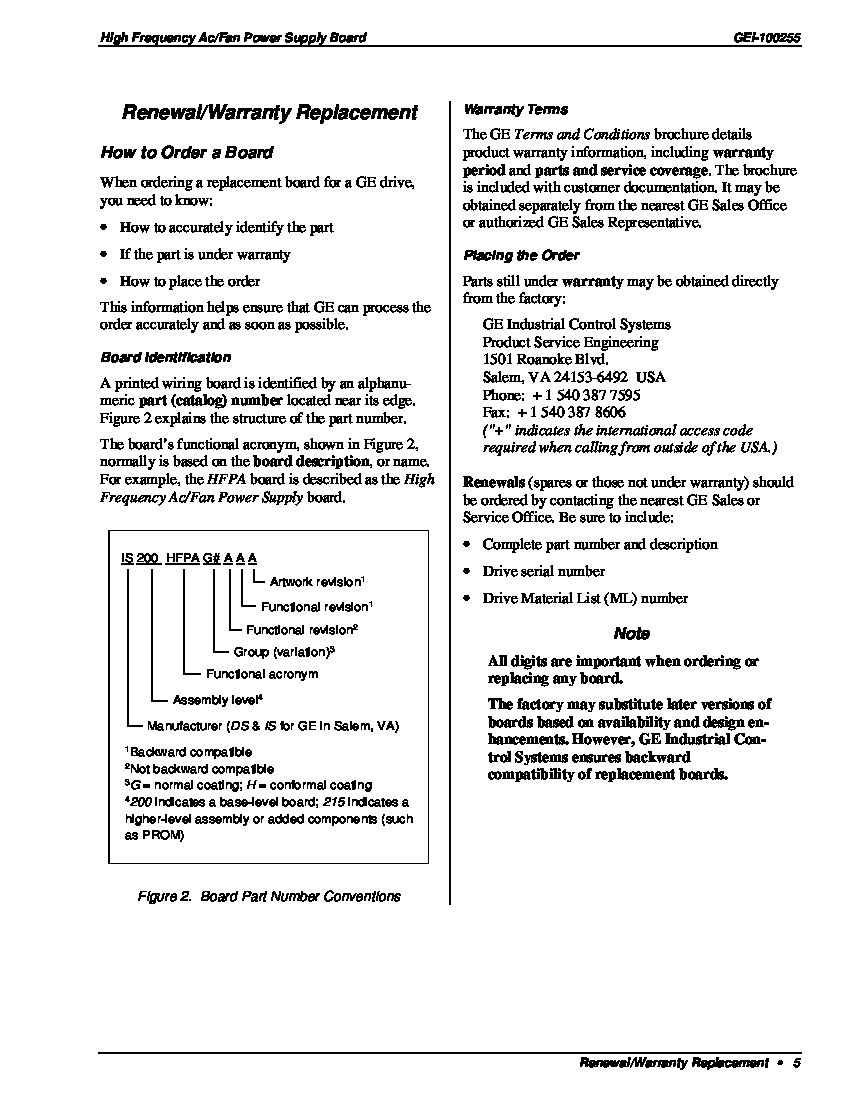

The IS200HFPAG2A has no configurable hardware.  Other components include transistors, heat sinks, two transformers, resistors, and capacitors, including high-voltage capacitors.   More information about IS200HFPAG2A and its components is located in GE publication GEI-100255.
