IS200HFPAG2ACB

About the IS200HFPAG2ACB

Greater Product Series Information

The IS200HFPAG2ACB is a High-Frequency AC Fan Power supply board designed for use in Mark VI Speedtronic systems from General Electric. These systems were typically used for the control of industrial gas and steam turbine systems and offered triple-redundant control options. This IS200HFPAG2ACB High-Frequency AC Fan Power Supply Board device's greater Mark VI Series has to be treated as a significant upgrade over even the Mark V Turbine Control System Series of just about the same full extended series title, as the Mark VI Series was developed to add the more alternative energy-friendly wind turbine functional product application.

Hardware Tips and Specifications

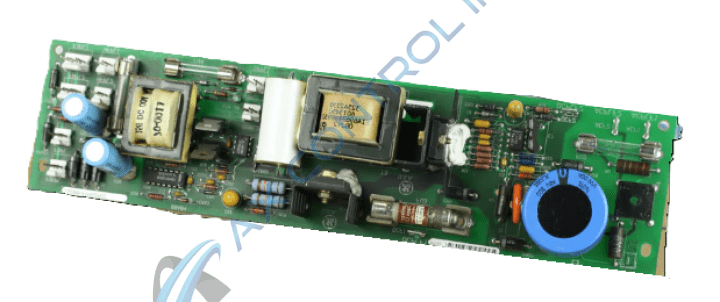

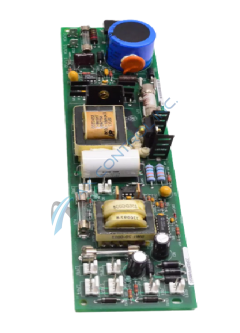

THe IS200HFPAG2ACB is designed to receive either ac or dc input voltage and to then convert that voltage to output voltages of 52 VAC squarewave, 52 VDC, and 19.1 VAC squarewave for power circuitry that is isolated from high voltages. The IS200HFPAG2ACB  is built with:

• four stab-on connectors
• eight plug connectors (vertical pin) for voltage output
• two LED indicators on the board
  • used to provide the status of voltage outputs
• four fuses on its surface
  • to protect circuits from overvoltage
• a self-oscillating power inverter
  •  to convert input power to the proper outputs
• two heat sinks
  • to provide cooling to the board’s components
• factory-drilled holes at each corner

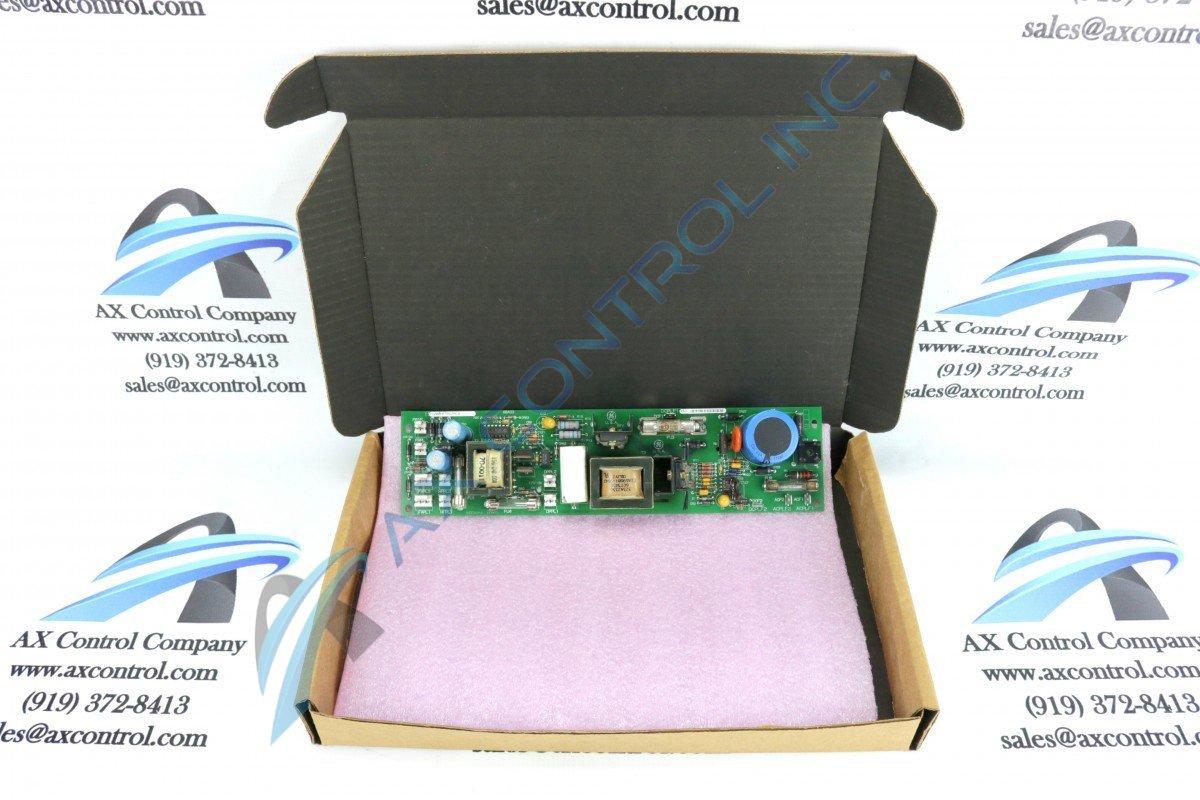

This is a long and narrow component weighing approximately 1.00 pounds before the addition of any packing material. Please review installation and handling guidelines as they are writing in General Electric manuals and user guides. These documents include important safety information that should be reviewed before you unbox your part to protect the longevity of your equipment and the safety of your workers.
