IS200ICBDH1ABA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (14)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (14)
  • Click a star to rate this product
This IS200ICBDH1ABA Control Card was manufactured for General Electric's Mark VI Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200ICBDH1ABA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200ICBDH1ABA
  • SKU: IS200ICBDH1ABAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200ICBDH1ABA Technical Specifications

Manufacturer General Electric
Series Mark VI Speedtronic
Product Type IS200ICBDH1ABA Control Card
Functional Abbreviation ICBD
Revision Total 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly

Frequently Asked Questions about IS200ICBDH1ABA

What does this IS200ICBDH1ABA product's conformal PCB coating exist as?

This IS200ICBDH1ABA PCB's conformal coating is a thin layer of chemically-applied PCB protection made available to this IS200ICBDH1ABA PCB's entire base circuit board.

What is the function of this IS200ICBDH1ABA product's ICBD functional abbreviation?

This IS200ICBDH1ABA product's ICBD functional acronym was created to exist as a convenient functional shorthand alternative to the lengthy IS200ICBDH1ABA product number itself.

About the IS200ICBDH1ABA

The IS200ICBDH1ABA is a PCB component created as part of the Mark VI system. The Mark VI is one of General Electric’s Speedtronic systems that has been used for the management of steam/gas turbine systems since the 1960s. The Mark VI has over three decades of research and development behind it and includes features like Ethernet capabilities and an operator interface (HMI) that uses a PC running on a Windows platform. This interface allows for the end user to access most system data from one location. However, turbine control and protection remain within the Control Module, which allows the interface to be upgraded or replaced without effect to the running system. This IS200ICBDH1ABA PCB is edited from its original Mark VI Series functional product through two functional product revisions and a sole artwork configuration revision.

Hardware Tips and Specifications

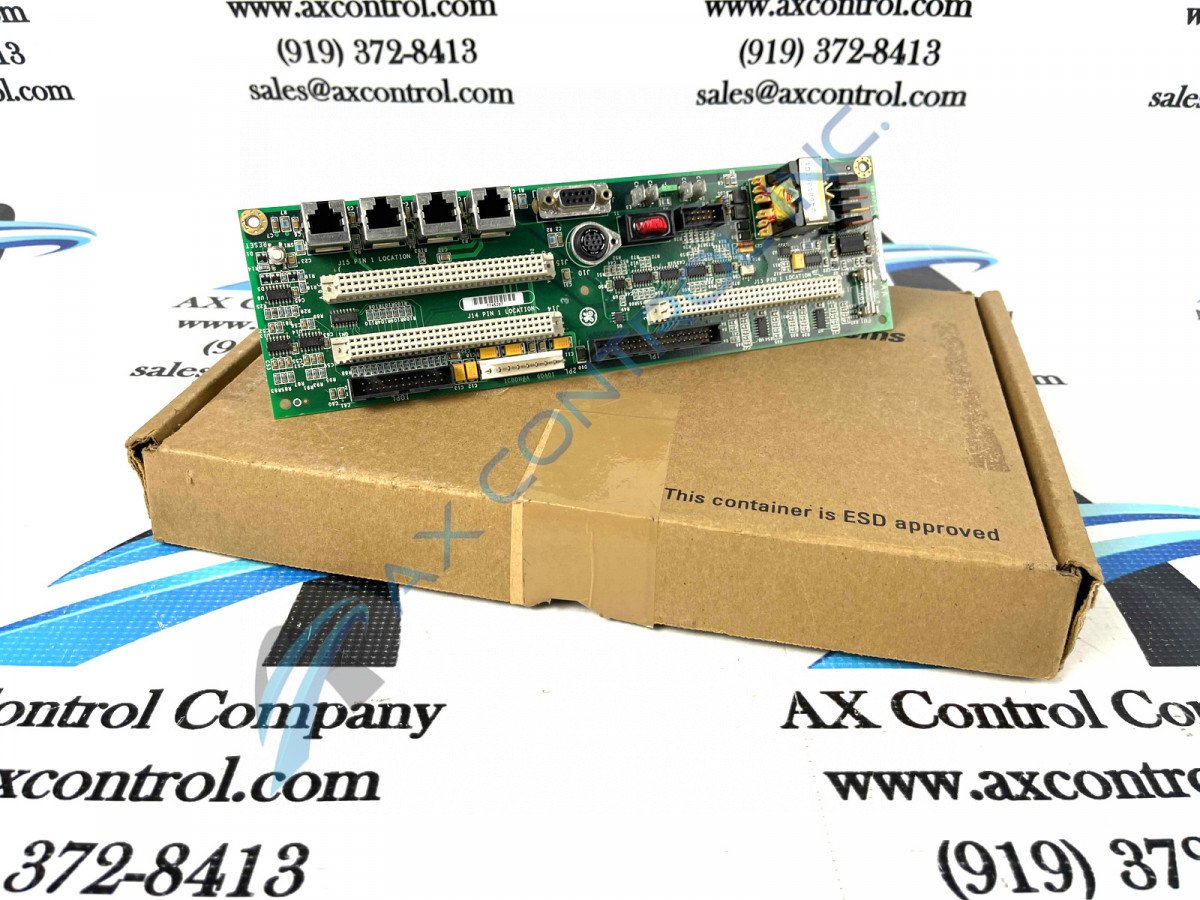

The IS200ICBDH1ABA is a narrow, long card without a front faceplate. This card is built with multiple inputs/outputs, including four jack connectors lined up along one long board edge. These connectors are labeled J11A, J11B, J12A, and J12B. The board has two female connectors (J9/J10.) One (J9) is a 9-pin D-sub connector, while the other (J10) is an 8-pin mini-DIN connector. The IS200ICBDH1ABA also has three female backplane connectors with the “Pin 1” location noted on each. The board is built with four stab-on connectors and with four vertical male pin connectors. The IS200ICBDH1ABA is built with four transistors, three transformers, a fuse, over a dozen integrated circuits.  It has a single “reset” switch located in one corner. Two conduction sensors are located in corners. The other two corners are factory-drilled. Our team will be happy to work up a quote for shipping charges to your location upon request.  Our in-stock products usually ship the same day of order placement.

The above-included information detailing this IS200ICBDH1ABA printed circuit board product offering on its personalized product page here is almost entirely reminiscent of a diligent visual inspection of the IS200ICBDH1ABA printed circuit board device itself, as inspired by a near-complete lack of pertinent Mark VI Turbine Control System Series originally-printed instructional manual materials available online. With this lack existing for the foreseeable future, in this instance the IS200ICBDH1ABA functional product number itself needs to be introduced as a supplemental source of IS200ICBDH1ABA device hardware component and component specification information, as it codes for specific IS200ICBDH1ABA device details through a standard consecutive series of functional naming elements. For starters, this IS200ICBDH1ABA functional product number here begins with a typical instance of the initial dual-functional IS200 series tag, that serves to highlight both this IS200ICBDH1ABA device's normal Mark VI Series assembly as well as its domestic original GE manufacture location. Some of the other important IS200ICBDH1ABA device information established through this medium include its ICBD functional product acronym, its conformal style of protective PCB coating, its group one Mark VI Turbine Control System Series product grouping, and finally its unique three-fold extended revision history. To be specific, this IS200ICBDH1ABA product is edited from it base performance specifications and dimensions through an A-rated functional revision, a B-rated secondary functional revision, and an A-rated artwork configuration revision.
