About the IS200IGPAG2AED
The IS200IGPAG2AED is a component for the Mark VI system. The Mark VI is a Speedtronic system for gas/steam turbine management. Speedtronic systems from GE have been used for turbine management for decades, starting with the Mark I in the 1960s and continuing through to the release of the Mark VI and Mark VIe in the late 1990s/early 2000s. The Mark VI includes advances like a PC-based HMI (human machine interface) that gives users access to data from the central Control Module in one location. The HMI uses proprietary software designed for turbine management, like CIMPLICITY graphics and the GE Control Systems Toolbox. This IS200IGPAG2AED printed circuit board product offering's greater Mark VI Turbine Control System Series has to be treated as quite the significant functional upgrade upon the previous industry standard of basically the same name in the Mark V Turbine Control System Series, as the Mark VI Series tacked the alternative energy-guided wind turbine application onto the established gas and steam-based functions.
Hardware Tips and Specifications

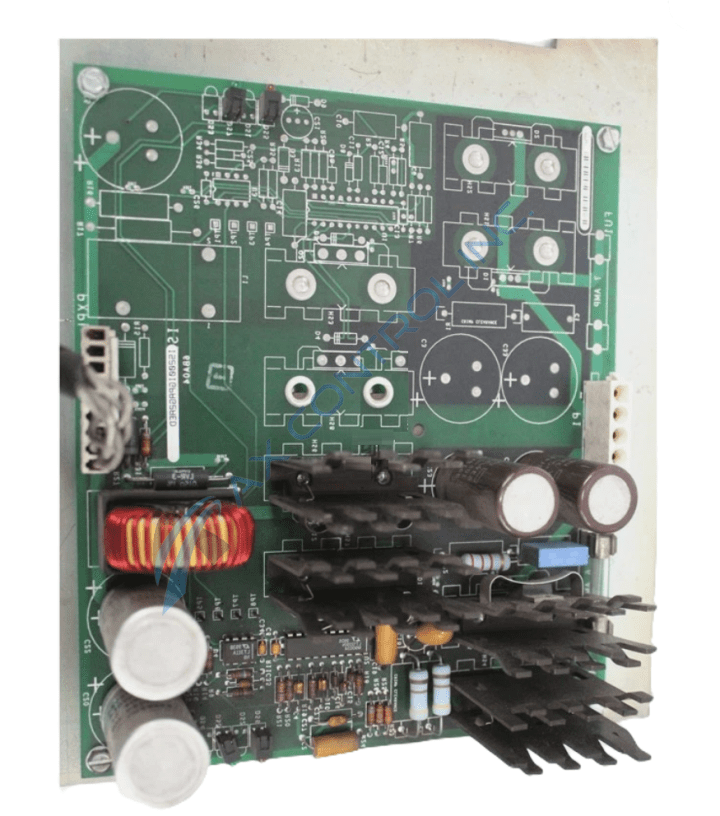

The IS200IGPAG2AED has two distinct sides of the board. One side is full of components while the other is nearly empty. The nearly empty side of the board has markings drawn on the board surface where components might be placed, but the components are not on the board. The few components that are located on this side include a 9-pin vertical male header connector, several terminal connectors drilled through the surface of the board, and two LED indicators placed side-by-side on the board edge. These LEDs are mirrored on the other side of the board by two other LEDs. Each pair of LEDs includes one green and one amber LED. The ‘full’ side of the IS200IGPAG2AED includes an inductor coil, four electrolytic capacitors, several ceramic capacitors and some capacitors made of polyester vinyl. The board has six heat sink components located in two lines. Resistors located on the IS200IGPAG2AED tend to be made of metal film material. The board has few integrated circuits.
Whether you need your order shipped to your overnight or need the most economical shipping option available, AX Control offers shipping options to meet your needs. This IS200IGPAG2AED Gate Drive Power Supply Board device's IS200IGPAG2AED Gate Drive Power Supply Board functional product number codes for a number of important IS200IGPAG2AED Gate Drive Power Supply Board device details through its series of consecutive functional naming chunks, including this IS200IGPAG2AED Gate Drive Power Supply Board product's normal Mark VI Series assembly, its normal style of PCB protective coating, and its full three-fold product revision table. This IS200IGPAG2AED Gate Drive Power Supply Board product offering's LEDs mentioned above are all accompanied by their own factory-printed nomenclature labels, with each LED displaying their own important Mark VI Series diagnoses. This IS200IGPAG2AED Gate Drive Power Supply Board product offerings include the:
- DS1 Gating LED that glows green
- DS2 Gating LED that glows yellow
- The DS3 5 V dc ON LED
- The DS4 5 V dc ON LED
- The DS5 Gating ON LED
- The DS6 Gating ON LED
- The DS7 20 V dc ON LED
- The DS8 20 V dc ON LED
