IS200JGNDG1A
- 4.93 (15)
- Click a star to rate this product
- 4.93 (15)
- Click a star to rate this product

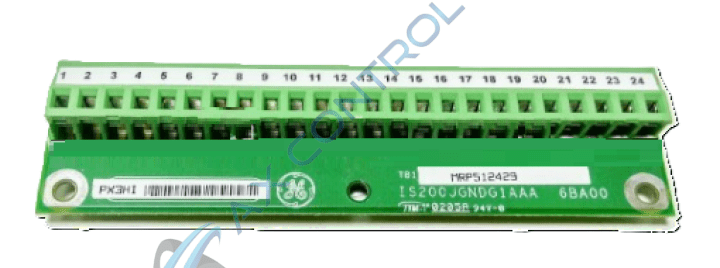

The IS200JGNDG1A Shield Ground Board was manufactured for General Electric's Mark VI Turbine Control System Series.
AVAILABILITY:
CALL FOR AVAILABILITY
- Part Number: IS200JGNDG1A
- SKU: IS200JGNDG1AGBTC
- Manufacturer: GE Boards & Turbine Control
- Series: Mark VI IS200
IS200JGNDG1A Technical Specifications
Functional Part Number | IS200JGNDG1A |
Series | Mark VI IS200 |
Manufacturer | GE Boards and Turbine Control |
Functional Acronym/Abbreviation | JGND |
Functional Description | Shield Ground Board |
Operating Temperature Range | -30 to +65°C |
Terminals | 24 Terminals on Euro Type Terminal Block |
Dimensions | 1.25" x 5.0" |
Frequently Asked Questions about IS200JGNDG1A
What type of Board is the IS200JGNDG1A board?
Are there many diagnostic signals on the IS200JGNDG1A?
Does the JGND board have any manually-configurable switches or jumpers?
About the IS200JGNDG1A
The IS200JGNDG1A model is a Shield Ground Board used in the Mark VI system. The Mark VI Turbine Control System Series encapulating this IS200JGNDG1A printed circuit board product, as it is known at length, exists with a series of specific possible functional applications primarily based in the control and management systems of General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This must be classified as quite the relevant functional upgrade upon the previous industry-standard Mark V Turbine Control System Series of almost the exact same full extended product series title, as the Mark V Series' established gas and steam turbine possible functional environment range was expanded to add the wind turbine functionality with the rollout of the soon to come Mark VI Series. This IS200JGNDG1A printed circuit board product offering's Mark VI Series is also valued given its status as one of the final-released GE Mark product series iterations to utilize the brand's patented Speedtronic control system technology across a wide range of devices.
Hardware Tips and Specifications
General Electric describes the JGND model as a Shield Ground Board; this board supplies ground connections for the user's shield drain wires. The JGND board will be grounded to the sheet metal bracket through two screws at each end of the terminal model; the shield wires provided by the user will connect to the Euro-type terminal block. The Euro-type terminal block is equipped with twenty-four terminals. When using the IS200JGNDG1A in the Mark VI system and attached to the terminal board's mounting bracket, up to two JGND models can be used, which will provide up to forty-eight ground connections.This specific IS200JGNDG1A Shield Ground Board is actually not the originally-developed device of its specific GE Mark VI Turbine Control System Series functionality; that would in fact have to be deemed the IS200JGNDG1 parent Shield Ground Board notably not taking advantage of this specific IS200JGNDG1A PCB's sole A-rated functional product revision.
As the IS200JGNDG1A board is mounted to a sheet metal bracket, it can be used to provide a path to the sheet metal ground at the board's mounting screw locations. The JGND board requires a nylon washer between the sheet metal and the board; the washer helps isolate the JGND board from the sheet metal to allow wiring of the board ground current into any of the desired ground locations. If the nylon washer is removed, it will authorize the conduction of any of the available ground currents into the sheet metal and will not require additional ground leads. All of the aforementioned material regarding the function and components required for proper operation of the IS200JGNDG1A came from the Mark VI GE Power Distribution, Modular Manual GEI-100613. These crucially-provided original IS200JGNDG1A Shield Ground Board instructional manual materials importantly make mention of a number of critical IS200JGNDG1A Shield Ground Board specifications, including its:
- Twenty four terminals provided on various Euro style terminal blocks
- A temperature range of negative thirty to sixty-five degrees celsius
- General product dimensions of 3.175 cm High by 12.7 cm Wide
- Sheet metal bracket mounting, as detailed above
Reviews For IS200JGNDG1A
Internal Review
(5.0)One of the excellent features of this model is that when using the nylon washers with a sheet metal grounding bracket, it will isolate the board and allow for the ground current on the JGND board to be wired into any of the preferred system locations. This IS200JGNDG1A product's sole A-rated functional product revision is actually the most common revision available across the entirety of this IS200JGNDG1A PCB's Mark VI Series, or any GE Mark Series for that matter. This IS200JGNDG1A device is available here for both repair and replacement. - AX Control Lead Technician
Repair Services For IS200JGNDG1A
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 1-2 weeks | $823 |
Our highly skilled technicians can repair your IS200JGNDG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
- 48-72hr Rush Repair
- Detailed Repair Reports
- AX Control Certificate of Warranty
AX Control Warranty Info
All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: | 3 Years |
All AC/DC and Servo Drives: | 2 Years |
All Motors: | 1 Year |
