About the IS200JPDMG1A
The IS200JPDMG1A is a PCB component made by General Electric for use within the Mark VI system. The Mark VI is part of the Speedtronic line of gas and steam turbine management series that has been in use for decades. The MKVI is one of the most advanced of the series and includes such features as Ethernet communications, triple redundant control configuration within the Control Module, and an HMI Operator Interface, all built around a PC running on a Windows platform. The Mark VI Series that this IS200JPDMG1A Power Distribution Board PCB product offering belongs to has to be described as a quite the distinctive functional upgrade upon the previously-established Mark V Turbine Control System Series of the same full extended series name, as this particular product series shirks the alternative energy-intended wind turbine possible applications introduced in the soon to come Mark VI Series. This IS200JPDMG1A Power Distribution Board product's Mark VI Series is separately attractive on its general promotional marketplace given its status as one of GE's final-developed Mark product series to utilize the patented Speedtronic control system technology in differing options.
Hardware Tips and Specifications

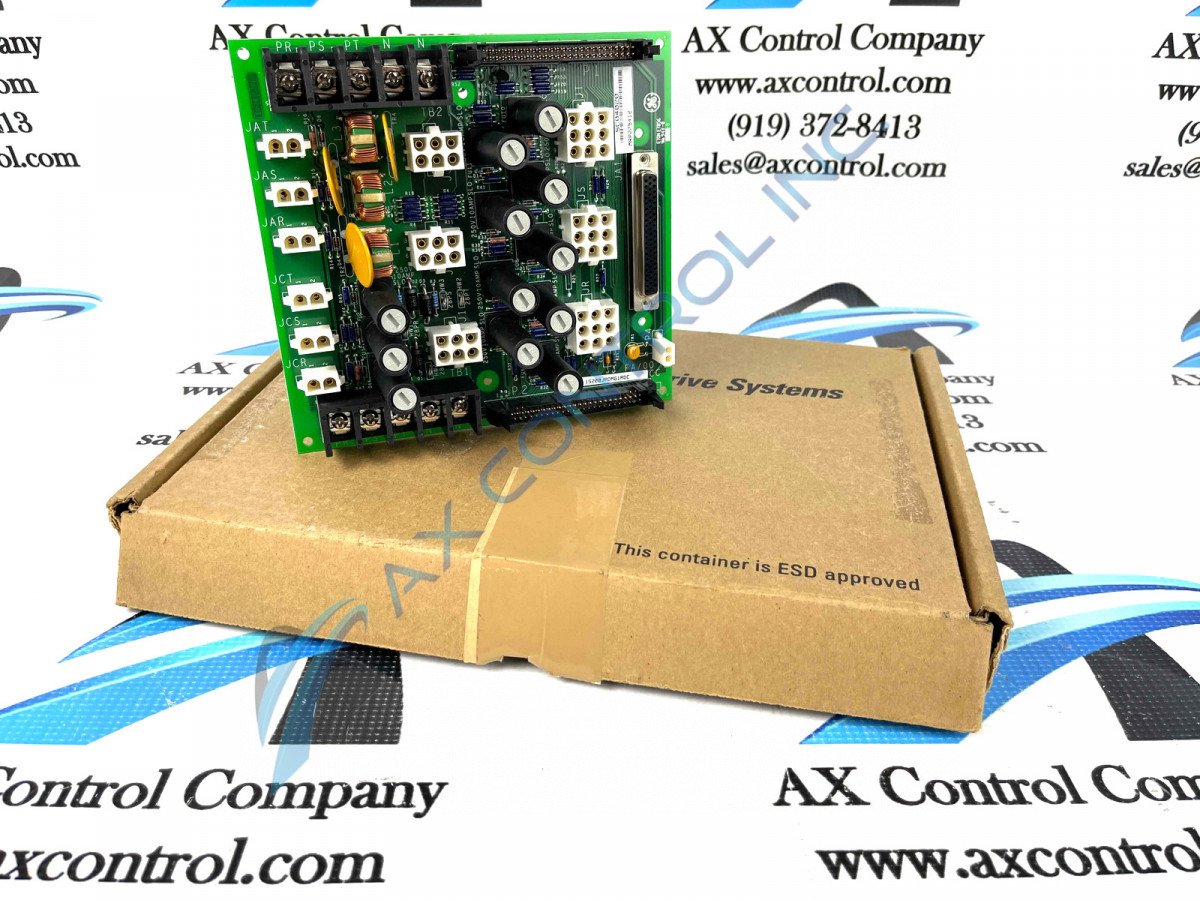

The IS200JPDMG1A is a Power Distribution board, as its industry nickname JPDM reveals. The board is built with two 50-pin connectors (P1/P2.) , and twelve fuses that are placed in three lines. The board has one DC62 female connector (JA1), which can be used in conjunction with a PPDA I/O pack. The IS200JPDMG1A board has two terminal blocks that are placed on opposite sides of each other on the PCB. These terminal blocks provide access to three separate power buses. Each screw located on the terminal blocks has a maximum input of 35 amps. The IS200JPDMG1A has a total of thirteen plugs, including three 9-position plugs, seven 2-position plugs, and three 6-position plugs. The board also includes:
- four varistors
- three inductor coils
- transistors
- various resistors
- and numerous capacitors
The IS200JPDMG1A uses DIN-rail mounting. In terms of installation dimensions, this power distribution board is relatively small, at 6.5 inches by 7 inches. GE publication GEI-100613 will give more information about the specifications, diagnostics, operation, and installation of the JPDM board. Technical support for the IS200JPDMG1A was provided by General Electric. Our team will happily provide a shipping quote on your order upon request. AX Control ships worldwide to anywhere not currently affected by US Embargo. This IS200JPDMG1A Power Distribution Board product does further benefit from its General Electric original manufacture as it is in possession of the IS200JPDMG1A Power Distribution Board functional product number that was specifically designed to illustrate a number of crucial IS200JPDMG1A Power Distribution Board hardware component and component elements through a series of stacked functional naming elements. For example, the IS200JPDMG1A functional product number here begins with an instance of the dual-functional IS200 series tag dictating this IS200JPDMG1A product's normal Mark VI Series assembly on top of its more standard domestic GE manufacture location.
