About the IS200RCSBG1BAA
The IS200RCSBG1BAA is a PCB board component manufactured to be a part of the Mark VI Speedtronic system. This was manufactured by GE as a control and management system for industrial gas and steam turbine systems, both large and small. The MKVI includes Ethernet communications and can be designed as either with Simplex or triple modular redundant control depending on the needs of the associated turbine system. This IS200RCSBG1BAA printed circuit board product offering's greater Mark VI Turbine Control System Series, as it is known at length, exists with a specific series of possible functional applications in the control and management systems of popular General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This must be considered quite the decent improvement upon the similar Mark V Turbine Control System Series as the Mark VI Series added the alternative energy-based wind turbine application to the mix.
Hardware Tips and Specifications

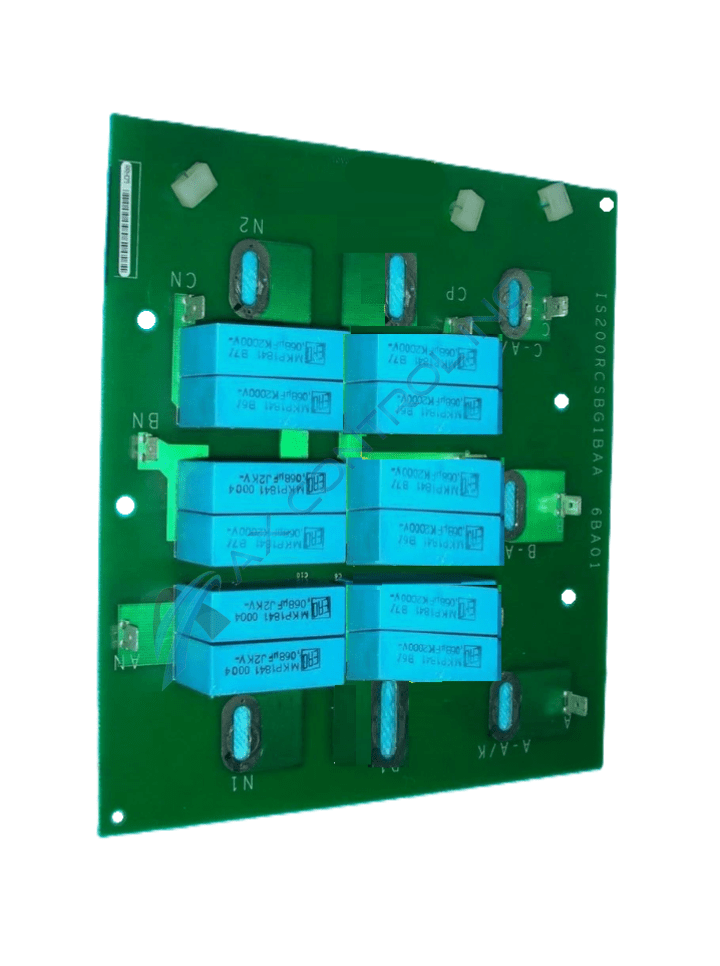

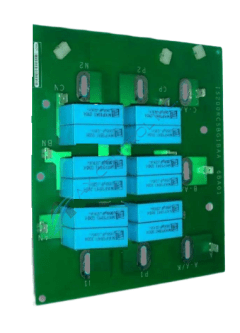

The IS200RCSBG1BAA is a 620 Frame RC Snubber Card. It protects diodes and SCRs from overvoltage issues by providing capacitors for snubber circuitry. One IS200RCSBG1BAA is required for each bridge. The IS200RCSBG1BAA has twelve capacitors on its surface. These are laid out in six pairs of two. Each capacitor has a capacitance of .095 to .150 µF and a clamping current of 8.5 Apk. Each pair of capacitors lines up with a single stab-on connector. The board also has seven terminal connections cut through its surface that are ringed with a conductive material. These are labeled N1, N2, P1, P2, and A-A/K, B-A/K, C-A/K. The board is marked with the General Electric logo and with codes like 6BA01. It is factory drilled in two corners. Detailed information regarding board function, components, requirements, and application data, as well as handling precautions and replacement procedures, may be found within General Electric publications like user guides and manuals. We recommend thoroughly reviewing these before beginning any maintenance procedures.
Most of our in-stock products can be ready to ship in just a few hours. If you order in-stock products before 3 pm we can usually have them boxed and shipped out to you by end of the day. This IS200RCSBG1BAA printed circuit board product offering or just PCB for short is actually not surrounded by all too many originally-developed instructional manual materials online, a likely symptom of its attribution to the now-discontinued Mark VI Turbine Control System Series. With this being the case, the IS200RCSBG1BAA functional product number itself can be considered a fine primary source of IS200RCSBG1BAA Board hardware component and component specification information, as it codes for a selection of critical IS200RCSBG1BAA device details through a series of consecutive functional naming chunks. For instance, this IS200RCSBG1BAA device's IS200RCSBG1BAA product number begins with an iteration of the dual-functional IS200 series tag delegating this IS200RCSBG1BAA Board's normal Mark VI Series assembly as well as a standard domestic original location of GE manufacture. Some of the other IS200RCSBG1BAA device information revealed in this manner include its:
- RCSB functional product acronym
- Group one Mark VI Series grouping
- Normal PCB Coating style
- Three-fold revision total
