About the IS200STURH4A
The IS200STURH4A is a PCB board component created by General Electric for use within the Mark VI or Mark VIe system. These management platforms are used for the management of heavy-duty gas and steam turbines. This IS200STURH4A Simplex Terminal Board printed circuit board product offering's greater Mark VI Turbine Control System Series, as it is known in full GE-specified title, exists with a series of specific functional and possible applications in the control and management systems of popular and General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This has to be highlighted as quite the significant functional improvement upon the Mark V Turbine Control System Series of just about the same full extended series title, as the Mark VI Series added the more alternative energy-based wind turbine possible functional application onto the rudimentary gas and steam turbine applications embraced with the previous Mark V.
Hardware Tips and Specifications

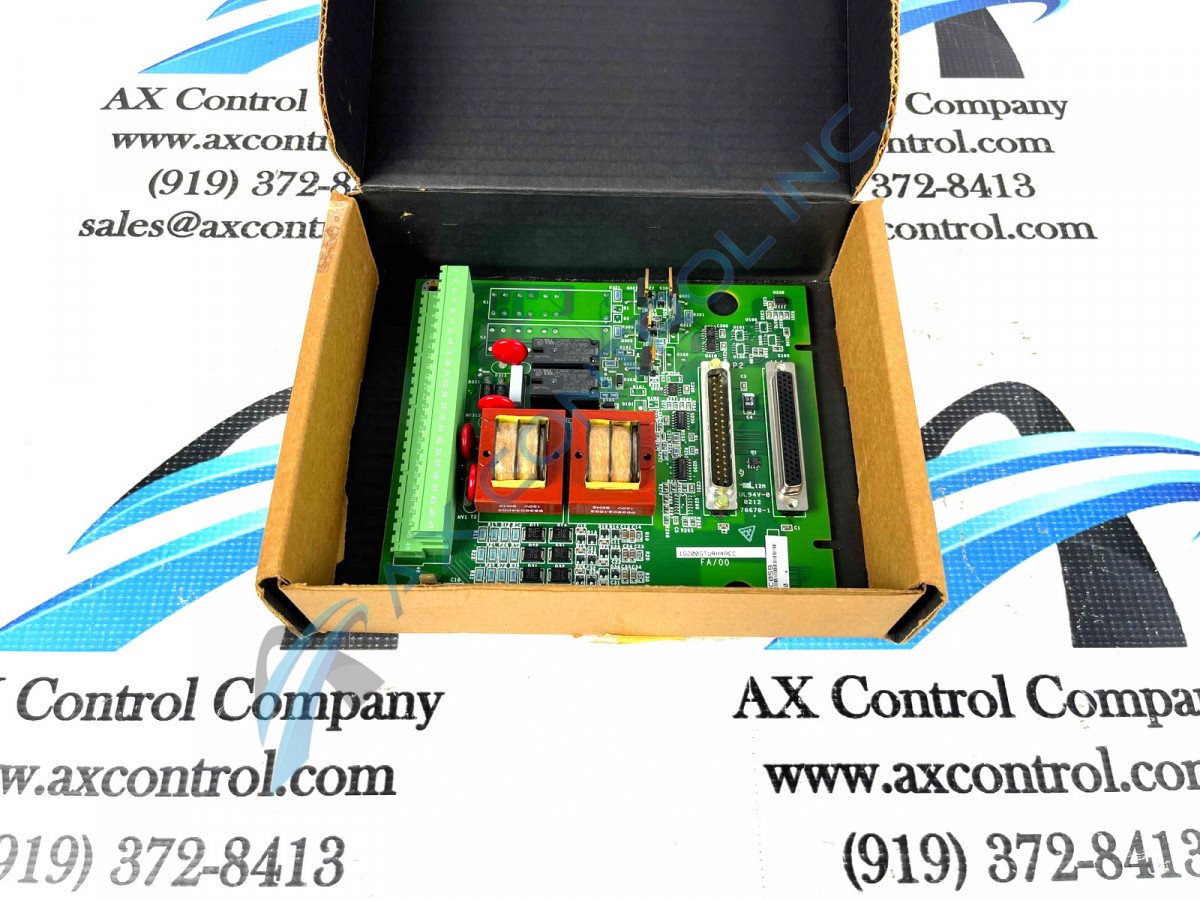

The IS200STURH4A functions as a Simplex Primary Turbine Protection Input terminal board. This is a simplex S-type terminal board version of the TTUR board that provides connection to drive a primary trip board. The IS200STURH4A is used in generator drive systems that require overspeed and primary synchronization, in mechanical drives that need overspeed protection but no synchronizing function, and for other applications that require the four pulse input circuits located on the PTUR board. The STUR board has the same physical size, I/O pack mounting, and customer terminal locations as other terminal boards. The IS200STURH4A can accept up to four-speed input signals. It includes a DC-62 pin connector to mount a single PTUR I/O pack. It also has a DC-37 pin cable connector for connection to various boards (TPRG/TPRL/TPRS/TPRA.) The board has a 48-screw terminal strip located along one edge. It also has two relay outputs for primary synchronization, and it can accept two PT inputs for primary synchronization as well. The board has no provision for an emergency stop circuit and needs an external test signal for speed input testing. The board has no jumpers or configurable hardware.
The IS200STURH4A is typically installed via screw mounts to a cabinet after it has been mounted to a sheet metal carrier. The board is factory drilled to allow for this mounting option. The entirety of this IS200STURH4A Simplex Terminal Board printed circuit board product offering's IS200STURH4A Simplex Terminal Board personalized product page here has been telling of a diligent visual inspection of the IS200STURH4A Simplex Terminal Board product offering itself, as caused by a complete lack of IS200STURH4A Simplex Terminal Board hardware component information available in online instructional manual materials for the Mark VI Series specifically. With this being the case, this IS200STURH4A Simplex Terminal Board functional product number can also be embraced as a decent IS200STURH4A Simplex Terminal Board device hardware information source, as it was developed to code for a set of important IS200STURH4A Simplex Terminal Board device hardware specifications through a series of consecutive functional naming elements. For instance, this IS200STURH4A Simplex Terminal Board device's IS200STURH4A Simplex Terminal Board product number begins with an iteration of the dual-functional IS200 series tag responsible for delegating this IS200STURH4A Simplex Terminal Board device's normal Mark VI Series assembly and domestic OG manufacture location. Some of the other IS200STURH4A Simplex Terminal Board device specifications indicated like this are its:
- STUR functional product abbreviation
- Conformal PCB coating style
- Group four Mark VI Series grouping
- A-rated functional product revision
