About the IS200TBAIH1A
The IS200TBAIH1A is a device which is known as an analog input card. This is a type of PCB (printed circuit board). The IS200TBAIH1A was developed by General Electric as a component device of the Mark VI series. The Mark VI is one version of the Speedtronic Mark lineup. These systems are used to manage and automate the operations of industrial gas and steam turbines. The Mark VI and the other series in the Mark line are used in a variety of industries across the globe. The Mark VI Series that this IS200TBAIH1A printed circuit board or PCB for short belongs to represents a massive upgrade upon the Mark V Turbine Control System Series of the same name that came before it, as this product series' potential functional applications were upgraded from steam and gas control systems and management systems alone to include more alternative energy-based wind turbine automated drive assemblies as well. This IS200TBAIH1A product's greater Mark VI Turbine Control System Series is additionally seen as an attractive GE Mark product series on its greater automated industrial marketplace as it is one of GE's final-developed Mark product series to incorporate the patented Speedtronic control system technology across a number of its different offerings.
Hardware Tips and Specifications

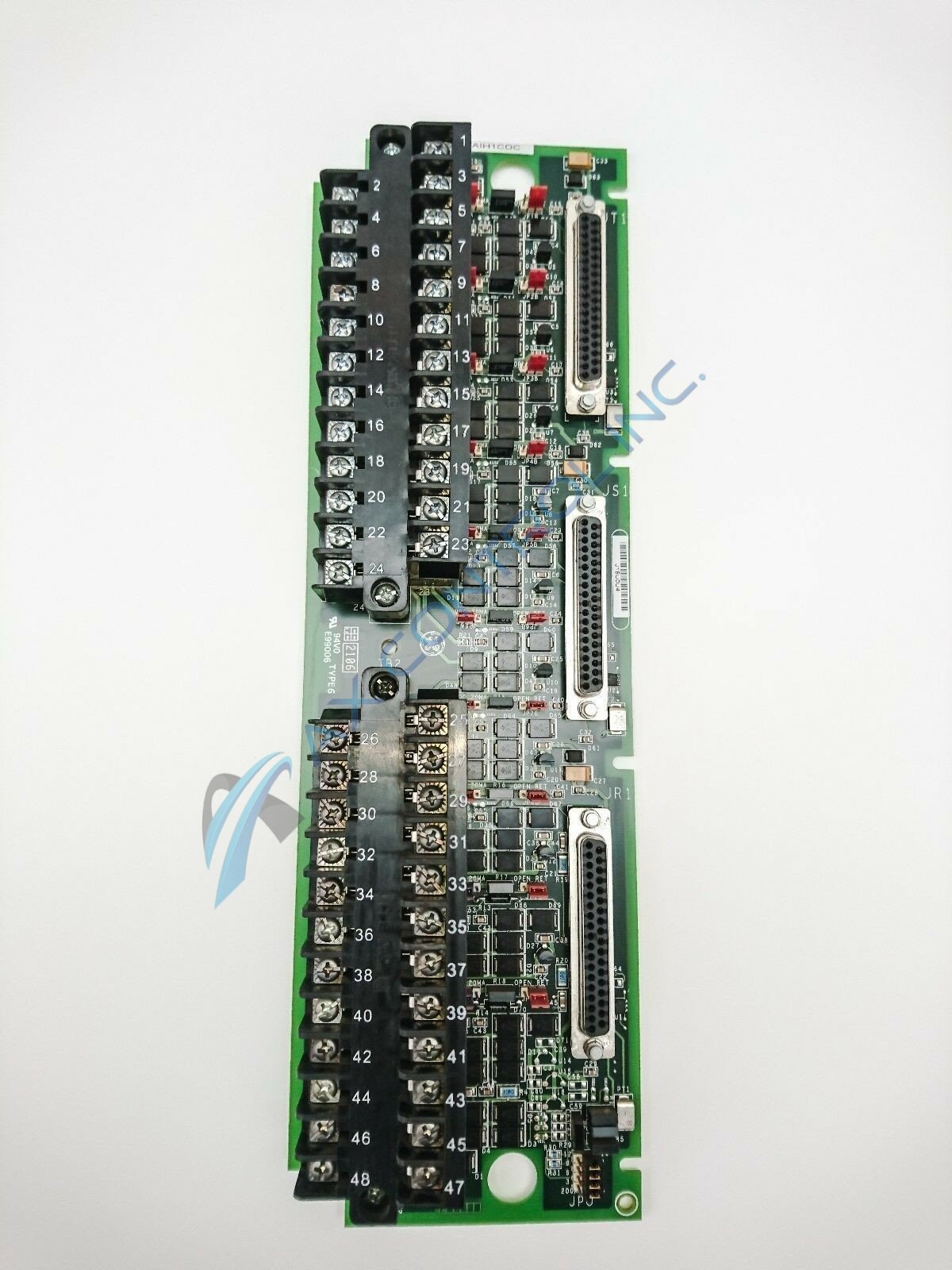

The IS200TBAIH1A is a long printed circuit board with a wide variety of technological components. The largest components on the IS200TBAIH1A are two long black terminal blocks which are fixed to the left edge. These terminal blocks are identified as TB1 and TB2. Both of the terminal blocks can contain up to twelve (12) silver metal terminals which look like cubes. Sitting along the opposite side of the IS200TBAIH1A are three (3) long jack connector ports. The connector ports each have thirty-seven (37) small female connectors which may be used to attach extra components or boards to the IS200TBAIH1A. The connectors are labeled as JT1, JS1, and JR1. The center of the IS200TBAIH1A is occupied by a variety of different components. At least ten (10) transistors are featured on the IS200TBAIH1A, mostly lined up in the center. Ten (10) variable resistors or potentiometers are also aligned down the center of the IS200TBAIH1A. Twenty (20) jumper pins arranged into pairs may be seen on the IS200TBAIH1A. Every pair of jumper pins is connected by a red jumper. Connecting the pairs of pins together can adjust the functions of the IS200TBAIH1A.
All of the above-listed IS200TBAIH1A Analog Termination Board hardware details have been synthesized from a detailed and technician-led visual inspection of the IS200TBAIH1A product itself, which was deemed necessary given the lack of pertinent IS200TBAIH1A instructional manual materials online; likely a symptom of General Electric's continuous attempts to remove infringed-upon materials offline due to copyright purposes. With this being the case, alternative sources of IS200TBAIH1A Board information such as the IS200TBAIH1A functional product number can be accessed; with the IS200TBAIH1A product number indirectly coding for a number of relevant IS200TBAIH1A Board hardware details through its characteristic series of General Electric-formulated functional naming segments. For instance, this IS200TBAIH1A functional product number begins with an iteration of the dual-functional IS200 series tag responsible for delegating both this IS200TBAIH1A PCB product offering's normal style of Mark VI Turbine Control System Series circuit board assembly as well as its more standard domestic original manufacture location. Some of the other relevant hardware component and component specifications introduced throught the IS200TBAIH1A functional product number include this IS200TBAIH1A device's:
- TBAI functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series product grouping
- A-rated functional product revision
