The IS200TBCIH1C Contact Input Terminal Board was manufactured for General Electric's Mark VI Turbine Control System Series.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200TBCIH1C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200TBCIH1C
SKU: IS200TBCIH1CGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200TBCIH1C Technical Specifications

Original Manufacturer	General Electric
Part Number	IS200TBCIH1C
Series	Mark VI Speedtronic
Functional Acronym	TBCI
Functional Description	Contact Input Terminal Board
Functional Revision 1	C
PCB Coating	Conformal Coating

About the IS200TBCIH1C

Hardware Tips and Specifications

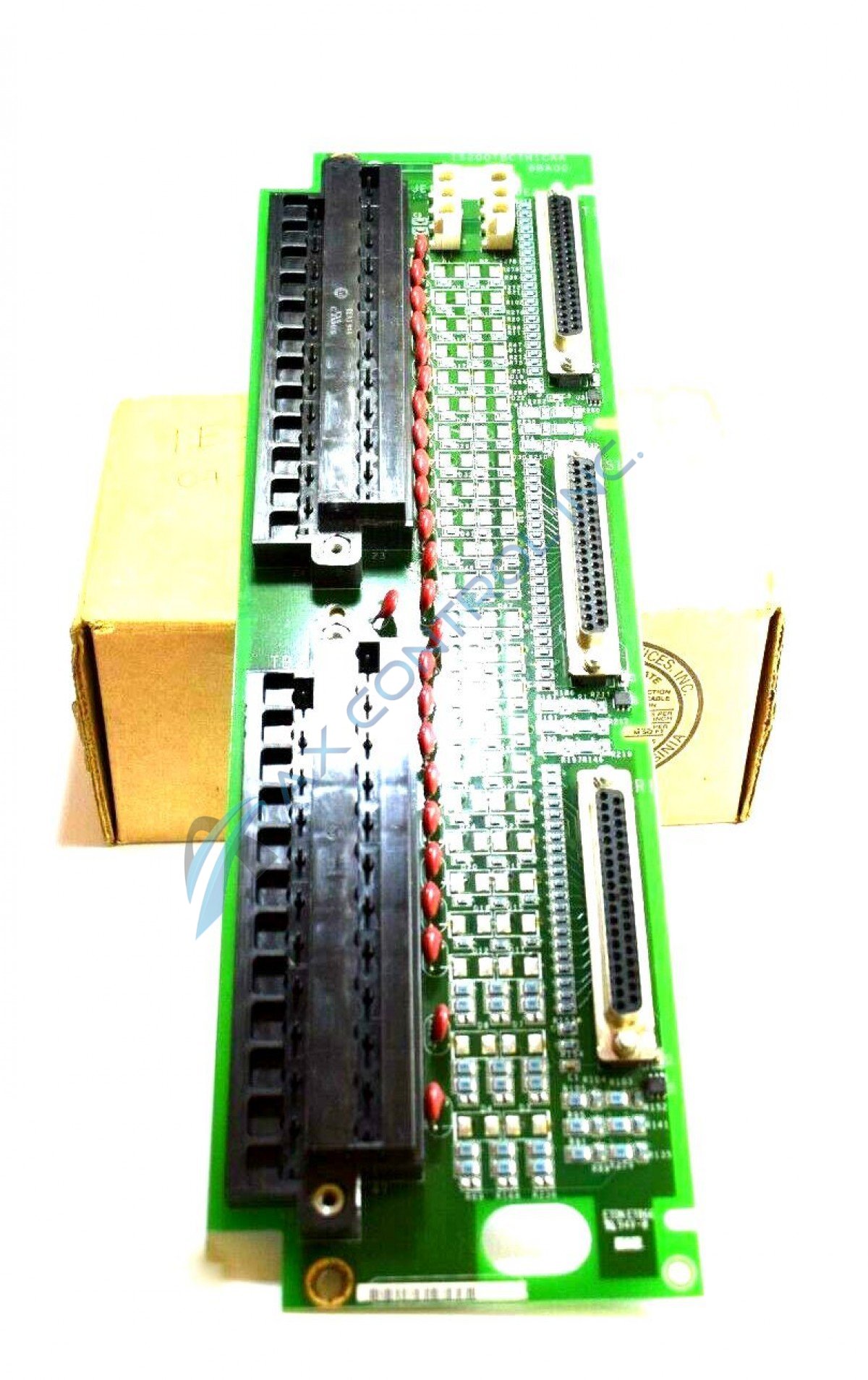

The IS200TBCIH1C contains numerous electronic components on its surface. The most noticeable of these components are two large black terminal blocks which contain twenty-four terminals apiece. Some other highightable hardware traits are its:

numbers one (1) through forty-eight (48) in white lettering
very long series of solid red MOVs or metal oxide varistors in the shape of circles
two (2) solid white connectors
a line of three (3) black and silver jack connector ports that are aligned vertically
diodes in parallel rows of four (4) diodes each
a vertical line of small resistors
- resistors are banded in blue, black, and white
- two (2) additional vertical rows can also be found underneath this top row

IS200TBCIH1C Functional Product Number Analysis

This IS200TBCIH1C functional product number begins with a dual-functioning naming segment in its IS200 series tag indirectly delegating its normal Mark VI Series assembly version as well as its domestic original manufacture location. Some of the other relevant hardware details embedded in the IS200TBCIH1C functional product number include this IS200TBCIH1C device's:

TBCI functional product acronym
conformal style of printed circuit board coating
group one Mark VI Turbine Control System Series product grouping
singular atypical C-rated functional product revision

Frequently Asked Questions about IS200TBCIH1C

Is this IS200TBCIH1C product something of a fragile GE product?

Yes. This IS200TBCIH1C device is a relatively fragile GE Mark VI Series product, given the fact that its base printed circuit board is narrow and disproportionate in terms of its component placement.

Does this IS200TBCIH1C device's base PCB make use of any factory-drilled installation holes?

Yes. Several factory-drilled installation holes exist in this IS200TBCIH1C device's base PCB; all of which should be ringed with an insulated material to avoid potentially-damaging surface voltages during installation or replacement.

Reviews For IS200TBCIH1C

Internal Review

(5.0)

This IS200TBCIH1C printed circuit board product offering is a Contact Input Terminal Board that falls under General Electric's Mark Series manufacturing umbrella. This IS200TBCIH1C device is protected through a non-standard conformal PCB coating style, and is additionally reinforced through the use of a C-rated primary functional revision straying from the typical A-rated product revision. This IS200TBCIH1C device makes use of three female ports on its right-hand side for interfacing with other Mark VI Series products, and is available here for both repair and replacement. - AX Control Lead Technician

Repair Services For IS200TBCIH1C

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1335

Our highly skilled technicians can repair your IS200TBCIH1C. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
