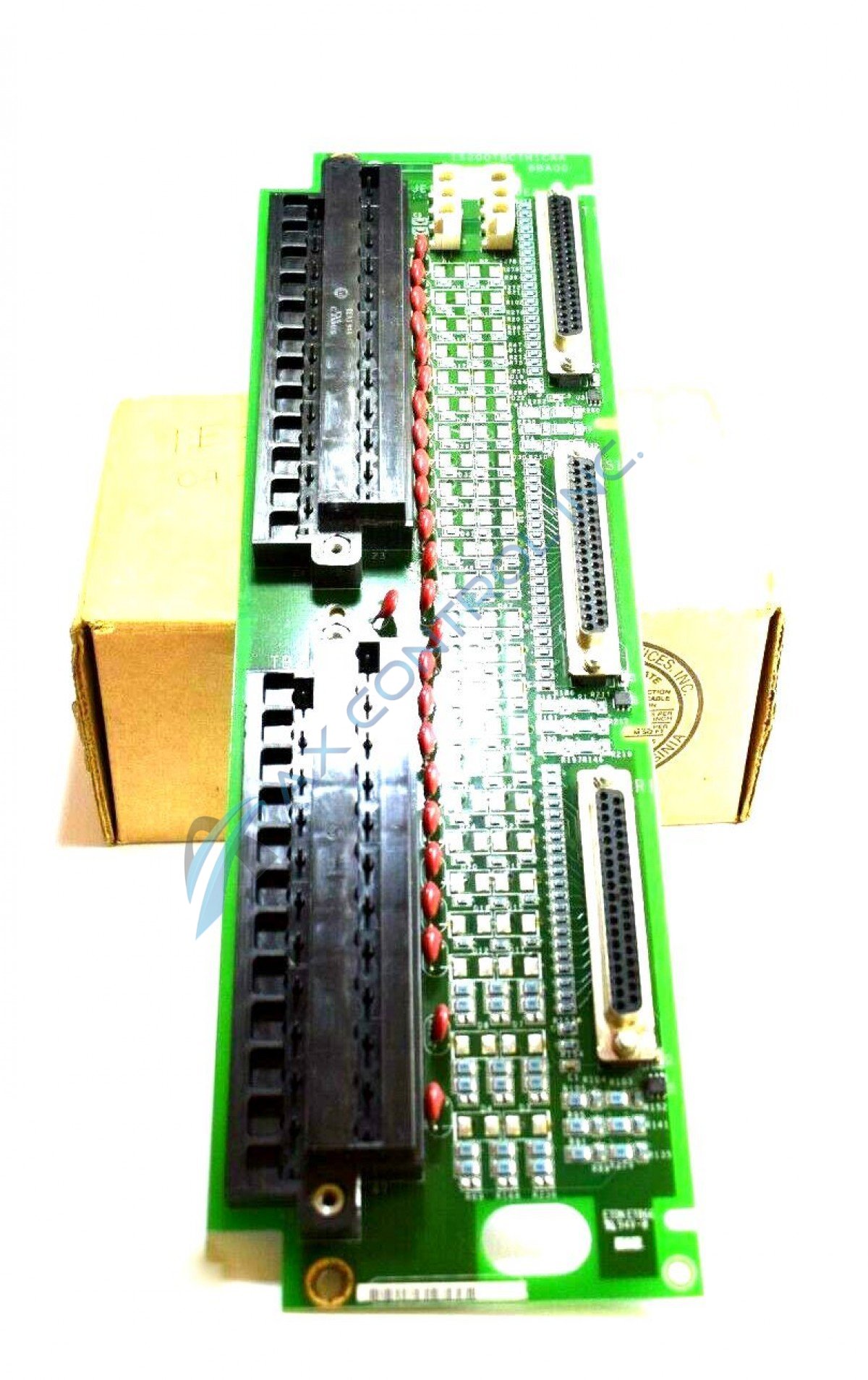

About the IS200TBCIH1CCD
The IS200TBCIH1CCD is a Contact Input with Group Isolation board. It is used in Mark VI Speedtronic systems. The IS200TBCIH1CCD can also be used in MKVIe systems.
The IS200TBCIH1CCD interfaces with VTCC/VCRC or PDIA I/O packs depending on the system it’s used in. The board accepts twenty-four dry contact inputs. These are wired to the board’s terminal blocks. Each of these has 12 barrier-type blocks. The board has a nominal 125 VDC floating excitation voltage. This ranges from 100 to 145 Vdc.
The IS200TBCIH1CCD has three d-shell-type connectors. These allow for the connection of cable connectors. The connectors are 37-pin connectors with latching fasteners.
The terminal blocks on the IS200TBCIH1CCD typically use #12 AWG wire per connection point. The board’s terminal blocks can be unplugged from the board when they require maintenance.
For additional information regarding the functionality of the IS200TBCIH1CCD, please refer to General Electric manuals or user guides. These publications will also give detailed information regarding installation, maintenance, and proper safety procedures. Only well-trained technicians should handle, maintain, or install Mark VI equipment.
