The IS200TBCIH3CCD Group Isolation Terminal Board was manufactured for GE's Mark VI Turbine Control System Series.
AVAILABILITY:
IN STOCK
SHIPS TODAY
- Part Number: IS200TBCIH3CCD
- SKU: IS200TBCIH3CCDGBTC
- Manufacturer: GE Boards & Turbine Control
- Series: Mark VI IS200
IS200TBCIH3CCD Technical Specifications
Manufacturer | General Electric |
Series | Mark VI Speedtronic |
Functional Abbreviation | TBCI |
Revision Total | 3 Revisions |
Backwards-Compatibility | 1st two revisions |
Manufacturer Location | Domestic |
Assembly Type | Normal Assembly |
Frequently Asked Questions about IS200TBCIH3CCD
Is this IS200TBCIH3CCD device's greater Mark VI Series considered a Speedtronic-powered series?
Would this IS200TBCIH3CCD device be protected by any protective coating?
About the IS200TBCIH3CCD
The IS200TBCIH3CCD is a board component for the Mark VI system. The Mark VI is one of GE’s management systems for gas/steam turbines that was released as part of the Speedtronic line, a line of turbine management systems that spanned over three decades. The Mark VI is built with TMR (triple modular redundant) architecture, which means it can be built with three entirely independent power supplies, IONets, and Control Modules. The Mark VI is also offered in Simplex form with one Control Module, IONet, and power supply. These two options allow the Mark VI to service both large, complex and smaller, more simply designed turbine setups.
Hardware Tips and Specifications

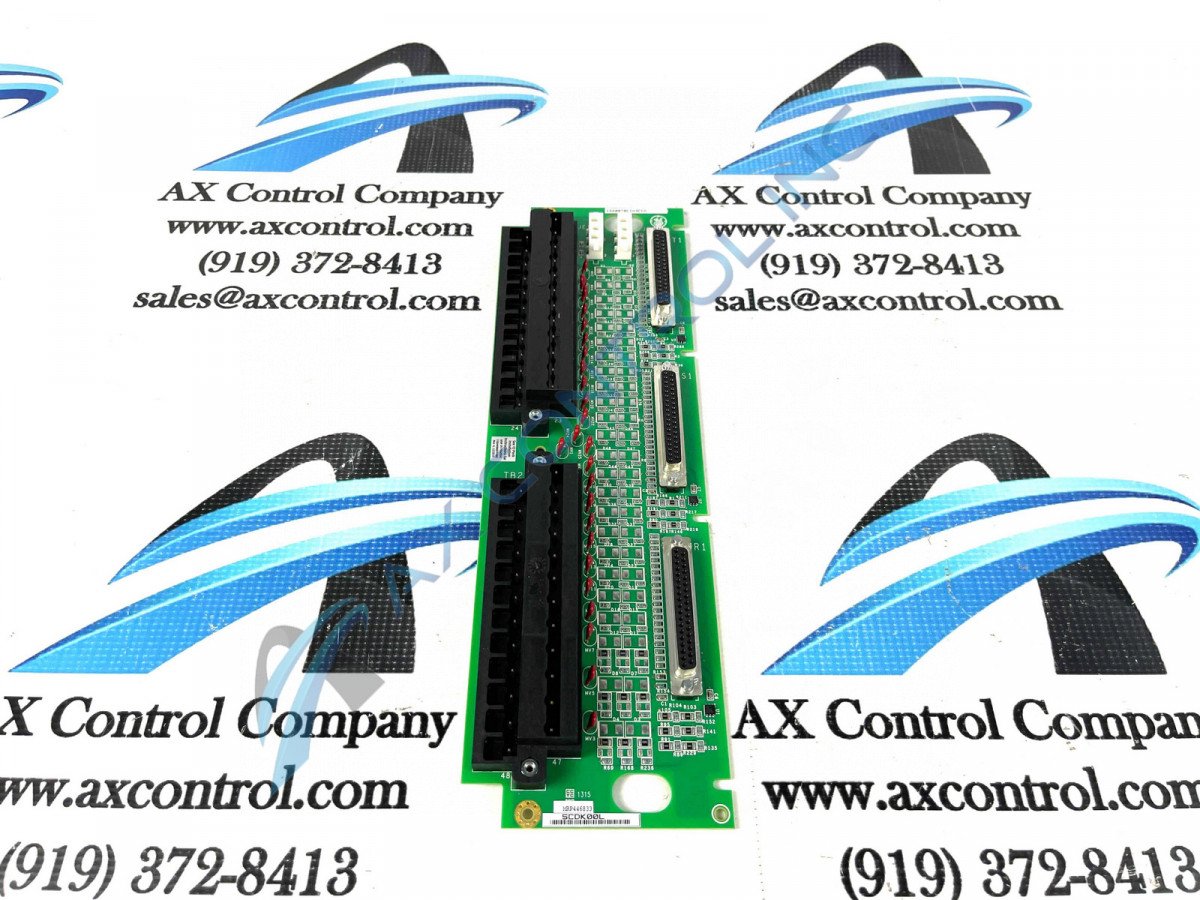

The IS200TBCIH3CCD is a Contact Input with Group Isolation terminal board. Its two barrier-type terminal blocks accept twenty-four dry contact inputs. DC power is routed to the board for contact excitation. The IS200TBCIH3CCD is built with two terminal blocks with twenty-four screw connections each. This allows for twelve contact inputs per board. It is possible to unplug the barrier-type terminal boards from the board for maintenance. The IS200TBCIH3CCD has three female pin connectors with latching fasteners (JT1/JS1/JR1.) It also has two plug connectors (JE1/JE2.) The IS200TBCIH3CCD has a shield bar connected to the board directly to the side of the terminal blocks. The board is notched at two corners. It also has two round openings in the board to facilitate screw connections to a frame. The board is built with metal oxide varistors and other components for surge protection and high-frequency noise suppression. AX Control has a number of programs to help lower our customers’ costs on our already competitive prices. Click on the links above to learn about our exchange program, surplus purchase, and warranty.
This IS200TBCIH3CCD printed circuit board product offering from General Electric is actually not the originally-developed device of its specific Mark VI Turbine Control System Series functional role, as that would have to be considered the IS200TBCIH3 parent PCB product notably not utilizing this IS200TBCIH3CCD device's three-fold significant revision history. This specific IS200TBCIH3CCD Board fact was only uncovered upon a diligent technician-led visual inspection of the IS200TBCIH3CCD functional product number itself, which was deemed as necessary given this IS200TBCIH3CCD product's low amount of originally-printed instructional manual materials available on the internet. The IS200TBCIH3CCD functional product number exposes a number of critical IS200TBCIH3CCD Board details through a series of consecutive functional naming elements. For example, this IS200TBCIH3CCD functional product number in specific is started off through an inclusion of the dual-functioning IS200 series tag indirectly delegating this IS200TBCIH3CCD device's normal Mark VI Series assembly version on top of its more typical domestic original GE manufacture location. Some of the other relevant IS200TBCIH3CCD hardware qualities revealed through the IS200TBCIH3CCD functional product number research medium include the board's:
- Group three Mark VI Series product grouping
- Conformal PCB coating style
- Three-fold revision table
- TBCI functional product abbreviation
Reviews For IS200TBCIH3CCD
Internal Review
(5.0)This IS200TBCIH3CCD printed circuit board product offering from General Electric is something of an eccentrically-built Mark VI Turbine Control System Series device, despite its initial classification as a normal assembly style of Mark VI Series product. This IS200TBCIH3CCD device additionally does utilize a conformal style of PCB coating that is growing to become the current industry standard, and offers a unique three-fold revision history with an uncommon D-rated artwork configuration revision. Available here to repair or replace today. - AX Control Lead Technician
