IS200TBTCH1BAA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
General Electric MK VI TMR Thermocouple Input Terminal Board IS200TBTCH1BAA is used with a VTCC board and fans the inputs to the VTCC R, S, and T racks. A maximum of two #12 AWG wires per point with 300-volt insulation can be used with the TBTC board.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS200TBTCH1BAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TBTCH1BAA
  • SKU: IS200TBTCH1BAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200TBTCH1BAA Technical Specifications

Instruction Manual GEH-6421C Vol. II Mark VI System Guide
Part Number IS200TBTCH1BAA
Series Mark VI Turbine Control System
Manufacturer General Electric
Functional Acronym/Abbreviation TBTC
Product Type Thermocouple Input Terminal Board
Used in Conjunction With A VTCC Board

Frequently Asked Questions about IS200TBTCH1BAA

There are two groups of TBTC board. How do the two groups differ?

The two groups of the TBTC board are the TBTCH1C and the TBTCH1B; the IS200TBTCH1BAA model is part of the second group. The main differences between the two groups are the application types. The application type for the TBTCH1C model is a simplex system, whereas the application type for the TBTCH1B model is used in Triple Modular Redundant systems. Another difference between the two thermocouple input boards is the type of thermocouple inputs used; the TBTCH1C will send out E, J, K, S, or T thermocouple inputs, whereas the TBTCH1B model will provide thermocouple inputs by fanning them out to the conjoining VTCC board.

How is the IS200TBTCH1BAA model installed in the Mark VI series?

The IS200TBTCH1BAA model is installed by wiring them directly to two I/O terminal blocks. For more information about installation procedures refer to the attached GEH-6421C Mark VI Turbine Control System Instruction Guide.

About the IS200TBTCH1BAA

The IS200TBTCH1BAA printed circuit board or PCB is a device which is called a thermocouple terminal board. The IS200TBTCH1BAA is one of many components in the Mark VI series by General Electric or GE. The Mark VI is one of the series that make up the Mark family of products made for gas/steam turbine control and automation.

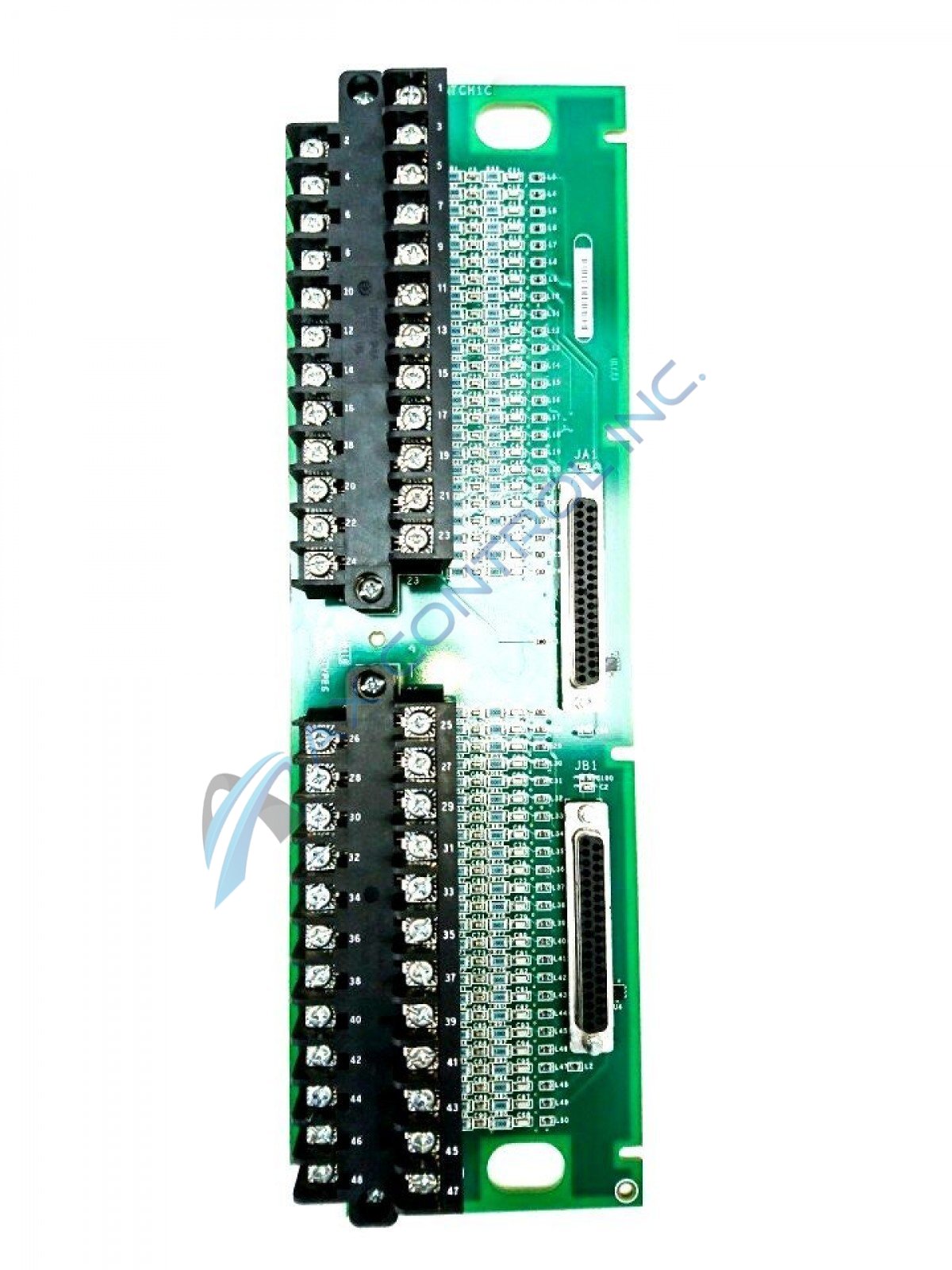

The IS200TBTCH1BAA is a large rectangular circuit board that contains a number of various electronic components including terminals, resistors, capacitors, and ports. Two large terminal blocks which are solid black are positioned along the left edge of the IS200TBTCH1BAA which each contain twenty-four terminals. These terminals are made of silver metal and in the shape of cubes. Each of these terminals has been identified with the numbers one through forty-eight in white print. These terminal blocks are named TB1 and TB2.

Along the right border of the IS200TBTCH1BAA are two (2) jack connector ports which may be used to attach additional components or boards to the IS200TBTCH1BAA. The connector port on the top is labeled as JA1 and the connector port beneath it is called JB1. In the middle of the IS200TBTCH1BAA are two (2) large collections of very small components. Both of these groups have five (5) vertical rows of components. On the left side is a row of resistors which are blue and white. Directly to the right of this row is a row of small silver capacitors. These rows of resistors and capacitors repeat on the right. A long row of components that are identified by the letter L is situated on the right side.

Reviews For IS200TBTCH1BAA

Internal Review
(4.0)

While there are two groups of TBTC models, there are many differences between the two group types. One of the main things is that the TBTCH1C model has more information on it, while it is slightly confusing whether or not the IS200TBTCH1BAA model will operate the same as the TBTCH1C model. - AX Control Tech

Repair Services For IS200TBTCH1BAA

Type Lead Time Price Action
Repair Service 1-2 weeks $1145

Our highly skilled technicians can repair your IS200TBTCH1BAA. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
