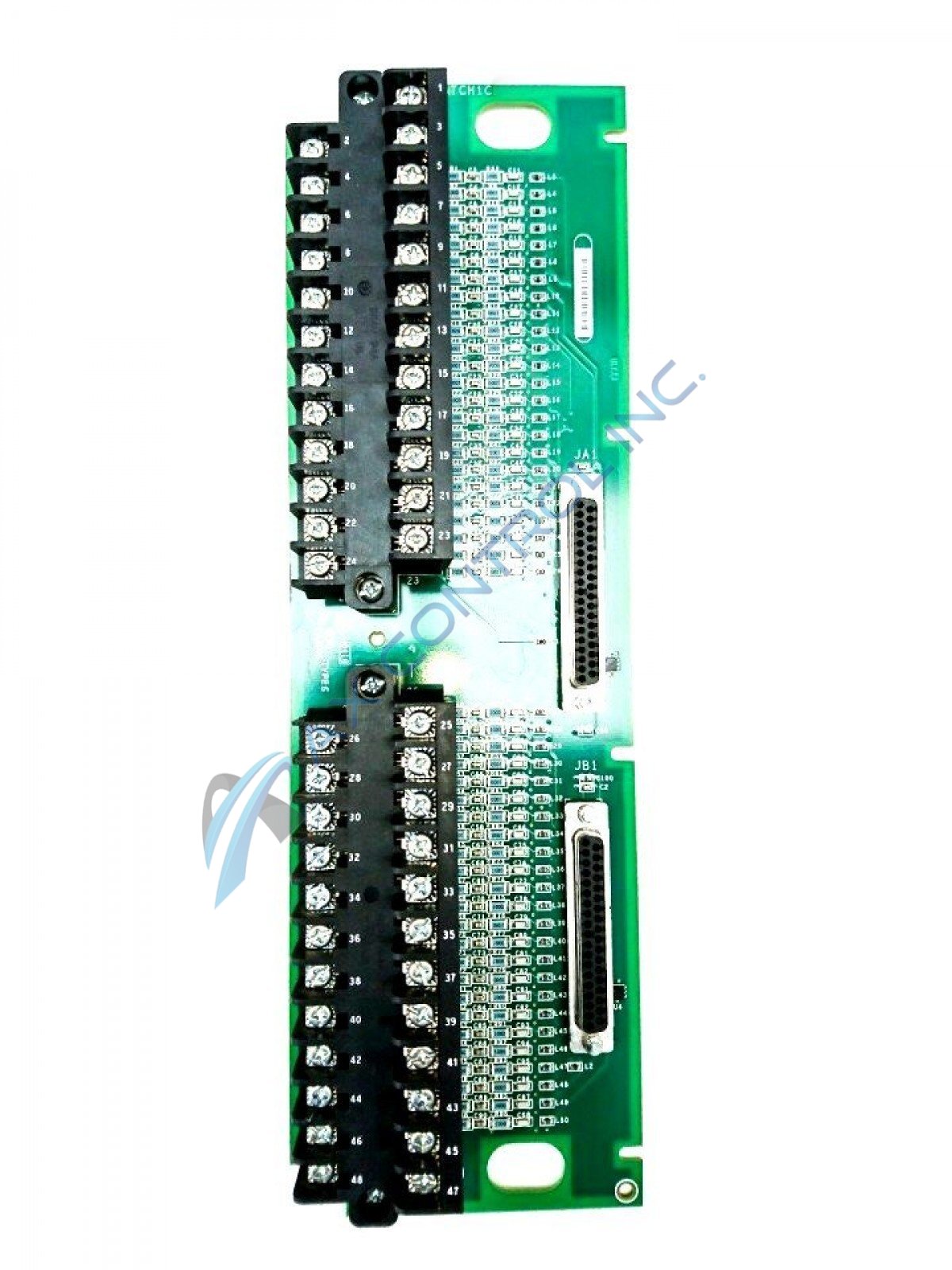

About the IS200TBTCH1BCB
The IS200TBTCH1BCB is a thermocouple input terminal board (TBTC) created for use within the Mark VI system from GE. This system was marketed as part of GE’s Speedtronic line of gas/steam industrial turbine management control, which began in the 1960s with the Mark I. This IS200TBTCH1BCB printed circuit board product offering or just PCB for short's greater Mark VI Turbine Control System Series, as it is known at length, is generally very much desirable on greater relevant promotional markets, particularly for its status as one of the final-developed GE Mark product series exhibiting the patented Speedtronic control system technology across an array of devices.
Hardware Tips and Specifications
The TBTC can be used with both the Mark VI and Mark VIe system. In Mark VI systems, the board is designed to interface with a VTCC processor. It supports both TMR and simplex applications. In Mark VIe systems, the board works in conjunction with a PTCC I/O pack. It can also support simplex and TMR applications. It can also be used for dual applications. The IS200TBTCH1BCB is designed with two 12-input terminal strips. It also has six d-shell connectors designed for connecting cables. These are located on the opposite edge from the terminal strips. The board has factory drilled holes available on the surface of the board that will allow the board to be easily mounted into place. The IS200TBTCH1BCB offers high-frequency noise suppression. It has two CJ reference devices. Thermocouple signals using this board fan out to 3 J-connectors. For additional important information about the board composition and installation, please refer to Mark VI manuals and data sheets. These will also provide information on proper handling and safety precautions.
AX Control automatically warranties every purchase made from us. Refer to our warranty page located here on our website for additional information. Purchases made before 3 pm are typically shipped on the day of purchase. If your item is not currently available, shipment will take longer. This IS200TBTCH1BCB printed circuit board product offering's greater Mark VI Turbine Control System Series is really not very well-contextualized online within any great amount of originally-printed instructional manual materials, aas was likely encouraged by its status as a now-discontinued legacy style of Mark GE product series. With this being the case, this IS200TBTCH1BCB product offering's IS200TBTCH1BCB functional product number itself can be introduced as a fine source of IS200TBTCH1BCB Board hardware component and component specification information, as it codes for a series of relevant IS200TBTCH1BCB device hardware details through a series of consecutive functional naming chunks. One such chunk, for example, would be the initial standard IS200 series tag chunk that is dual-functional as it serves to describe both this IS200TBTCH1BCB product's normal Mark VI Series assembly as well as its domestic original manufacture location. Some of the other important IS200TBTCH1BCB device qualities indicated in this manner include its:
- TBTC functional product acronym
- Group one Mark VI Series grouping
- Conformal PCB coating type
- Three-fold revision table
