IS200TFBAH1A

About the IS200TFBAH1A

General Electric or GE created the IS200TFBAH1A printed circuit board or PCB to be a component in their Mark VI series. The Mark VI and the other series in the Mark lineup were developed by General Electric for the automation and management of all of the processes of gas and steam turbines.

Hardware Tips and Specifications

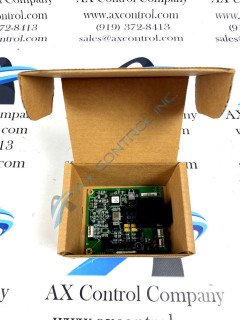

The IS200TFBAH1A is a large printed circuit board shaped like a square. This PCB has a variety of different electronic components; each one of these components should be accompanied by their own factory-printed nomenclature label for convenient diagnostic identification purposes.

• The most prominent component on the IS200TFBAH1A is a large black component known as a transformer
  •  this transformer is shaped like a cube
  • a white label is attached to the side of this transformer
    • this label features the full part number and other information in black print
•  a group of jumper pins is positioned on the right edge of the IS200TFBAH1A
  • these pins are large and made from silver metal
  • they have been mounted onto a piece of grey plastic
  • this set of jumpers has been labeled as J3
• The IS200TFBAH1A features several black integrated circuits
  • a large integrated circuit which is shaped like a square has been placed on the bottom half of the IS200TFBAH1A
    • this integrated circuit features a white label which lists information about the device including the full part number
    • to the right of this component is a smaller mid-size integrated circuit
    • two (2) more integrated circuits which are small have also been placed on the right half of the IS200TFBAH1A
•  A large silver capacitor which is shaped like a square is positioned directly in the center of the IS200TFBAH1A
