IS200TPIMG1A
- 4.93 (15)
- Click a star to rate this product
- 4.93 (15)
- Click a star to rate this product
The IS200TPIMG1A Protective Interface Board was manufactured for GE Industrial Systems' Mark VI Turbine Control System Series.
AVAILABILITY:
CALL FOR AVAILABILITY
- Part Number: IS200TPIMG1A
- SKU: IS200TPIMG1AGBTC
- Manufacturer: GE Boards & Turbine Control
- Series: Mark VI IS200
IS200TPIMG1A Technical Specifications
OEM | GE Energy |
Series | Mark VI Speedtronic |
Part Number | IS200TPIMG1A |
Product Type | Protective Interface Board |
Functional Acronym | TPIM |
Country of Manufacture | USA |
Weight | 10 ounces |
Shipping Dimensions | 18x12x12 inches |
About the IS200TPIMG1A
Greater Product Series Information
The IS200TPIMG1A is a device known as a protective interface board or PCB for short. This is a form of printed circuit board or PCB. The IS200TPIMG1A is one of many printed circuit boards in the Mark VI series. The Mark VI is:
- the latest of several series in the Mark lineup by GE or General Electric
- rather self-explanatory based off of its full extended Mark Series moniker at least
- has a set of specific intended settings in the management systems and control systems of General Electric-compatible gas, wind, and steam turbine automated drives
- quite the noteworthy upgrade upon the Mark IV and Mark VI Turbine Control System Series from General Electric that came before
- these specific series had a more specific set of functional applications in gas and steam turbine-oriented settings alone
This IS200TPIMG1A PCB is not the originally-developed product of its specific Mark VI Series functionality, as that would actually have to be considered the IS200TPIMG1A parent PCB not utilizing this IS200TPIMG1A product's sole A-rated functional product revision.
Hardware Tips and Specifications
The IS200TPIMG1A features a variety of electronic components in different sizes. The IS200TPIMG1A contains:
- three (3) terminal blocks which are lined up close to the lower edge of the IS200TPIMG1A
- all three (3) of these terminal blocks have twenty (20) terminals which are silver and made from metal
- these have been identified by the labels TB1, TB2, and TB3 and are arranged horizontally
- right above these terminal blocks in the center of the IS200TPIMG1A is a collection of fuses
- these fuses are white in the center and have been bound with metal ends
- they have been broken up into two (2) groups of four (4) fuses each
- all of these fuses have a 125 (125V) volt voltage

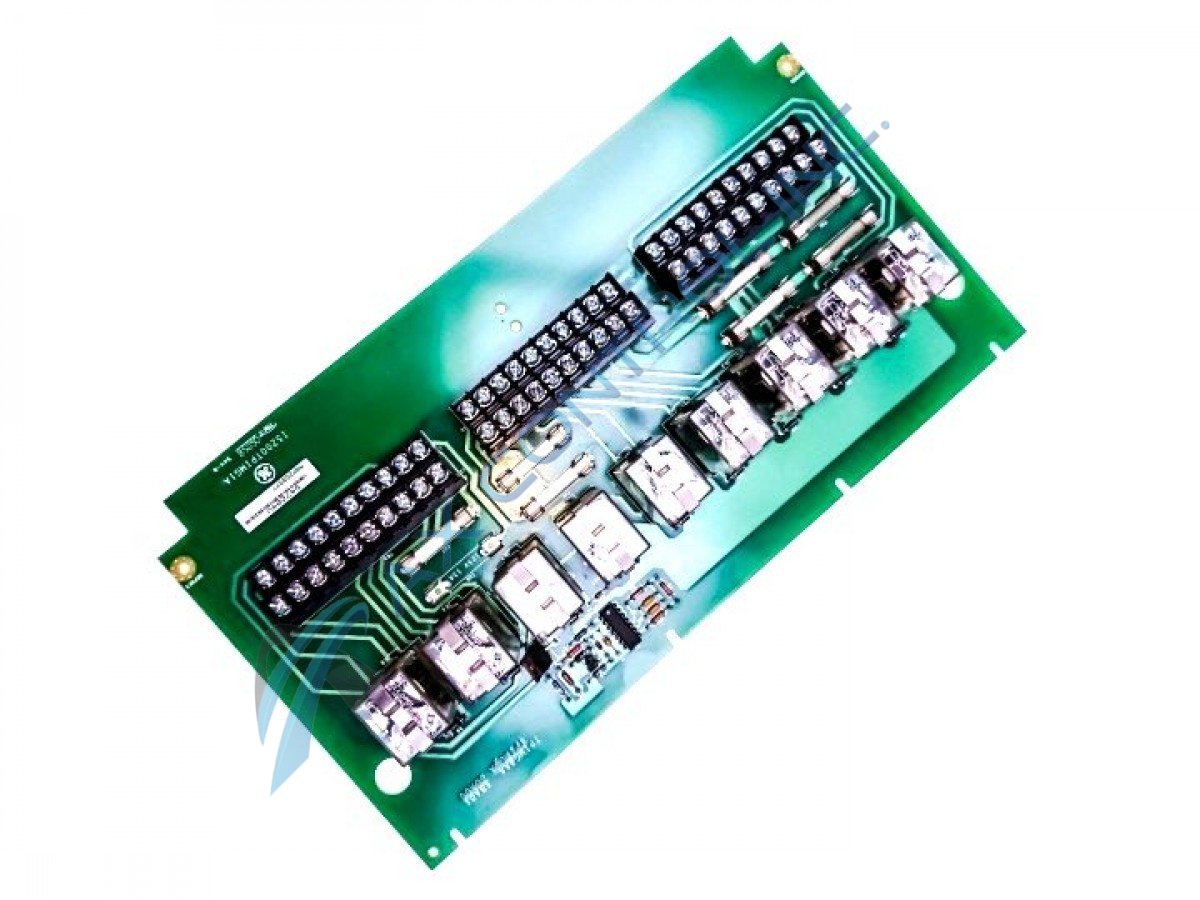

nine (9) large relays, also known as contactors are featured on the top half of the IS200TPIMG1A. These relays are lined up horizontally on the PCB. These relays or contactors are black and white with covers that are made of clear plastic. A collection of very small components can be found on the top right half of the IS200TPIMG1A. One (1) integrated circuit is vertically situated in the center of this group of components. A small transistor which is shaped like a half-circle is sitting in the right half.
IS200TPIMG1A Functional Product Number Breakdown
The IS200TPIMG1A functional product number is important as it indicates various relevant details in a series of functional naming segments. For example, this IS200TPIMG1A product's IS200TPIMG1A functional product number begins with the dual-functional IS200 series tag responsible for delegating this IS200TPIMG1A product's normal Mark VI Series assembly version on top of its more typical domestic location of original General Electric manufacture. To be specific, this IS200TPIMG1A PCB was originally manufactured in General Electric's Salem, Virginia factory plant location. Some of the other relevant hardware specifications revealed through the IS200TPIMG1A functional product number medium include this IS200TPIMG1A device's:
- TPIM functional product abbreviation
- Normal PCB coating style
- Group one Mark VI Series product grouping
- A-rated functional product revision
Frequently Asked Questions about IS200TPIMG1A
What style of Mark VI Series revision does this IS200TPIMG1A device possess?
What is the functional purpose of the TPIM functional product abbreviation?
Reviews For IS200TPIMG1A
Internal Review
(5.0)The IS200TPIMG1A printed circuit board product offering from General Electric was originally designed and manufactured for the Mark VI Turbine Control System Series, and features a normal style of Mark VI Series assembly that is laden with various voltage-limiting hardware component standardized to this recent Mark Series iteration. Six total slots have been made into the sides of this IS200TPIMG1A product's base printed circuit board to encourage a unique style of drive assembly mounting. This IS200TPIMG1A PCB is available for repair and replacement today. - AX Control Lead Technician
Repair Services For IS200TPIMG1A
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 1-2 weeks | $811 |
Our highly skilled technicians can repair your IS200TPIMG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
- 48-72hr Rush Repair
- Detailed Repair Reports
- AX Control Certificate of Warranty
AX Control Warranty Info
All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
