About the IS200TPROH1A
General Electric created the IS200TPROH1A to be a component in the Speedtronic Mark VI series. This series is one of several in the Mark line by GE. The IS200TPROH1A is a device which is called a protective termination board. General Electric’s Mark line has been used for the management and automation of gas and steam turbines for several decades since the debut of the Mark I in New Jersey in 1969.
Hardware Tips and Specifications

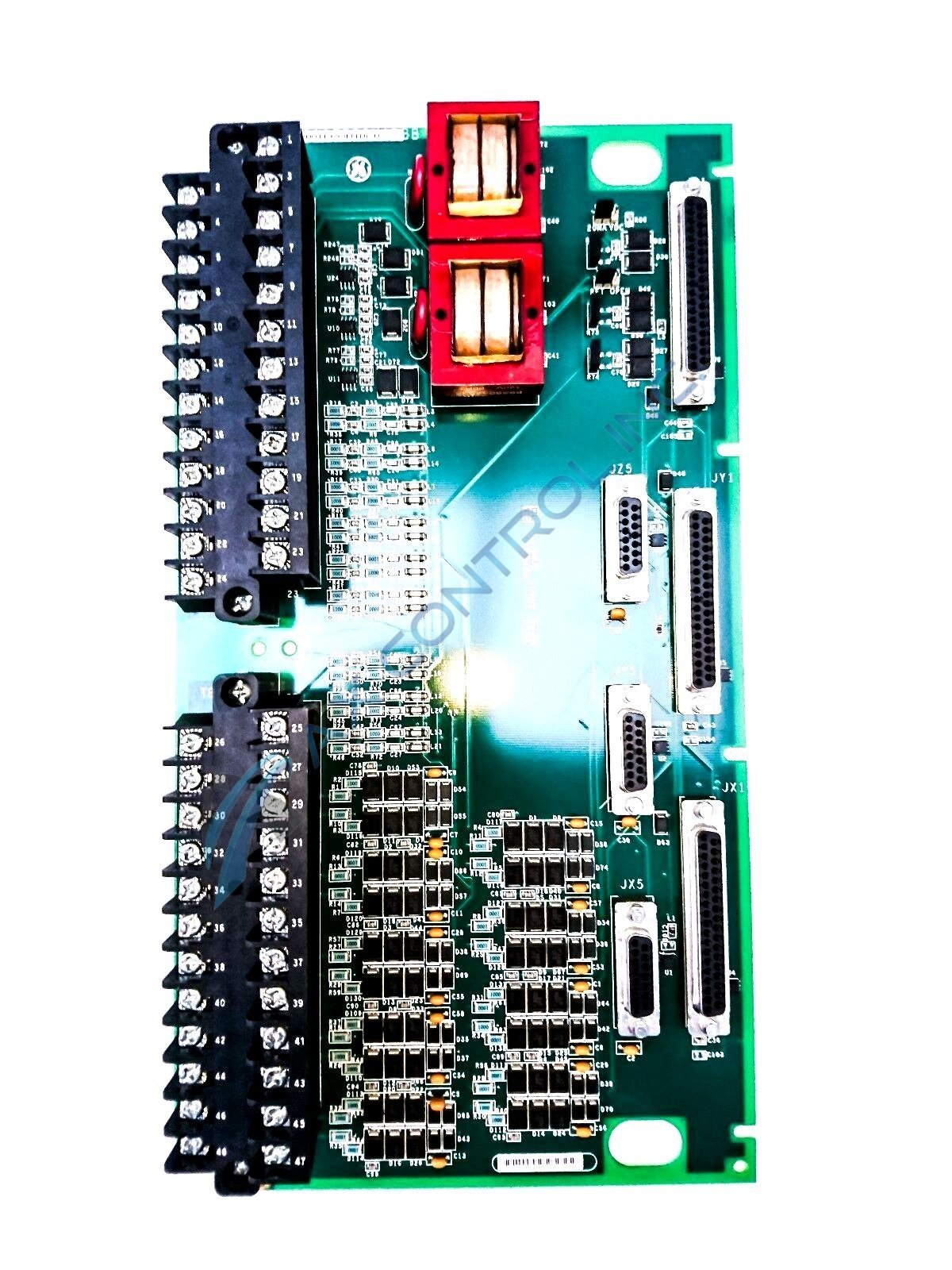

The IS200TPROH1A is a long printed circuit board with many electronic components ranging from very small to large. Two black terminal blocks have twenty-four (24) silver terminals made from metal. Each is labeled with white numbers from one (1) to forty-eight (48). Sitting along the opposite end of the IS200TPROH1A are three (3) large connector ports that may be used to attach additional components to the IS200TPROH1A. Three (3) more connector ports which are about half as large as the others are sitting in a vertical line to the left of these. Two (2) large relays that are red with yellow in the center have been paired vertically at the top of the IS200TPROH1A in the center. A red metal oxide varistor or MOV is placed directly to the left of these MOVs. Much of the lower half of the IS200TPROH1A is occupied by a group of diodes that are shaped like black rectangles. These diodes are arranged in horizontal rows. Many very small resistors covered in bands in blue and black have been arranged in vertical rows along the length of the IS200TPROH1A. Many very small capacitors that are silver are also aligned on the left of the IS200TPROH1A.
This IS200TPROH1A Protective Termination Board device's complete IS200TPROH1A Protective Termination Board functional product page here, as you might have been able to tell, is truly not telling of many original IS200TPROH1A Protective Termination Board device instructional manual materials, and a diligent visual inspection of the IS200TPROH1A Protective Termination Board product was adopted. One other strong alternative source of IS200TPROH1A Protective Termination Board hardware component and component specification information can be embraced in its IS200TPROH1A Protective Termination Board functional product number that was designed by GE to code for a series of critical IS200TPROH1A Protective Termination Board device hardware qualities through a series of consecutive functional naming elements. For instance, this IS200TPROH1A Protective Termination Board device's functional product number begins with an iteration of the dual-functional IS200 series tag indicating this IS200TPROH1A Protective Termination Board device's normal Mark VI Series assembly on top of its domestic original location of GE manufacture. Some of the other IS200TPROH1A Protective Termination Board qualities indicated in this manner are its:
- TPRO functional product acronym
- Group one Mark VI Series grouping
- Conformal PCB coating style
- A-rated product revision
