GE Mark VI Board IS200TPROH1BBB

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a IS200TPROH1BBB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TPROH1BBB
  • SKU: IS200TPROH1BBBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

Product Description

General Electric created the IS200TPROH1BBB protective termination board. This printed circuit board or PCB was developed for the Mark VI series. Mark VI and the other series in the Mark lineup are used to automate and manage all of the processes in industrial gas and steam turbines.

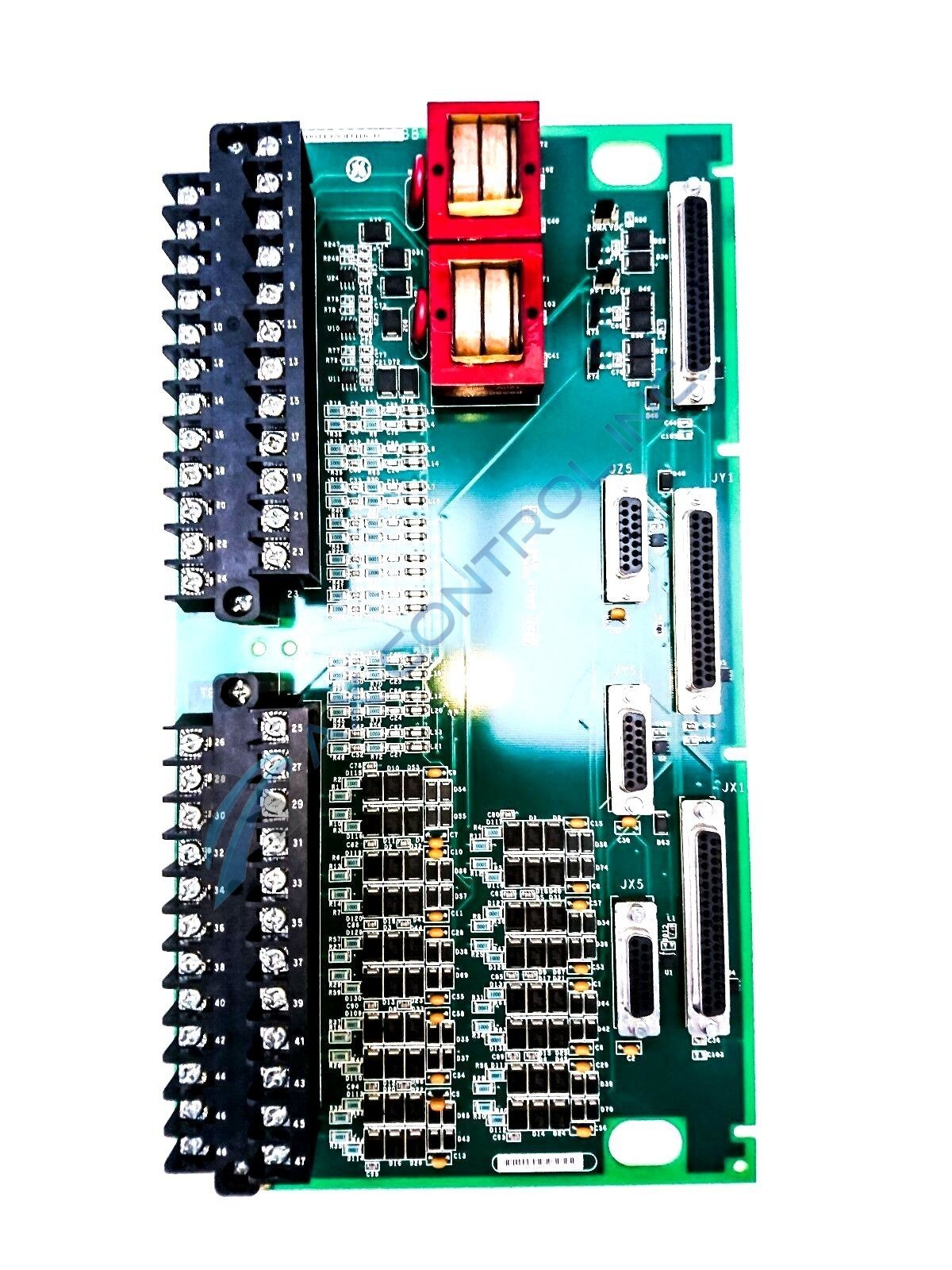

The IS200TPROH1BBB protective termination board is long and rectangular. A wide variety of electronic components from very small to large are featured on the IS200TPROH1BBB. The left edge of the IS200TPROH1BBB is occupied by two (2) very large terminal blocks that are solid black and labeled with white numbers. Each of the terminal blocks contains a collection of silver metallic terminals labeled from one to forty-eight (48). Sitting at the top of the IS200TPROH1BBB is a pair of relays or contactors that are red squares. These relays contain yellow parts on the top. To the left of each of the relays is a MOV or metal oxide varistor that is solid red. Three (3) black variable resistors or potentiometers are grouped together in a vertical line near the upper right corner of the IS200TPROH1BBB. Each of these variable resistors are identified with the letter R. On the bottom of the IS200TPROH1BBB, several small yellow capacitors may be seen. Many of these are paired together near the bottom while others have been placed individually. A line of small silver components is featured on the left half in a vertical row. Many black rectangular parts called diodes have been concentrated mainly at the bottom of the IS200TPROH1BBB.

Repair Services For IS200TPROH1BBB

Type Lead Time Price Action
Repair Service 1-2 weeks $1230

Our highly skilled technicians can repair your IS200TPROH1BBB. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
