About the IS200TREGH1BDB
General Electric or GE created the IS200TREGH1BDB trip emergency termination board. The IS200TREGH1BDB circuit board is one of the components that make up the Mark VI series by GE. The Mark VI is one of the series which make up the Mark family of gas/turbine equipment. These products are used in automating and managing the processes of gas and/or steam turbines.
Hardware Tips and Specifications

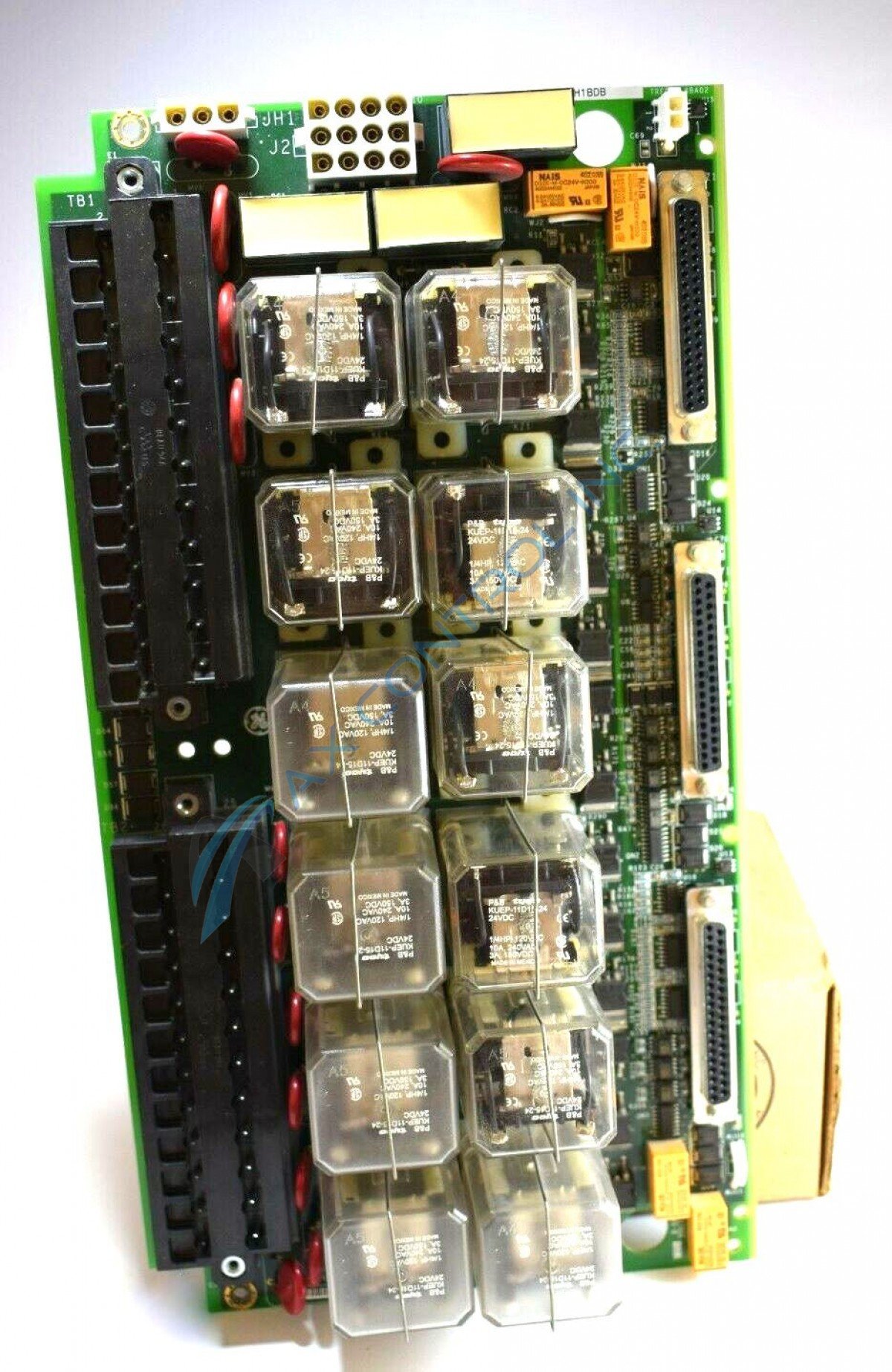

The rectangular IS200TREGH1BDB printed circuit board features two (2) long solid black terminal blocks on its left border. Inside each of these terminal blocks are twenty-four silver metallic terminals. A series of around ten (10) round red components known as MOVs or metal oxide varistors are lined up to the right of these terminal blocks. Most of the space in the middle of the IS200TREGH1BDB is occupied by a collection or large relays or contactors. These relays/contactors have been arranged into two (2) long lines of six (6) components each. The components are positioned in pairs that are parallel to each other from top to bottom. Sitting along the right border of the IS200TREGH1BDB is a group of three (3) jack connector ports. Each port contains a collection of small pin ports. Four (4) large capacitors that are in the shape of rectangles can be found in two (2) different areas on the right side of the IS200TREGH1BDB. These four (4) components are solid yellow. Two (2) are paired together near the upper right corner and the other two (2) are paired together in the corner at the bottom right.
This IS200TREGH1BDB Trip Emergency Termination Board device's greater Mark VI Turbine Control System Series, as it is known at length, is truly not contextualized within very many originally-produced instructional manual materials, despite existing as quite the significant functionality-based upgrade upon the Mark V Turbine Control System Series of a very similar full extended product series title. With this being the case, this IS200TREGH1BDB Trip Emergency Termination Board device's IS200TREGH1BDB Trip Emergency Termination Board functional product number itself can be embraced as a decent functioning source of IS200TREGH1BDB Trip Emergency Termination Board device hardware component and component specification information, as it was specifically designed by GE to code for a series of hardware details through a set collection of functional naming elements. For instance, this IS200TREGH1BDB Trip Emergency Termination Board device's functional product number is kicked off through an iteration of the dual-functional IS200 series tag delegating this IS200TREGH1BDB Trip Emergency Termination Board product's normal Mark VI Series assembly and domestic manufacture location. Some other IS200TREGH1BDB Trip Emergency Termination Board details indicated in this way are its:
- TREG functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series grouping
- Three-fold revision table
