Relay Output with Coil Sensing Model IS200TRLYH1BDC is part of the Mark VI series from General Electric. This model has 12 form-C relays and six fused branches. There are forty-eight barrier terminals on the TRLYH1B model.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200TRLYH1BDC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TRLYH1BDC
  • SKU: IS200TRLYH1BDCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200TRLYH1BDC Technical Specifications

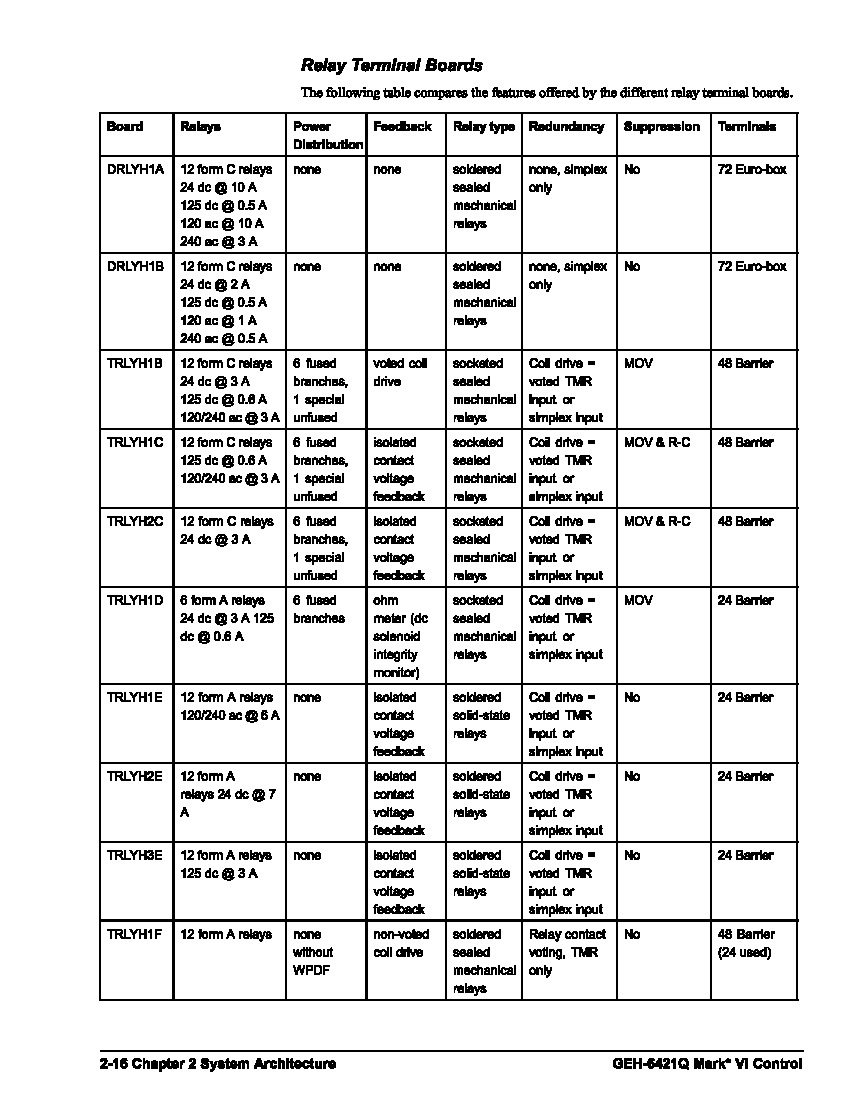

Instruction Manual GEH-6421 or GEH-6721
Part Number IS200TRLYH1BDC
Series Mark VI IS200 Turbine Control System
Manufacturer General Electric Company USA, GE Industrial Systems
Functional Acronym/Abbreviation TRLY
Product Type Terminal Board
Product Description Relay Output with Coil Sensing Terminal Board
Feedback Type Voted Coil Drive
Suppression Metal Oxide Varistors (MOV)

Frequently Asked Questions about IS200TRLYH1BDC

What does the IS200TRLYH1BDC model do?

When the IS200TRLYH1BDC model is mounted in either the Mark VI, Mark VIe, or Mark VIeS cabinets, the model will be used to control several output types and coil sensing. Some of the outputs controlled by this model are drive external solenoids and dry Form-C contact outputs. This model only focuses on outputs and can be configured to the user's specifications.

What are all of the circuits on the IS200TRLYH1BDC model used for?

The first six relay circuits (1-6) are used with external dry solenoids or dry, Form-C contact outputs. Relays seven through eleven are typically unpowered and isolated Form-C contact. The last output circuit on the model is an isolated Form-C contact and is only used with special applications such as with an ignition transformer.

What controls will the IS200TRLYH1BDC model be used with?

The IS200TRLYH1BDC model can be used with all versions of the Mark VIe control IS220PDOA but cannot be used with any of the Mark VIeS Safety Control IS220YDOA models. The model can be used with the Mark VIe control in TMR and Simplex applications.

Product Description

The IS200TRLYH1BDC model is part of the Mark VI series but can be used with the Mark VIe or Mark VIeS series. This board is described by General Electric as a Relay Output with Coil Sensing Termination Board. The IS200TRLYH1BDC model can be used in Simplex and Triple Modular Redundant (TMR) applications. It should be noted that this model can work with an I/O pack depending on the pack used, different amounts are required based on the system the model is used in; for example, when used in TMR systems, there are three I/O packs per network connector on each.

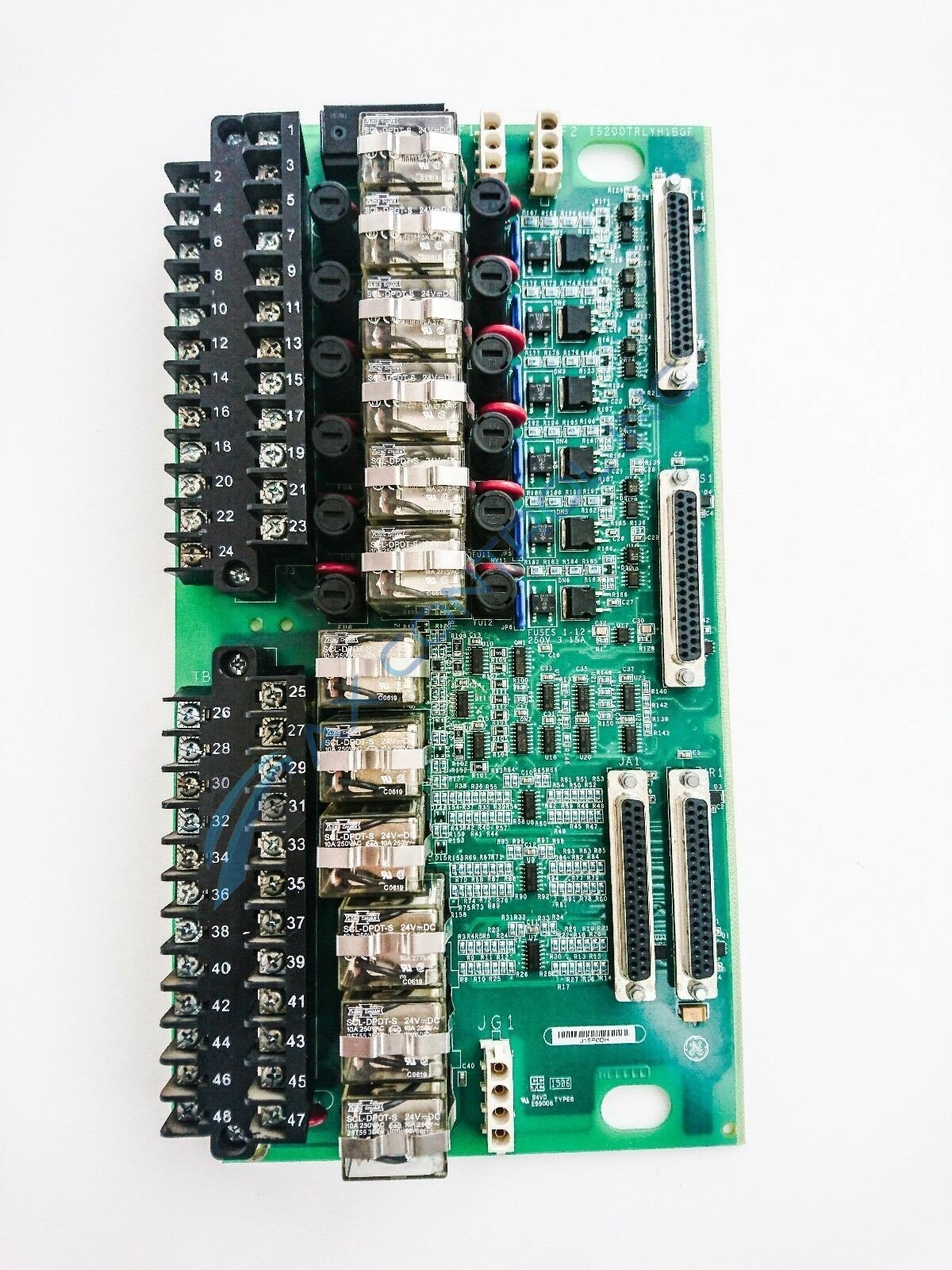

The IS200TRLYH1BDC printed circuit board is a rectangular board with several different electronic components. The far left of the IS200TRLYH1BDC is occupied by two (2) large black terminal blocks. These terminal blocks contain a series of cube-shaped components known as terminals. An additional terminal block, which is smaller than the others, is positioned at the top of the IS200TRLYH1BDC. The terminals blocks are labeled TB1, TB2, and TB3. Many solid black components have been grouped along the center of the IS200TRLYH1BDC. Sitting on either side of these black components is a row of transistors. These transistors alternate with circular red metal oxide varistors. Twelve of these MOVs may be found on the IS200TRLYH1BDC. A potentiometer, also known as a variable resistor, is situated at the bottom of the IS200TRLYH1BDC and is solid white. Four mid-sized connector ports have been placed vertically along the right edge of the IS200TRLYH1BDC. Positioned throughout the IS200TRLYH1BDC is a collection of small components like capacitors, diodes, and resistors.

Reviews For IS200TRLYH1BDC

Internal Review
(4.0)

While there are technically twelve relay output circuits on the IS200TRLYH1BDC model, only six are fused; the remaining six are not fused. As such, if requiring a model in which all of the circuits are fused, it would be best to do more research on the TRLY models and find which would work best for you. - AX Control Tech
