Home GE Boards & Turbine Control Mark VI IS200 IS200TRLYH1C

❮

❯

IS200TRLYH1C

5.00 (3)
Click a star to rate this product

5.00 (3)
Click a star to rate this product

The IS200TRLYH1C model is part of the Mark VI IS200 Turbine Control System manufactured by General Electric. This model is a Relay Output Terminal Board. The TRLY model is most commonly used with the Contact Input/Relay Output VCCC Board.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200TRLYH1C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200TRLYH1C
SKU: IS200TRLYH1CGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200TRLYH1C Technical Specifications

Instruction Manual	GEH-6421C
Part Number	IS200TRLYH1C
Series	Mark VI IS200
Manufacturer	General Electric Company USA, GE Industrial Systems
Model Type	Termination Board
Functional Description	Relay Output Terminal Board
Functional Acronym/Abbreviation	TRLY
Used in Conjunction With	VCCC a.k.a Contact Input/Relay Output Board
Weight	Approximately 3 pounds

Frequently Asked Questions about IS200TRLYH1C

Are there any functional differences between the TRLYH1C and TRLYH1B models?

According to the Mark VI GEH-6421C, the two TRLY models are essentially the same, save for a few enhancements on the TRLYH1C models. The enhancements for the models are high-frequency snubbers installed across the Sol and NO terminals on the solenoid driver circuits and the special circuit, relay contact voltage monitoring is added to the twelve relays, while input relay coil monitoring is removed from the twelve relays, and finally, six jumpers for converting the solenoid outputs to dry contact typing are removed. The jumpers were associated with the fuse monitoring of the TRLY models. The relay contact voltage monitoring has a voltage impression and is isolated by removing their associated jumpers.

What are the contact voltage ranges associated with this model?

There are four different ranges associated with the TRLYH1C model; these are as follows; 190-264 V rms at 47-63 Hz with a nominal 230 V rms, 70-145 VDC at a nominal 125 VDC, 90-132 V rms at 47-63 Hz at a nominal 115 V rms, and 16-32 VDC at a nominal 24 VDC.

Product Description

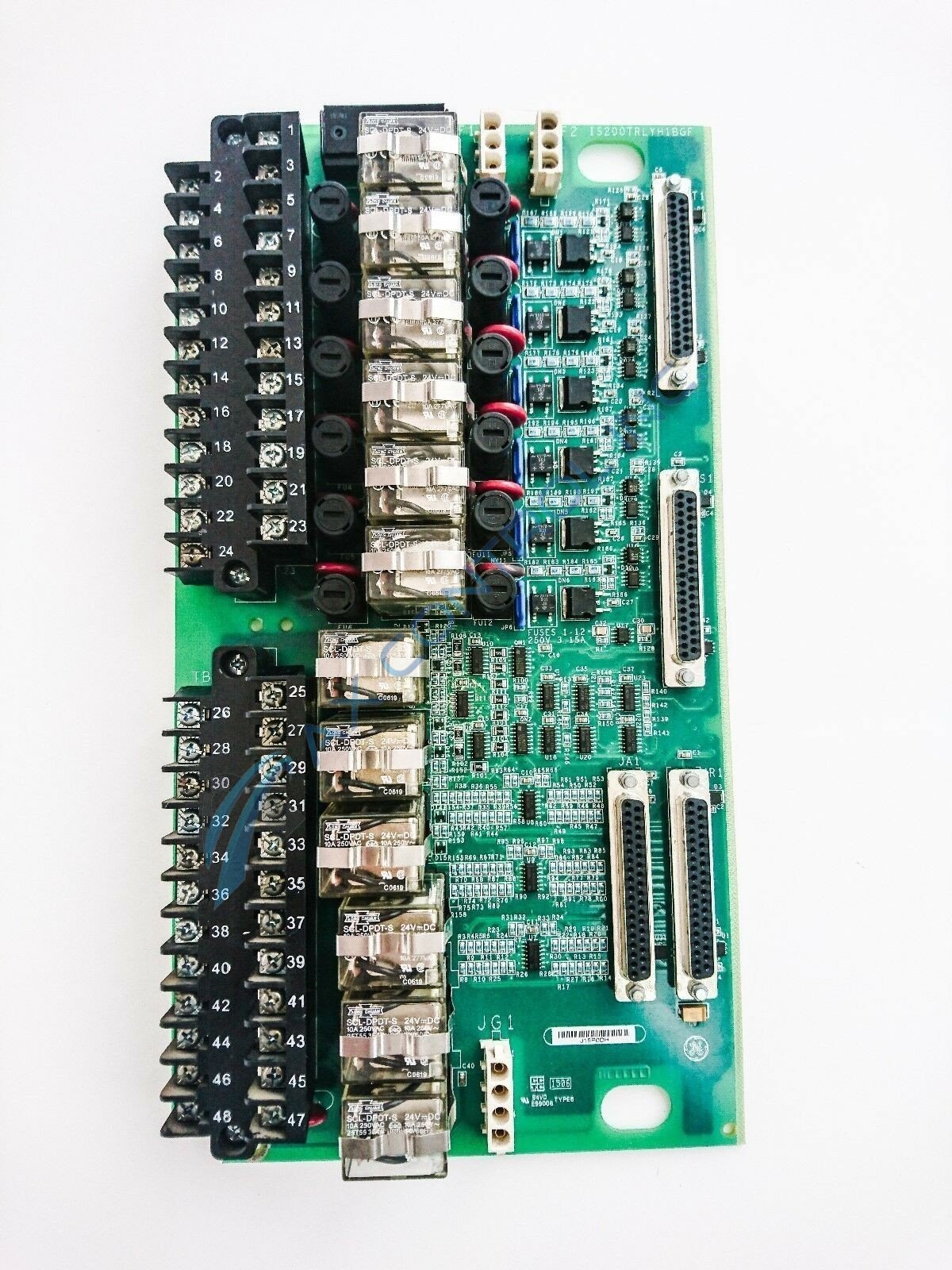

The IS200TRLYH1C is a Relay Output terminal board with Contact Sensing. The board has twelve plug-in magnetic relays, which fall into three distinct categories:

Relays one through six are Form-C contact outputs. These drive external solenoids
Relays seven through eleven are also Form-C contacts. However, these are unpowered.
Relay twelve is an isolated Form-C contact with a non-fused power supply. This relay is used for ignition transformers.

The IS200TRLYH1C is built with four female cable connectors. These connectors are labeled JA1/JR1/JS1/JT1. Connectors are used to connect to the VCCC or VCRC board, which are also known as Contact Input/Relay Output Boards. When the TRLY model is used with the VCCC board, two are required to come up with a total of 24 relays. There are four female plug connectors on the board for the connection of solenoid power. The board has twelve fuses placed on the board in two lines of six. The board also has MOVs (metal oxide varistors) to aid with surge suppression.

The IS200TRLYH1C is notched in two corners. The board has several factory-made drill marks located at several locations within the body of the board. Other components on the board surface include resistors, diodes, and jumper switches.

The TRLY model can be used in two systems, Triple Modular Redundant (TMR) or Simplex. When the model is being used in a Simplex system the cable will carry all of the associated control signals, as well as monitor feedback voltages between the TRLY model and the VCCC board through the JA1 connection. For more information on the operation of the VCCC and TRLY models, refer to the attached manual.

Reviews For IS200TRLYH1C

Internal Review

(4.0)

The biggest downside of the IS200TRLYH1C model is the lack of availability. Usually, with a lack of availability comes a lack of information, but thankfully information on this model can be easily found within the Mark VI manuals. While the model is difficult to find, AX Control does its best to keep the model in-stock, and if not in stock, the sales department does its very best to locate the model for you. - AX Control Tech

Repair Services For IS200TRLYH1C

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$812

Our highly skilled technicians can repair your IS200TRLYH1C. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
