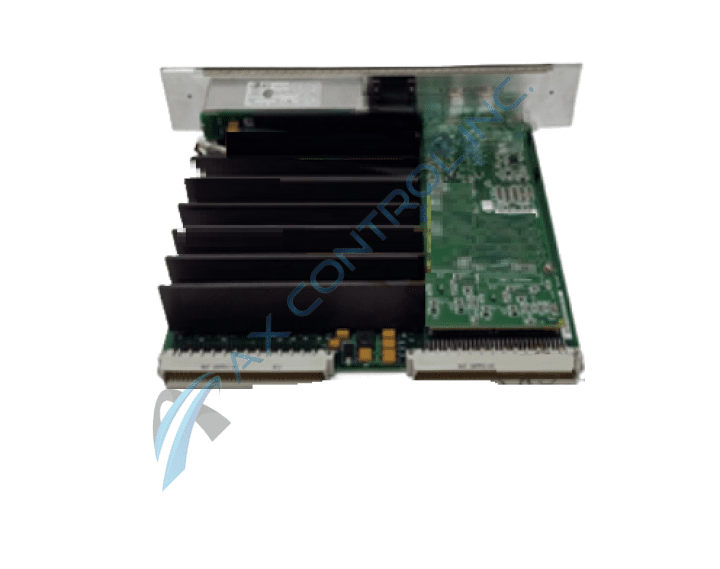

TERMINATION BD RELAY OUT GE MARK VI | Image
3 year warranty

TERMINATION BD RELAY OUT GE MARK VI | Image
TERMINATION BD RELAY OUT GE MARK VI - Wiring Diagram Image

IS200TRLYH2C

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The IS200TRLYH2C is a GE Mark VI printed circuit board

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS200TRLYH2C to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TRLYH2C
  • SKU: IS200TRLYH2CGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200TRLYH2C Technical Specifications

Instruction Manual GEH-6421
Manufacturer GE Energy
Series Mark VI Control System
Part Number IS200TRLYH2C
Product Type Relay Terminal Board
Relays 12 Form C Relays (24DC @ 3A)
Power Distribution 6 Fused Branches, 1 Special Unfused
Feedback Isolated Contact Voltage Feedback
Relay Type Socketed Sealed Mechanical Relays
Redundancy Coil Drive = Voted TMR Input or Simplex Input
Suppression MOV & R-C
Terminals 48 Barrier

Product Description

The IS200TRLYH2C is a GE printed circuit board manufactured as part of the Mark VI system.  The MKVI is a flexible management system designed to maintain gas and steam turbine systems.  The MKVI includes an HMI/operator interface built from a PC based workstation running on an MS Windows platform.  The HMI provides dynamic graphics and alarm display, as well as process variable trending and point control display.   The system uses GE’s Control System Toolbox to allow for online software maintenance, including live data block flow diagrams, online code change and help files, as well as I/O configuration and monitoring.

The IS200TRLYH2C is a Relay Output terminal board with contact sensing.  This version of the relay output board is the same as the standard TRLYH1B board, with the following exceptions:

  • Jumpers for converting solenoid outputs to dry contacts (six in total) have been removed.

  • There is no input relay coil monitoring on the twelve relays. However,

  • Relay contact voltage monitoring has been added to each of the twelve relays.  Each of these monitoring circuits can be isolated by removing their associated jumper switch.

  • Circuits 1-6 (solenoid driver circuits) and 12 (output) have high-frequency snubbers installed across their NO and SOL terminals.

The  IS200TRLYH2C has twelve plug-in magnetic relays.  The board has two terminal blocks located next to the relays.  These can accept twelve two-wire inputs each. Terminal blocks are designed to unplug from the board when needed for maintenance.   The IS200TRLYH2C has a shield bar installed to the left of the terminal blocks.

Other components on the  IS200TRLYH2C include fuses, metal oxide varistors, resistors, capacitors, and jumpers.  The board has four female cable connectors (JA1, JR1, JS1 and JT1,) and four female plug connectors.

Reviews For IS200TRLYH2C

Internal Review
(4.0)

The IS200TRLYH2C Relay Terminal Board is a multi-faceted turbine board that features both MOV and R-C suppression while other similar TRLY boards do not include either. The biggest downside of the IS200TRLYH2C is the lack of aftermarket availability that makes acquiring replacements extremely prohibitive. As a result, we can only give the IS200TRLYH2C 4 Stars. - AX Control Lead Technician
